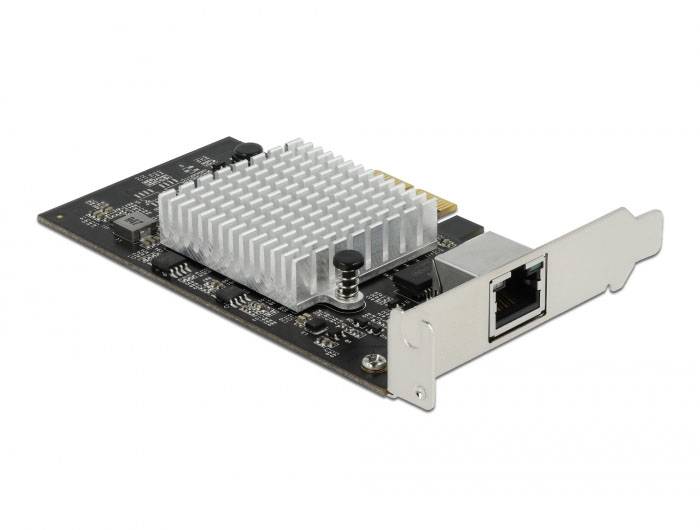

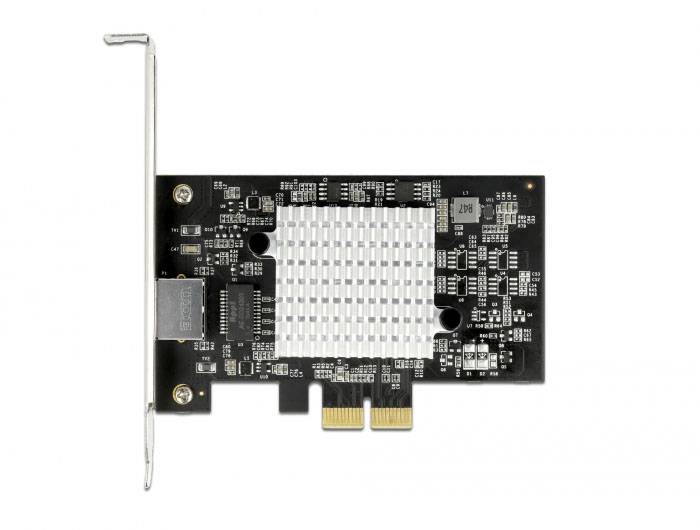

Delock 89528 PCI Express kaart RJ45 PCIe

Description This PCI Express card by Delock offers a network port with a data transfer rate up to 10 Gbps over conventional Cat.6 or Cat.6A copper cables. With the NBASE-T technology additional speeds of 2.5 Gbps and 5 Gbps are available. This allows higher transmission rates than 1 Gbps, when a 10 Gbps connection is not possible with the existing cable. Specification • Connectors:
external: 1 x 10 Gigabit LAN RJ45 jack
internal: 1 x PCI Express x2, V3.0
• Chipset: Marvell AQC113CS
• Data transfer rate:
Ethernet up to 10 Mbps
Fast Ethernet up to 100 Mbps
Gigabit Ethernet up to 1 Gbps
NBASE-T with up to 2.5 Gbps and 5 Gbps
10 Gigabit Ethernet up to 10 Gbps
PCI Express x2 up to 16 Gbps
• Supports IEEE 802.3az (Energy Efficient Ethernet)
• Supports 16k Jumbo Frames
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports PXE
• LED indicator for link and activity System requirements • Linux Kernel 3.10 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x2 / x4 / x8 / x16 / x32 slot Package content • PCI Express card
• Low profile bracket
• Driver CD
• User manual
