Delock 90161 PCI Express kaart DisplayPort, USB-C PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal (€ 86,77 / Stuk)
€ 86,77
excl. btw
& Inclusief 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal USB-poorten 3.1
2 x
- Aantal USB-poorten 3.1 extern
2 x
- Chipset
ASMedia
- Aansluitingen (uitgang)
DisplayPort
USB-C
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Aantal USB 3.1
2 x
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Aantal per verpakking
1 Stück(e)
- Intern
Ja
- Gebruikershandleiding
Ja
Documenten en downloads
Datablad
Datablad 3380153 Delock 90161 PCI Express kaart DisplayPort, USB-C PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3380153 Delock 90161 PCI Express kaart DisplayPort, USB-C PCIe
Omschrijving

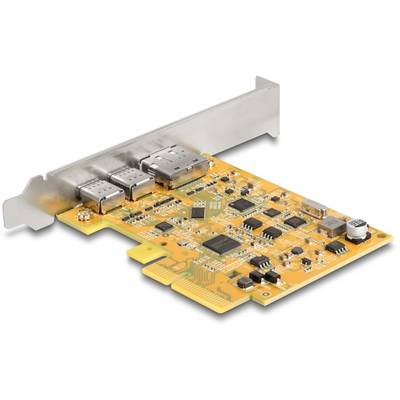

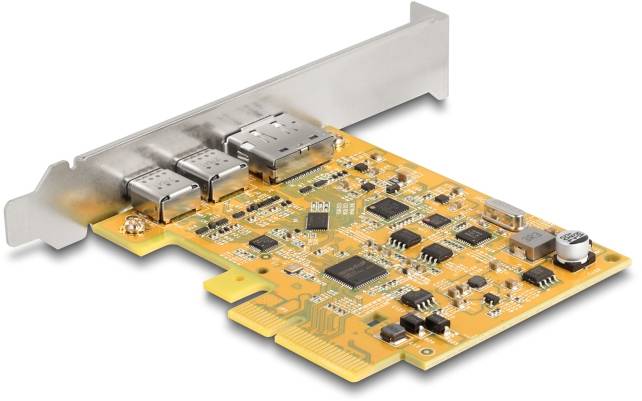

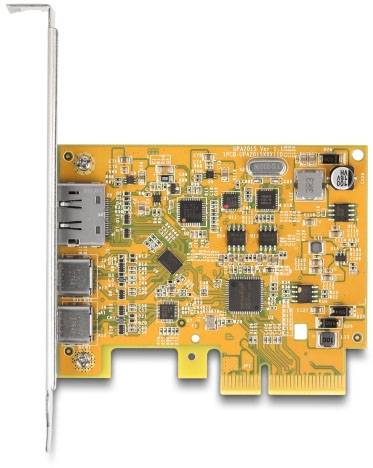

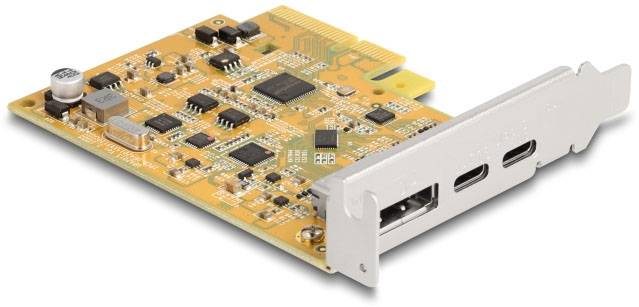

Description This PCI Express card by Delock expands the PC by two external USB-C™ ports. Different USB devices such as USB flash memory, card reader, external enclosure etc. can be connected.
Video output at USB-C™ port
By using the included cable, the DisplayPort connector of the PCI Express card can be connected to a DisplayPort output of a graphics card on the motherboard. Therefore one USB-C™ port will be DP Alt Mode capable. A monitor can be connected to this port in order to transmit video and audio signals. The maximum resolution of the output depends on the input signal. Specification • Connectors:
external:
1 x USB 10 Gbps USB Type-C™ female
1 x USB 10 Gbps USB Type-C™ female (DP Alt Mode capable)
1 x DisplayPort female (for DP Alt Mode function)
internal:
1 x PCI Express x4 (2-Lane), V3.0
• Chipset: Asmedia ASM3142
• Data transfer rate up to 10 Gbps
• Resolution up to 7680 x 4320 @ 60 Hz (depending on the system and the connected hardware)
• Power supply via PCI Express interface
• Electrical power per port: max. 7.5 watt (5 V / 1.5 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1 System requirements • Linux Kernel 5.15 or above
• Windows 10/10-64/11
• PC with one free PCI Express x4 / x8 / x16 / x32 slot
• Graphics card with DisplayPort output (to support DP Alt Mode) Package content • PCI Express card

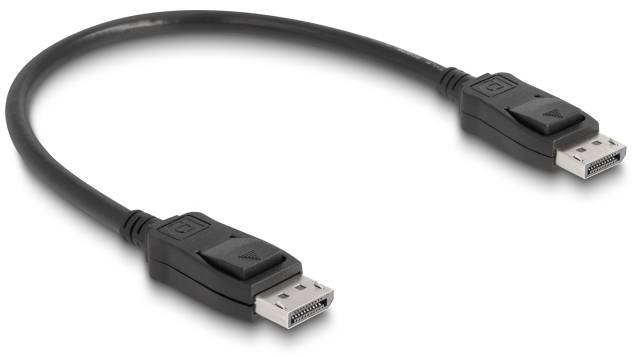

• DisplayPort cable, length ca. 35 cm
• Low profile bracket
• User manual
