Delock 89041 PCI Express kaart USB-A 3.2 Gen 2 PCIe

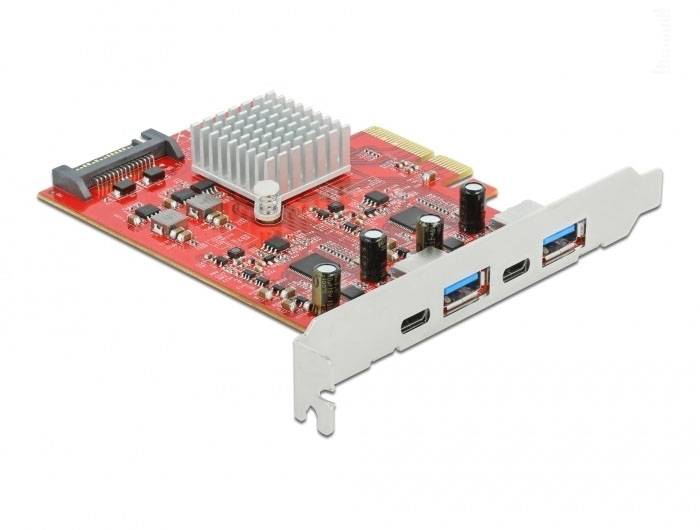

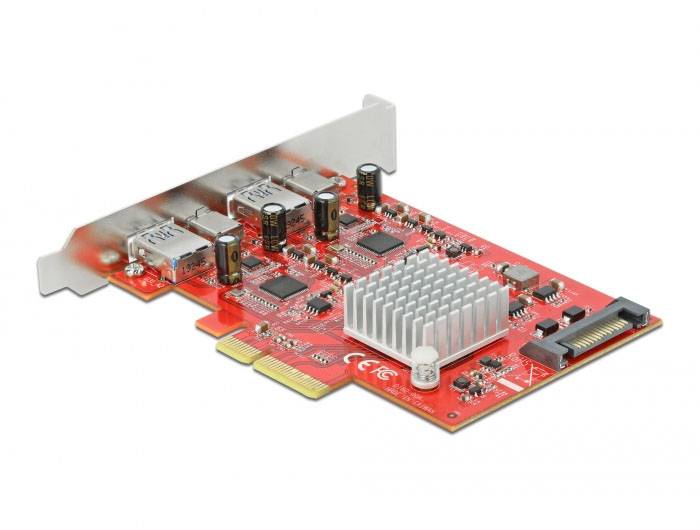

Description The PCI Express card by Delock expands the PC by four external USB 3.2 ports, two USB-C™ and two USB Type-A ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card. The card allows a data transfer rate of 10 Gbps on all ports when used simultaneously.

Dual channel

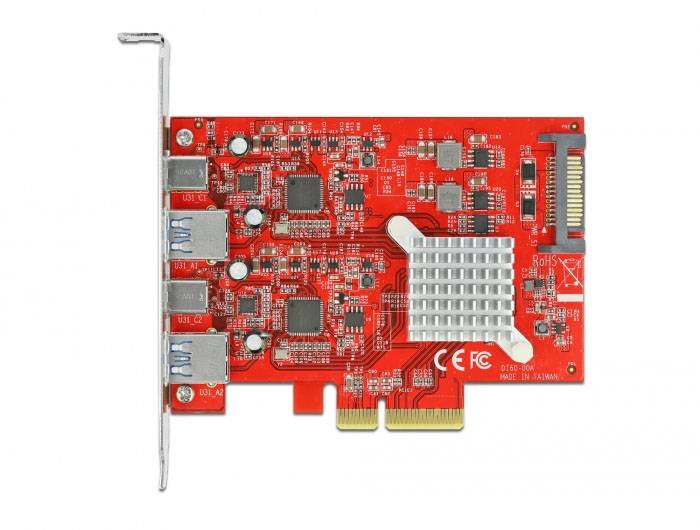

The card has two ASM3142 chipsets each for one USB Type-A and one USB Type-C™ connector. This ensures the high data transfer rate of 10 Gbps on all ports when used at the same time.

Power supply
The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a SATA power connector. At the USB Type-C™ ports the maximum output is 5 V / 3 A and at the Type-A ports 5 V / 2 A, all ports together have an output of maximum 10 A. Specification • Connectors:
external:
2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) Type-A female
2 x SuperSpeed USB 10 Gbps (USB 3.2 Gen 2) USB Type-C™ female
internal:
1 x SATA 15 pin power connector
1 x PCI Express x4, V3.0
• Chipset: Asmedia ASM3142, ASM1543, ASM2806
• Data transfer rate up to:
SuperSpeed USB 10 Gbps,
SuperSpeed USB 5 Gbps,
Hi-Speed 480 Mbps,
Full-Speed 12 Mbps,
Low-Speed 1.5 Mbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via SATA 15 pin power connector
• Electrical power per port:
USB Type-A: max. 10 watt (5 V / 2 A)
USB Type-C™: max. 15 watt (5 V / 3 A)
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Bootable System requirements • Linux Kernel 4.6 or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • PCI Express card SuperSpeed USB 10 Gbps
• User manual
