Delock 47235 HDD-wisselframe SAS, SATA
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
6 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 244,03
excl. btw
& Gratis verzending*
Slechts 6 Stuk(s) beschikbaar
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
Ons aanbod
Gratis verzending*
€ 219,01
excl. btw
Delock 5.25″ Mobile Rack for 4 x 2.5″ U.2 NVMe SSD with lockable Trays
Technische specificaties
- Soortnaam
HDD-wisselframe
- Interfaces
SAS
SATA
- Materiaal
Aluminium
- Afm.
(b x h x d) 139 x 42 x 146 mm
- Aantal 2,5" slots
4
- Gewicht
0.90
- Breedte
139 mm
- Hoogte
42 mm
- Diepte
146 mm
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Zwart
- Kabeltoepassing
Apparaat (koud)
- Overdrachtssnelheid
32 Gbit/s
- UKCA
Ja
- Sleutelsleuf
Ja
- Aantal schroeven
24
- Inclusief schroeven
Ja
- Bedrijfstemperatuur (T-T)
0 - 55 °C
- Maat
13,3 cm (5.25")
- Aantal ondersteunde SSD's
4
- Aantal per verpakking
1 Stück(e)
- Aantal SATA-aansluitingen
1
- Aantal sleutels inbegrepen
2 Stück(e)
- Gebruikershandleiding
Ja
- Relatieve vochtigheid in bedrijf (V-V)
5 - 65 %
- Temperatuur bij opslag
-20 - 55 °C
Documenten en downloads
Datablad
Datablad 3379537 Delock 47235 HDD-wisselframe SAS, SATA
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379537 Delock 47235 HDD-wisselframe SAS, SATA
Omschrijving

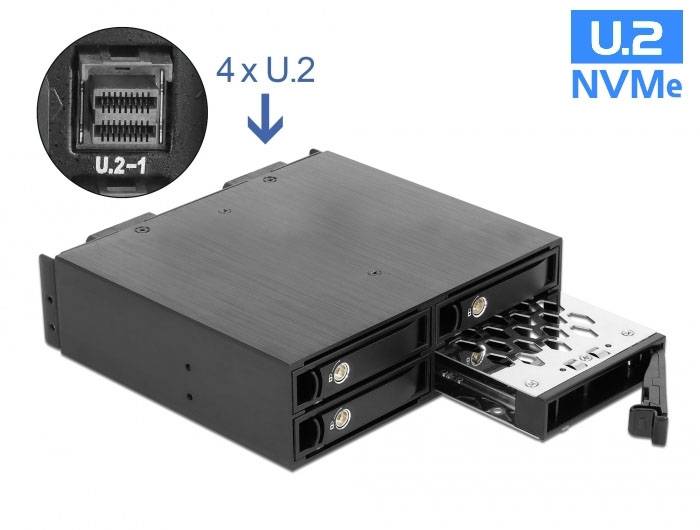

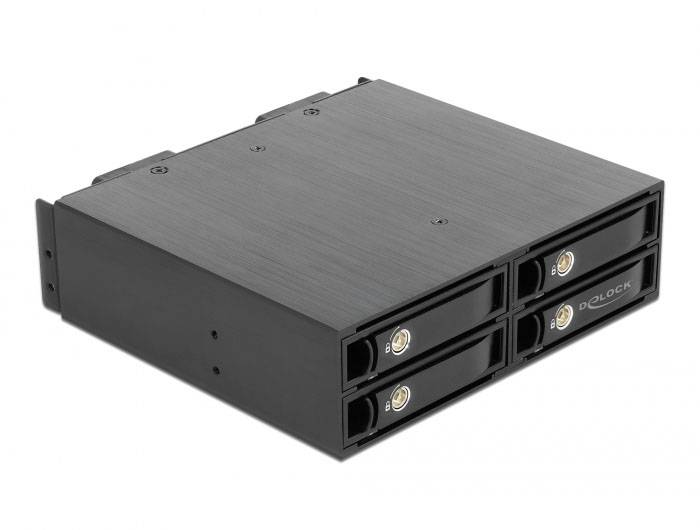

Description This solid metal mobile rack by Delock can be installed into a free 5.25″ bay of a PC, IPC or server enclosure and enables the operation of up to four 2.5″ U.2 SSD. To ensure the maximum speed at each port, each slot has its own SFF-8643 connector.

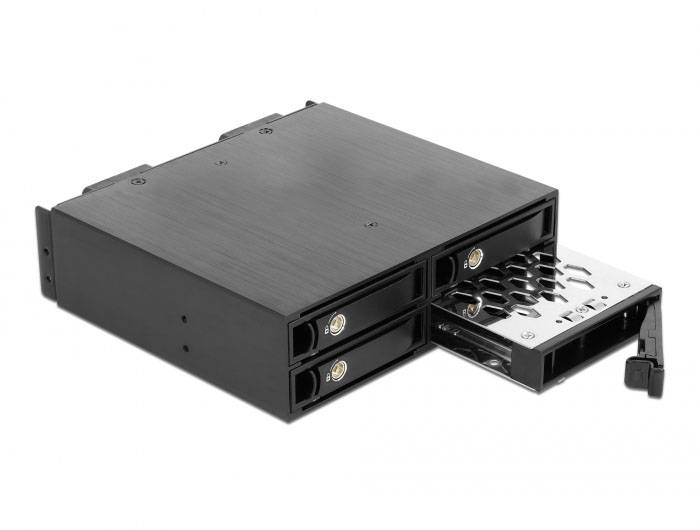

Quick change of SSD
Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
Protection against theft

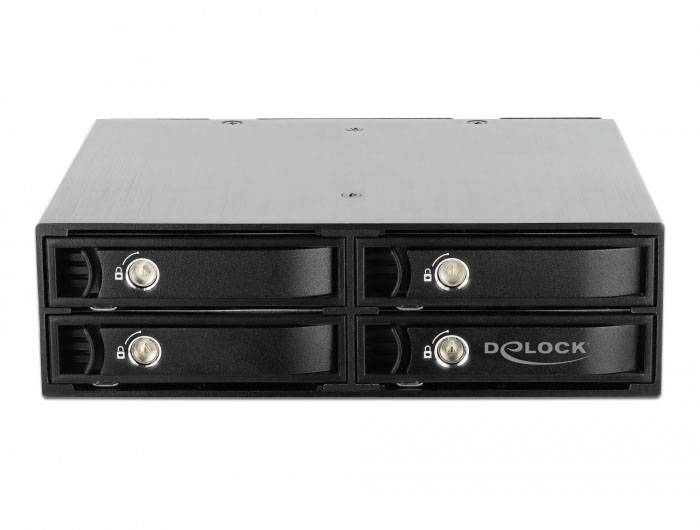

Each of the four removable frames is provided with a separate lock. Thus, the hard disks and data can be protected against theft and misuse.
Good cooling

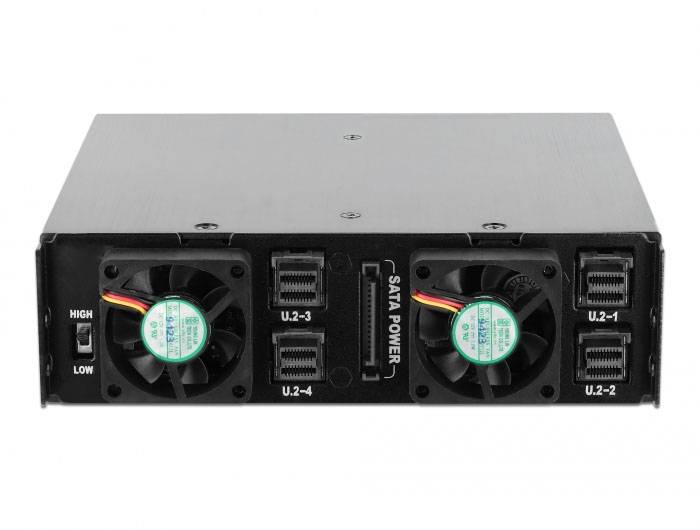

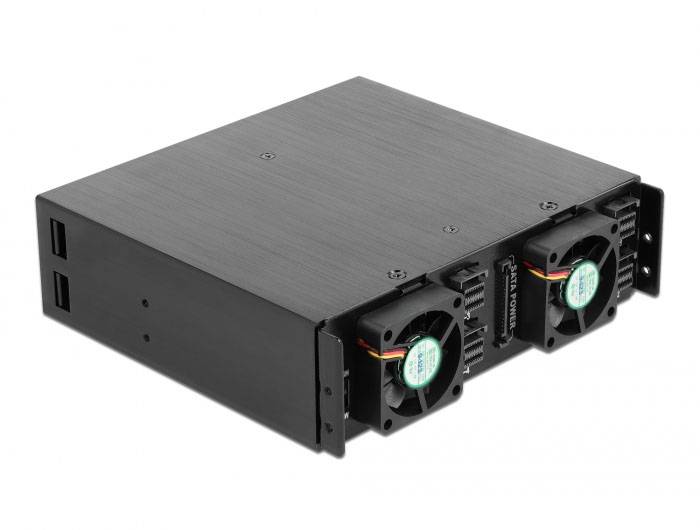

In operation, two 35 mm rear fans ensure an efficient and effective airflow to cool all 4 slots. The fans can optionally be set to low or high speed to ensure optimal cooling. Specification • Connectors:
internal: 4 x SFF-8639 female
external:
4 x Mini SAS HD SFF-8643 female
1 x SATA 15 pin power connector
• Suitable for 2.5″ U.2 NVMe SSD:
SSD height up to 15 mm
• Compatible to PCI Express V4.0
• Mobile rack with key lock for each bay
• 4 x LED indicator for power and access
• Robust aluminum housing
• 2 x fan 35 x 35 mm at the back side
• Fan speed control in two steps
• Key lock
• Bootable
• Operating temperature: 0 °C ~ 55 °C
• Storage temperature: -20 °C ~ 55 °C
• Relative humidity: 5 - 65 % (non condensing)
• Dimensions (LxWxH): ca. 146 x 139 x 42 mm System requirements • Linux Kernel 5.1 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• A free 5.25″ bay
• Up to four free U.2 ports
• Power supply with a free SATA power connector Package content • 5.25″ mobile rack

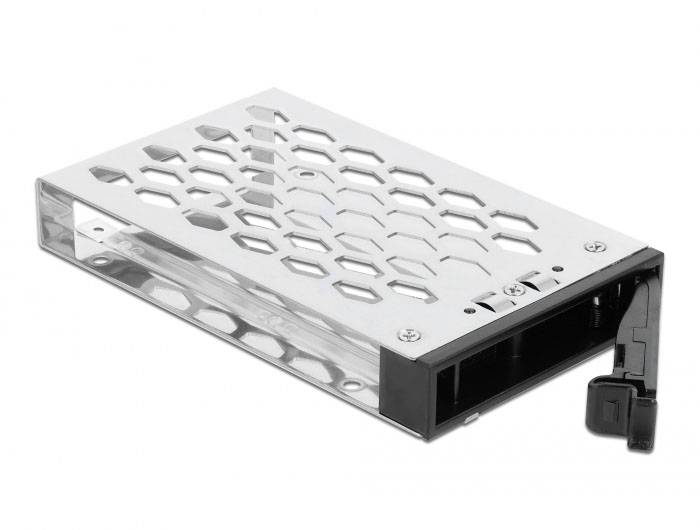

• 4 x 2.5″ mobile rack inner tray

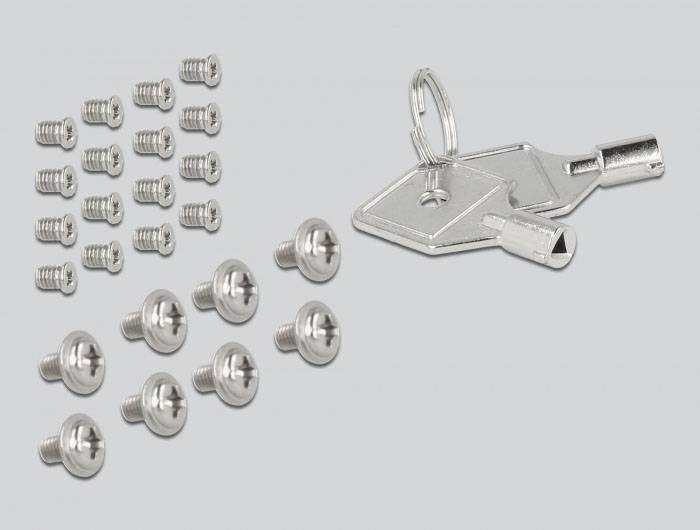

• 2 x keys
• 8 x rack screws
• 16 x hard drive screws
• User manual
Quick change of SSD
Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
Protection against theft
Each of the four removable frames is provided with a separate lock. Thus, the hard disks and data can be protected against theft and misuse.
Good cooling
In operation, two 35 mm rear fans ensure an efficient and effective airflow to cool all 4 slots. The fans can optionally be set to low or high speed to ensure optimal cooling. Specification • Connectors:
internal: 4 x SFF-8639 female
external:
4 x Mini SAS HD SFF-8643 female
1 x SATA 15 pin power connector
• Suitable for 2.5″ U.2 NVMe SSD:
SSD height up to 15 mm
• Compatible to PCI Express V4.0
• Mobile rack with key lock for each bay
• 4 x LED indicator for power and access
• Robust aluminum housing
• 2 x fan 35 x 35 mm at the back side
• Fan speed control in two steps
• Key lock
• Bootable
• Operating temperature: 0 °C ~ 55 °C
• Storage temperature: -20 °C ~ 55 °C
• Relative humidity: 5 - 65 % (non condensing)
• Dimensions (LxWxH): ca. 146 x 139 x 42 mm System requirements • Linux Kernel 5.1 or above
• Windows 8.1/8.1-64/10/10-64
• Windows Server 2016
• A free 5.25″ bay
• Up to four free U.2 ports
• Power supply with a free SATA power connector Package content • 5.25″ mobile rack
• 4 x 2.5″ mobile rack inner tray
• 2 x keys
• 8 x rack screws
• 16 x hard drive screws
• User manual
