Delock 47111 HDD-wisselframe M.2, PCI, PCI-Express

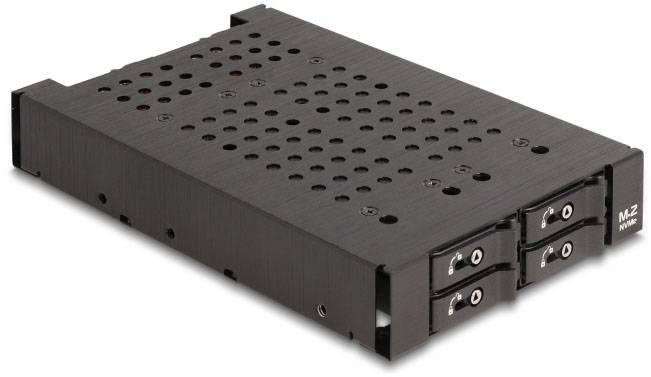

Description This solid metal mobile rack by Delock can be installed into a 3.5″ bay of a PC and provides four M.2 slots in 2280, 2260, 2242 or 2230 format.

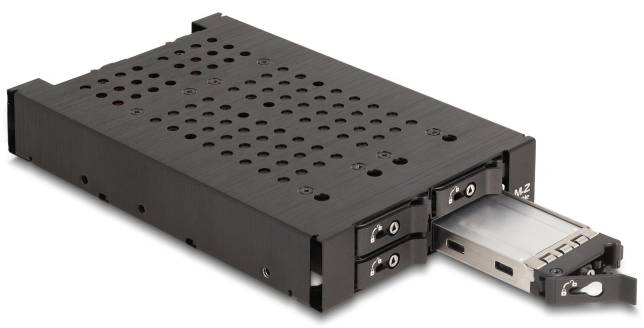

Quick change of SSD
Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.


The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations and therefore support its use in mobile devices.

Note
Special care must be taken that the tray is fully inserted, otherwise no connection to the SSD can be established. Specification • Connectors:
Mobile Rack:
internal:
4 x M.2 key M slot
external:

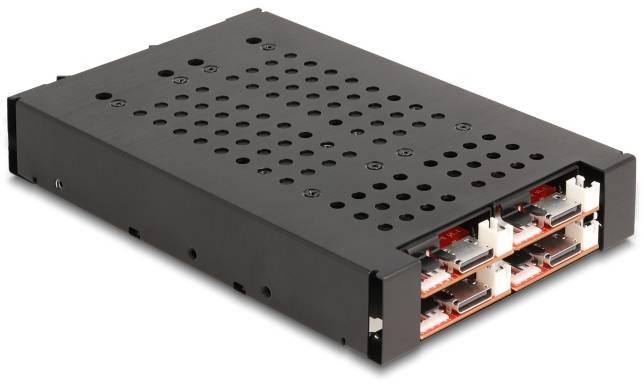

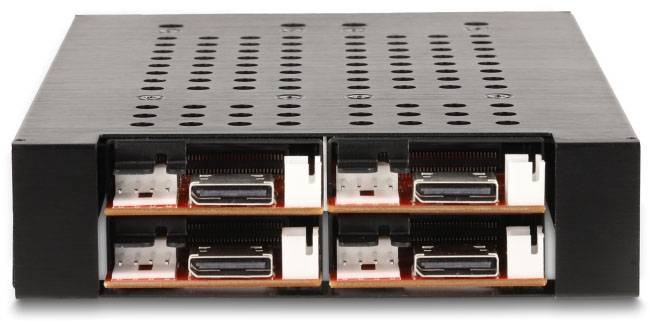

4 x OCuLink SFF-8612 female
4 x 4 pin Floppy male
4 x 2 pin pin header for fan
M.2 tray:
1 x M.2 key M male
1 x M.2 key M slot
• Compatible to PCI Express V4.0
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• 4 x LED indicator
• Bootable, ex UEFI version 2.3.1
• M.2 tray made of metal
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.

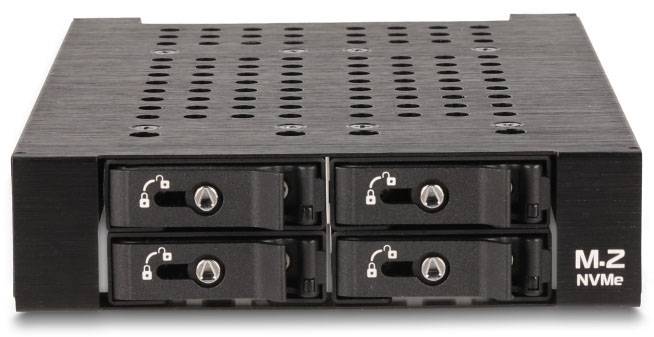

• Key lock
• Dimensions (LxWxH): ca. 159 x 100 x 25 mm System requirements • Linux Kernel 6.2 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free 3.5″ bay
• A free OCuLink port for each M.2 slot
• Power supply with a free SATA power connector Package content • 3.5″ Mobile Rack with 4 x M.2 tray

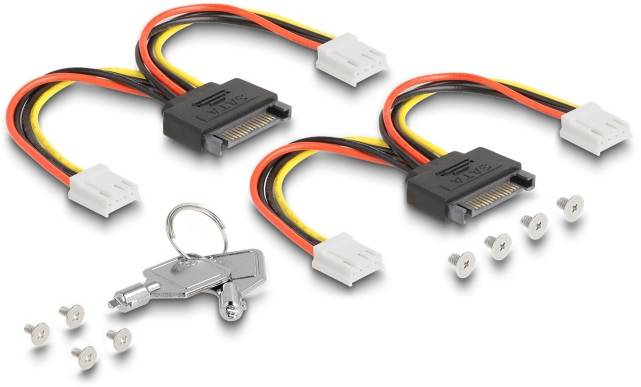

• 2 x cable SATA 15 pin to 2 x 4 pin Floppy female, length ca. 12 cm
• 2 x keys
• 4 x screw I 6.0 x 5.0 mm, head 8.0 mm
• 4 x screw IM 2.0 x 4.0 mm, head 5.0 mm
• User manual
