Delock 47028 HDD-wisselframe PCI
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal (€ 61,15 / Stuk)
€ 61,15
excl. btw
& Gratis verzending met
Incl. 14 dagen retourrecht (30 dagen met)
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Delock Mobile Rack PCI Express Card for 1 x M.2 NMVe SSD - Low Profile Form Factor
Highlights & Details
Technische specificaties
- Soortnaam
HDD-wisselframe
- Interfaces
PCI
- Gewicht
0.217
- Model
Rond
- Kabellengte
0 cm
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Zwart
- Aansluiting A
PCIe
- Toetsenbordlayout
QWERTZ, Duits
- Kabeltoepassing
Apparaat (koud)
- Koeling
Passief
- UKCA
Ja
- Bedrijfstemperatuur (T-T)
-40 - 85 °C
- Aantal per verpakking
1 Stück(e)
- Aantal M.2 (M) slots
2
- Intern
Ja
- NVMe
Ja
- Gebruikershandleiding
Ja
- S.M.A.R.T. support
Ja
- Montagebeugels meegeleverd
Ja
Documenten en downloads
Datablad
Datablad 3379533 Delock 47028 HDD-wisselframe PCI
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379533 Delock 47028 HDD-wisselframe PCI
Omschrijving

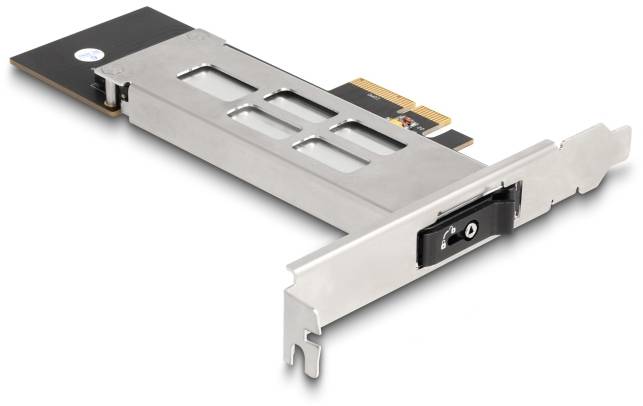

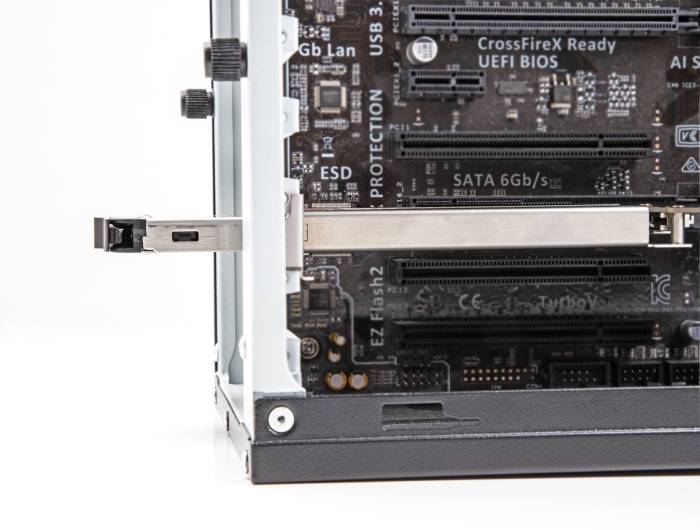

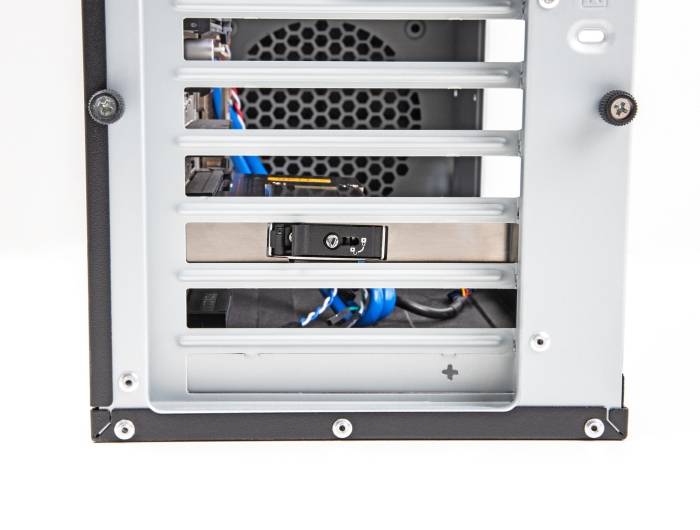

Description This mobile rack by Delock can be installed into a free PC slot of the computer and provides an M.2 slot in 2280, 2260, 2242 or 2230 format.
Quick change of SSD

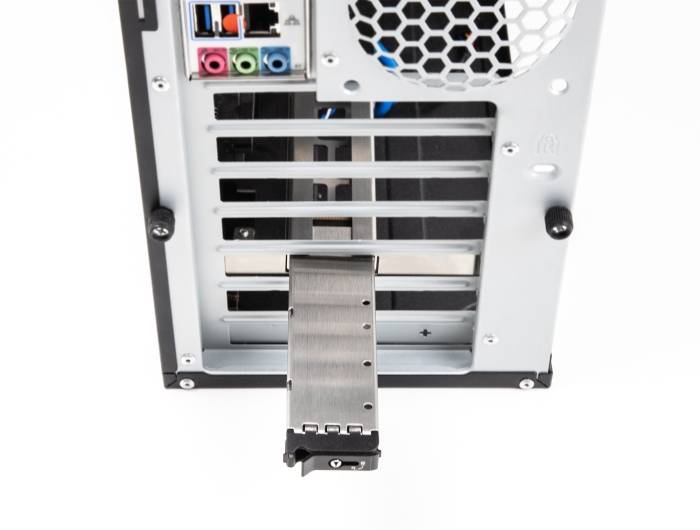

Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations.
Note
Special care must be taken that the tray is fully inserted, otherwise no connection to the SSD can be established. Specification • Connectors:

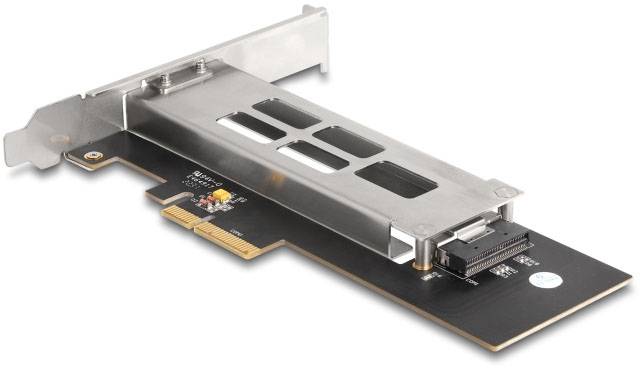

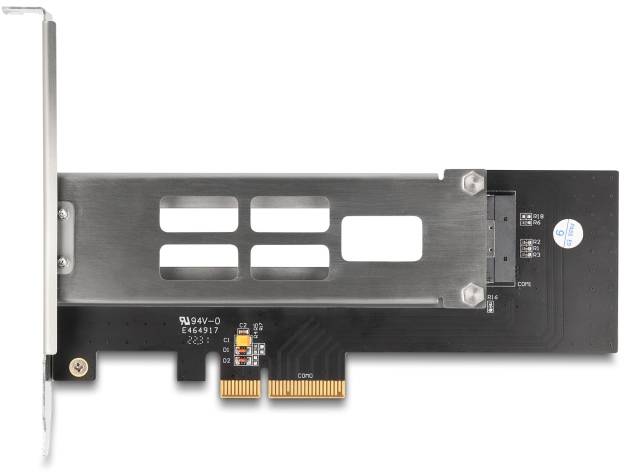

PCIe card:
1 x PCI Express x4, V4.0
1 x M.2 key M slot

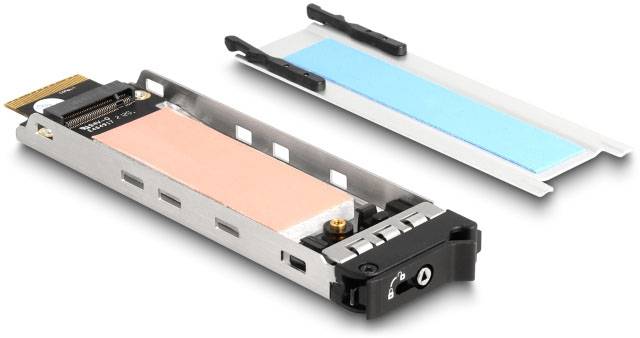

M.2 tray:
1 x M.2 key M male
1 x M.2 key M slot
• Interface: PCIe / NVMe
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on PCIe
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• 1 x LED indicator
• Bootable, ex UEFI version 2.3.1
• M.2 tray made of metal
• Supports NVM Express (NVMe)
• Supports S.M.A.R.T.
• Operating temperature: -40 °C ~ 85 °C System requirements • Linux Kernel 5.15 or above
• Windows 10/10-64/11
• Windows Server 2022
• PC with one free PCI Express x4 / x8 / x16 / x32 slot Package content • Mobile Rack
• M.2 tray

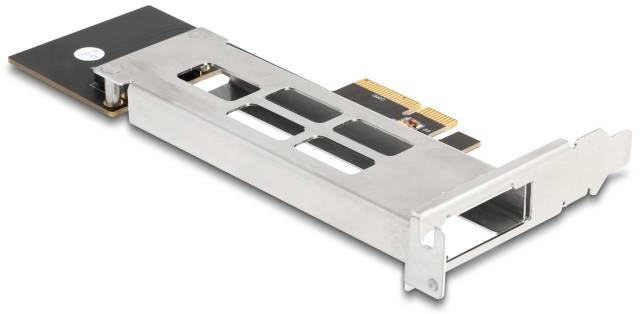

• Low profile bracket
• Heat sink
• Screws
• 2 x keys
• User manual
