Delock 47011 HDD-wisselframe SATA
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
6 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 229,51
excl. btw
& Gratis verzending*
Slechts 6 Stuk(s) beschikbaar
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
Ons aanbod
Gratis verzending*
€ 206,60
excl. btw
Delock Slim Bay Mobile Rack for 2 x 2.5″ U.2 NVMe SSD with 5.25″ frame
Technische specificaties
- Soortnaam
HDD-wisselframe
- Interfaces
SATA
- Materiaal
Metaal
- Afm.
(b x h x d) 140 x 42 x 145 mm
- Aantal 2,5" slots
2
- Gewicht
0
- Breedte
140 mm
- Hoogte
42 mm
- Diepte
145 mm
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Zwart
- Kabeltoepassing
Apparaat (koud)
- Overdrachtssnelheid
32 Gbit/s
- UKCA
Ja
- Sleutelsleuf
Ja
- Aantal schroeven
12
- Inclusief schroeven
Ja
- Maat
2x 2,5"
- Aantal ondersteunde SSD's
2
- Aantal externe SATA-poorten
1
- Aantal per verpakking
1 Stück(e)
- Aantal sleutels inbegrepen
2 Stück(e)
- Gebruikershandleiding
Ja
Documenten en downloads
Datablad
Datablad 3379531 Delock 47011 HDD-wisselframe SATA
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379531 Delock 47011 HDD-wisselframe SATA
Omschrijving

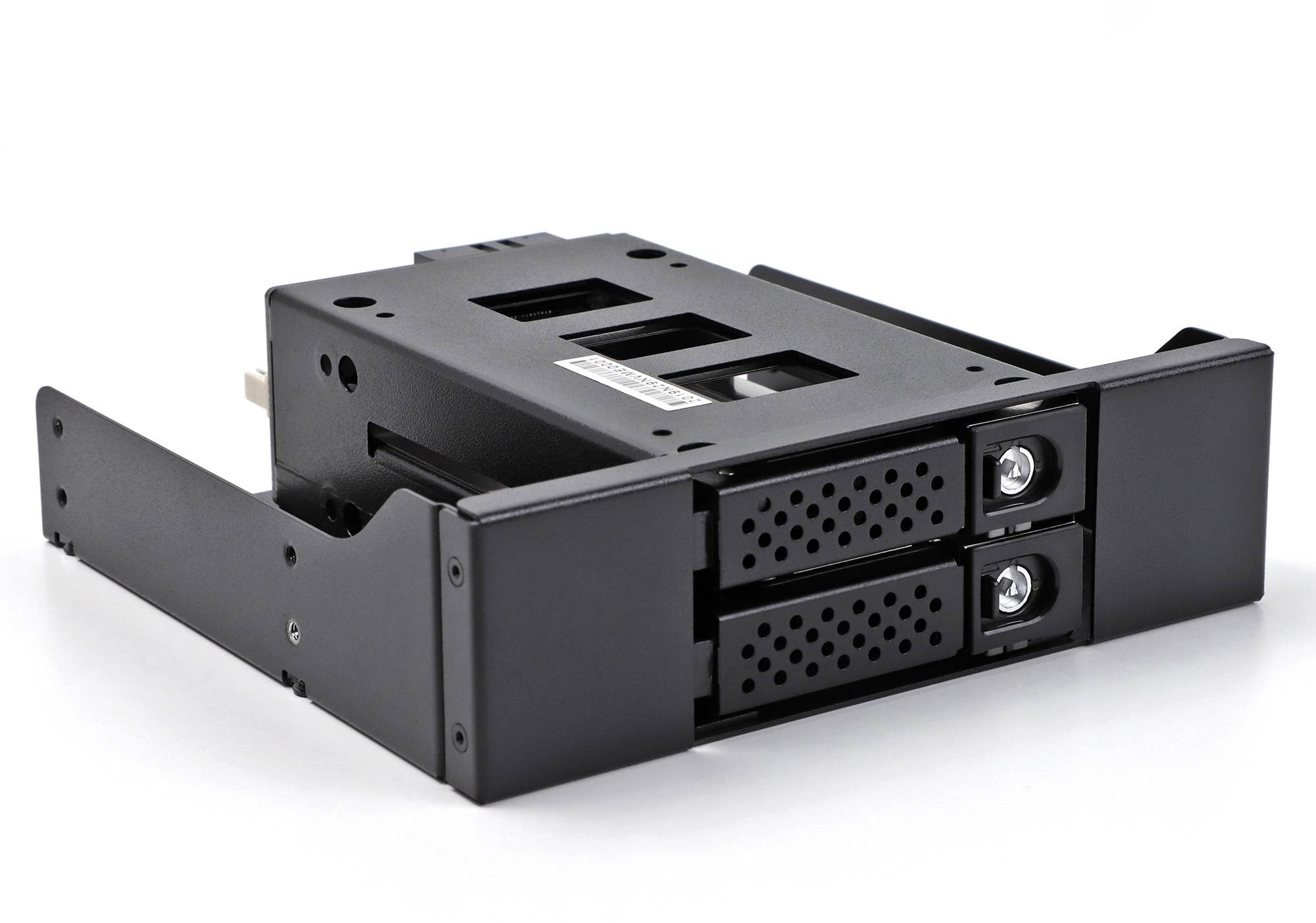

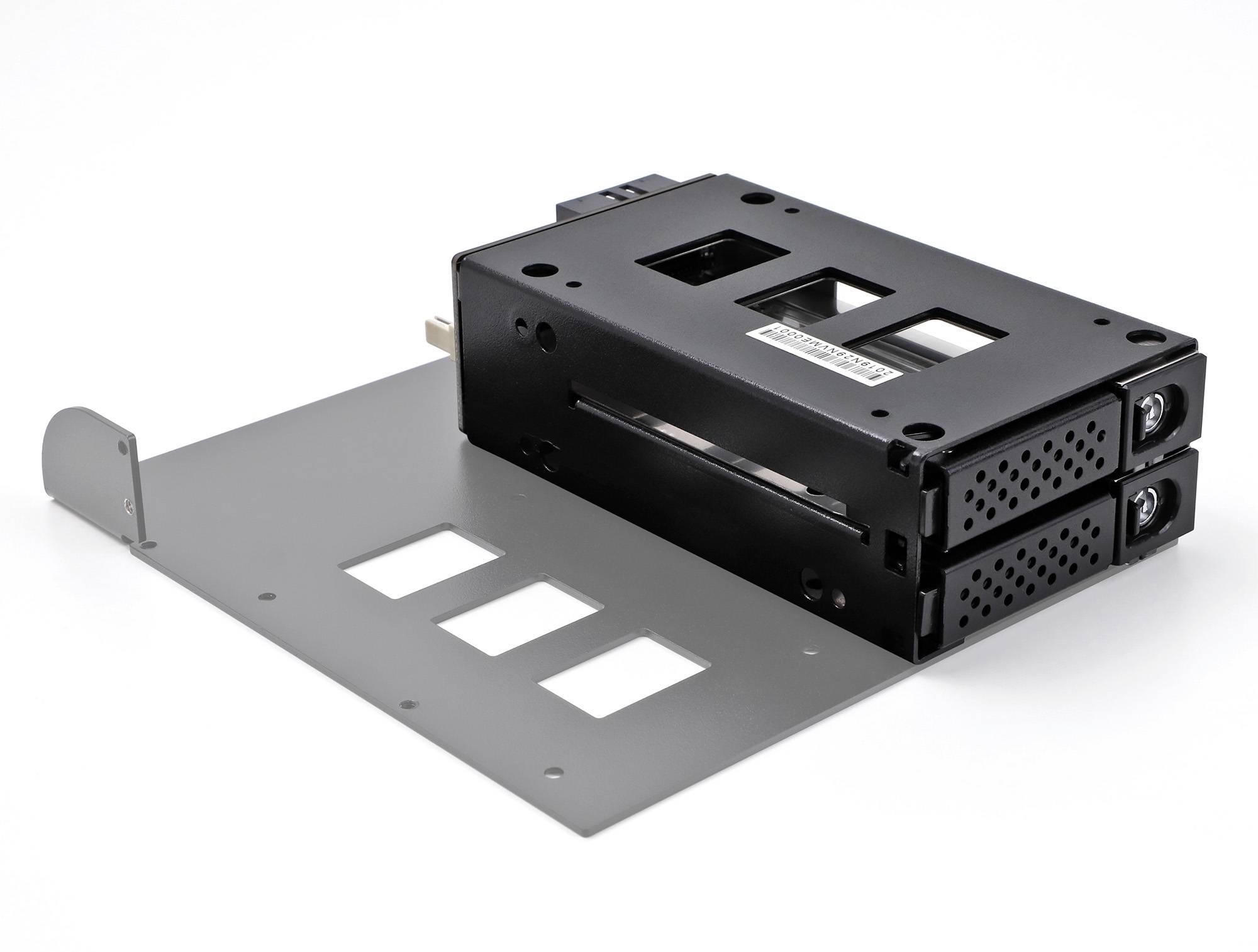

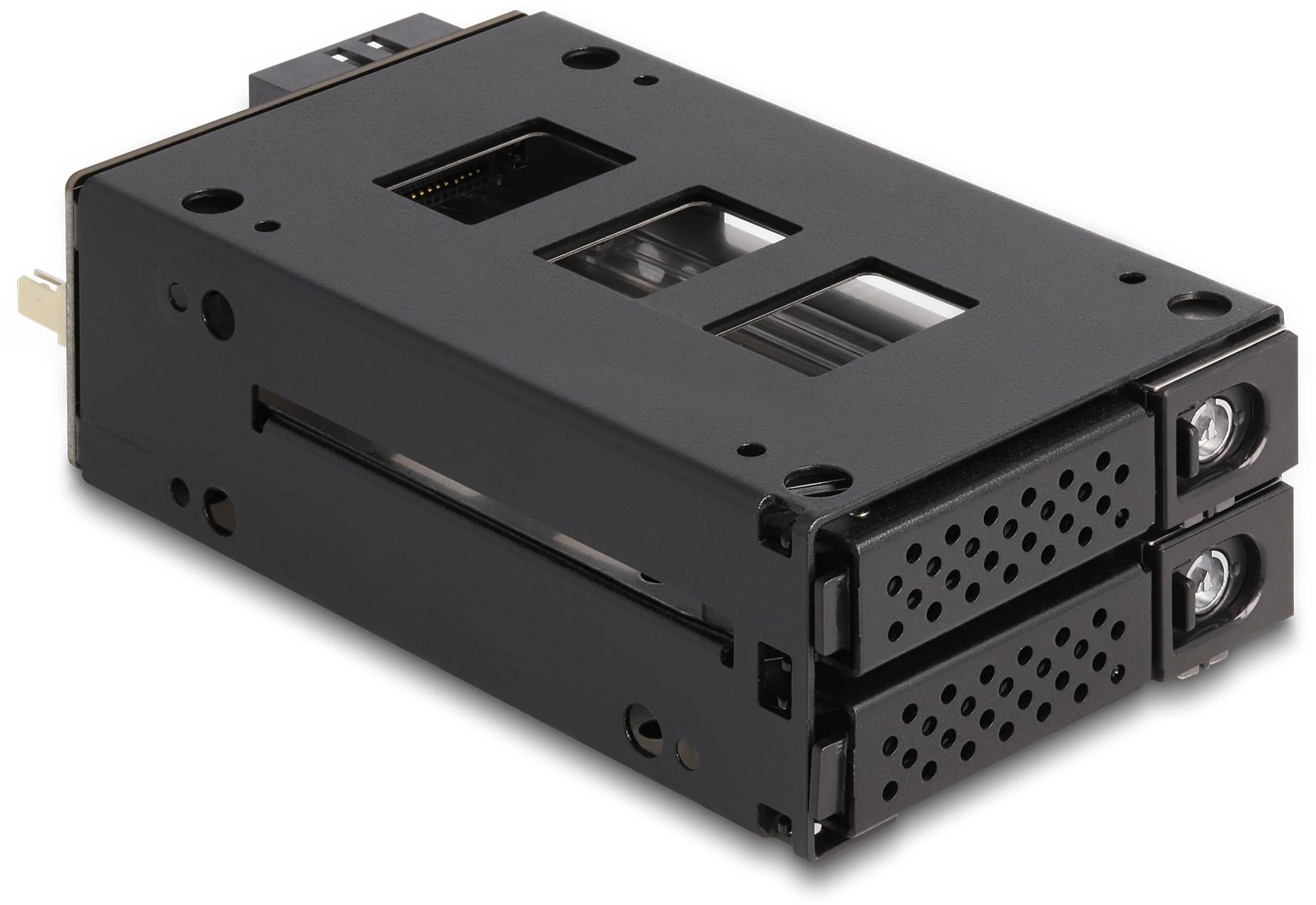

Description This solid metal mobile rack by Delock can be installed into a free 5.25″ bay of a PC by the help of the included frame. Furthermore, it is also possible to use the mobile rack directly in a server rack or 19″ storage enclosure.
Quick change of SSD

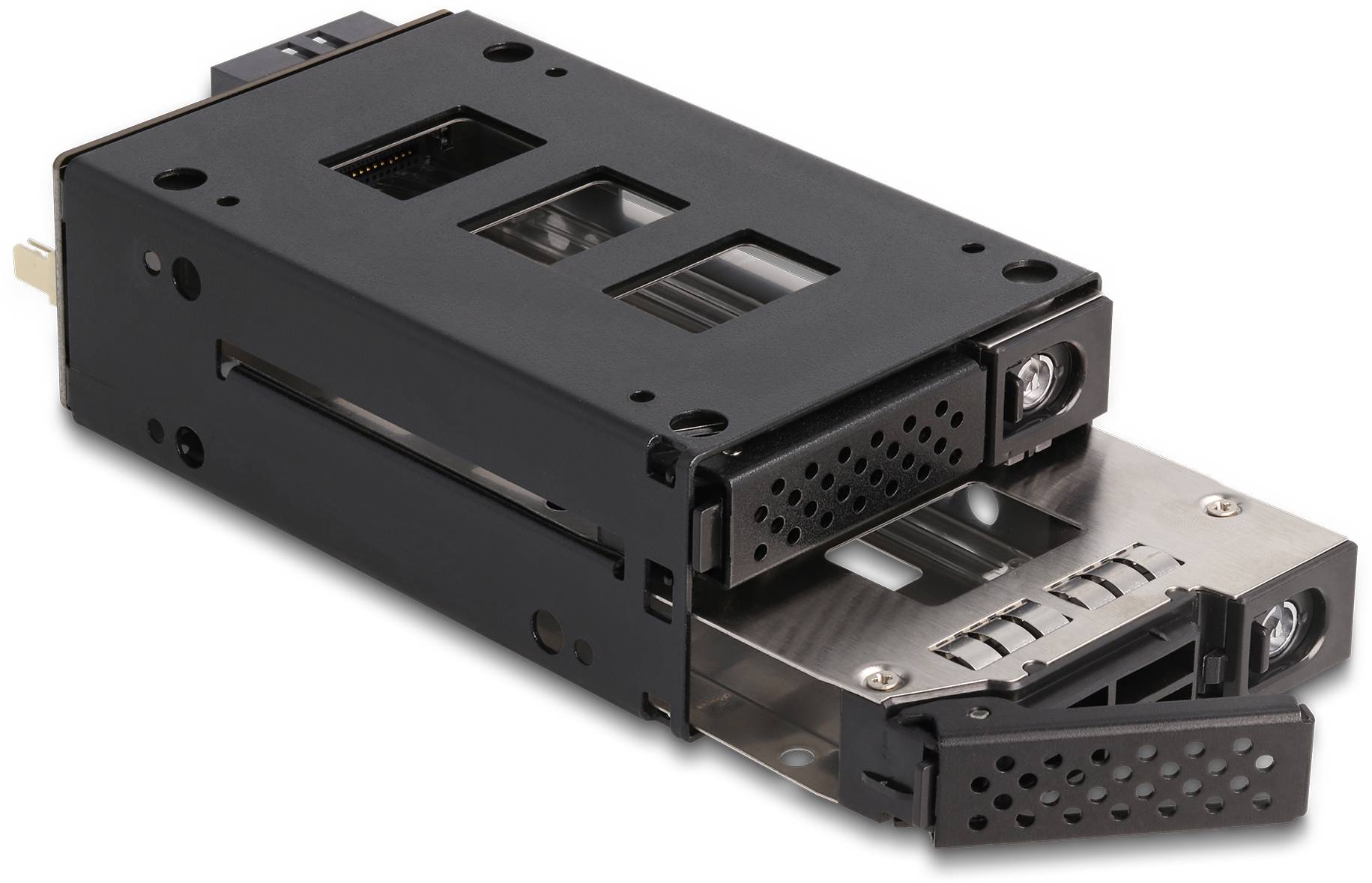

Due to the special mechanism, the SSD can be exchanged quickly and easily. For example, data backups can be taken and stored in a safe place.
Tray with key lock and springs

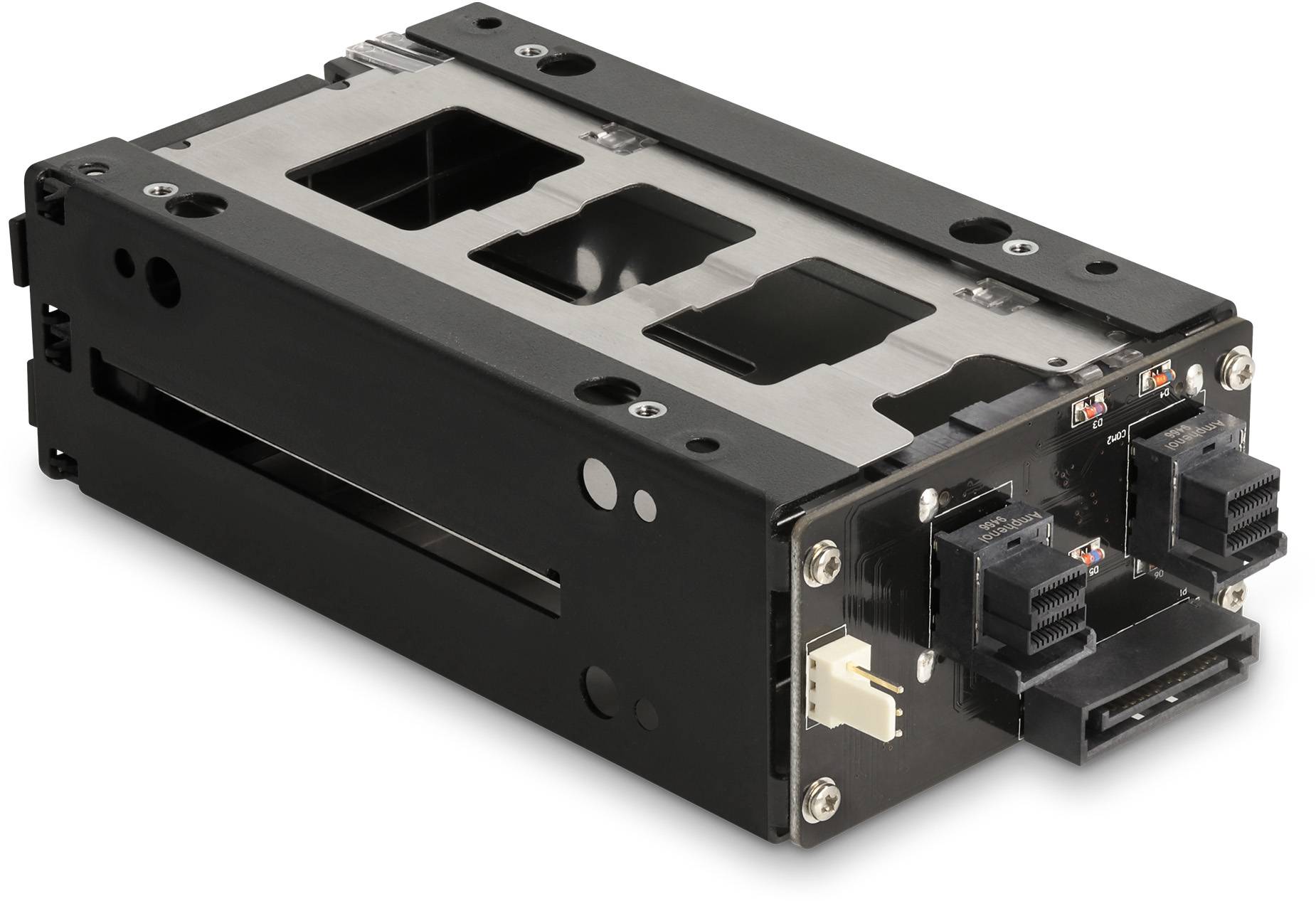

The mobile rack is equipped with a key lock to prevent unauthorised access. The stable carrier of metal has springs on the top and bottom which reduce vibrations. Specification • Connectors:
internal:
2 x SFF-8639 female
external:
2 x SFF-8643 female
1 x SATA 15 pin plug
1 x 3 pin pin header for fan
• Suitable for 2.5″ U.2 NVMe SSD:
HDD height up to 15 mm
• Data transfer rate up to 32 Gbps
• Interface: PCIe Rev. 3.0
• Key lock
• 4 x LED indicator
• Dimensions (LxWxH): ca. 140 x 72 x 40 mm
• Dimensions 5.25″ frame (LxWxH): ca. 145 x 140 x 42 mm System requirements • Linux Kernel 5.4 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with one free 5.25″ bay
• Two free U.2 ports
• Power supply with a free SATA power connector Package content • Mobile Rack

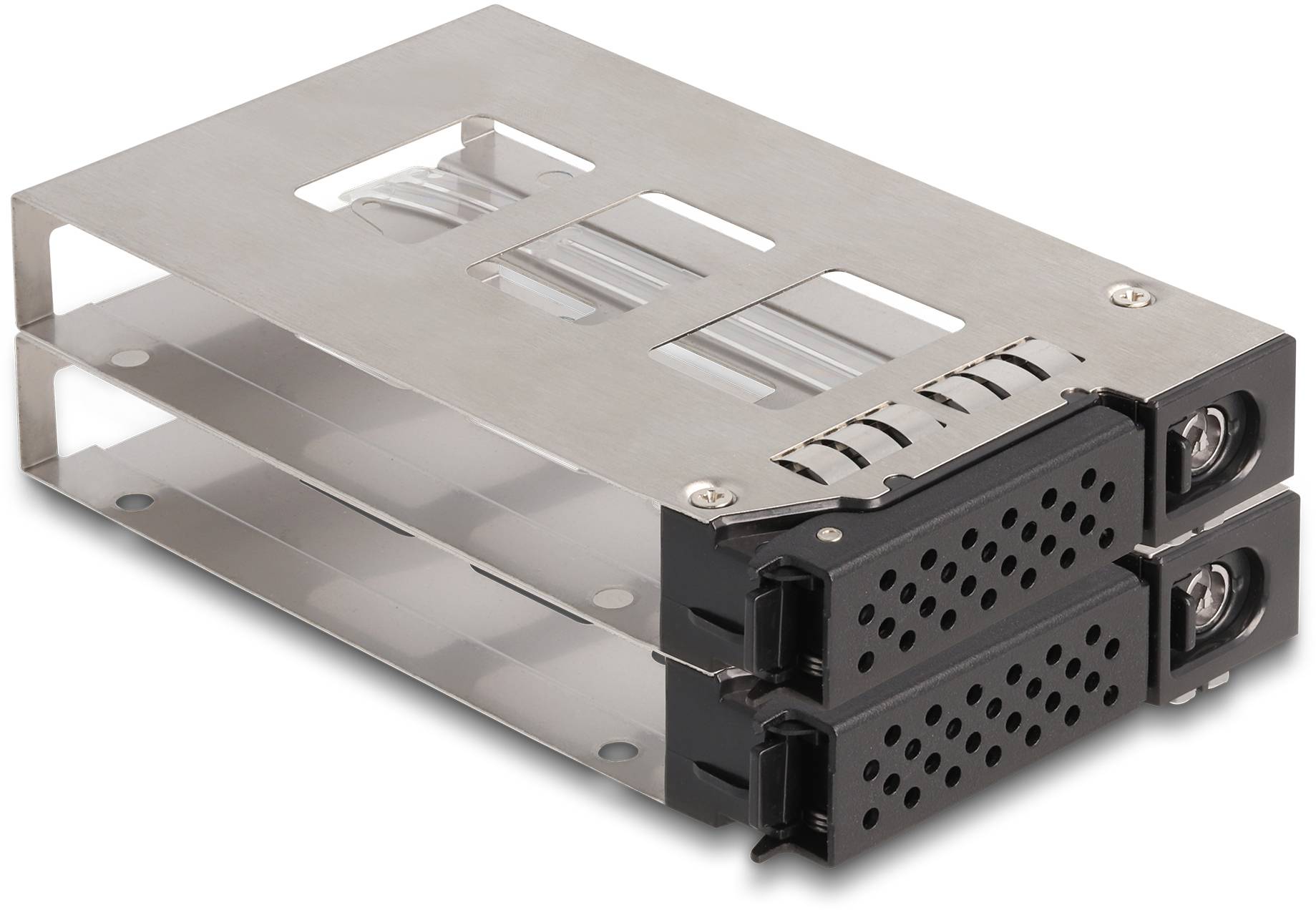

• 2 x 2.5″ mobile rack inner tray
• 1 x 5.25″ frame

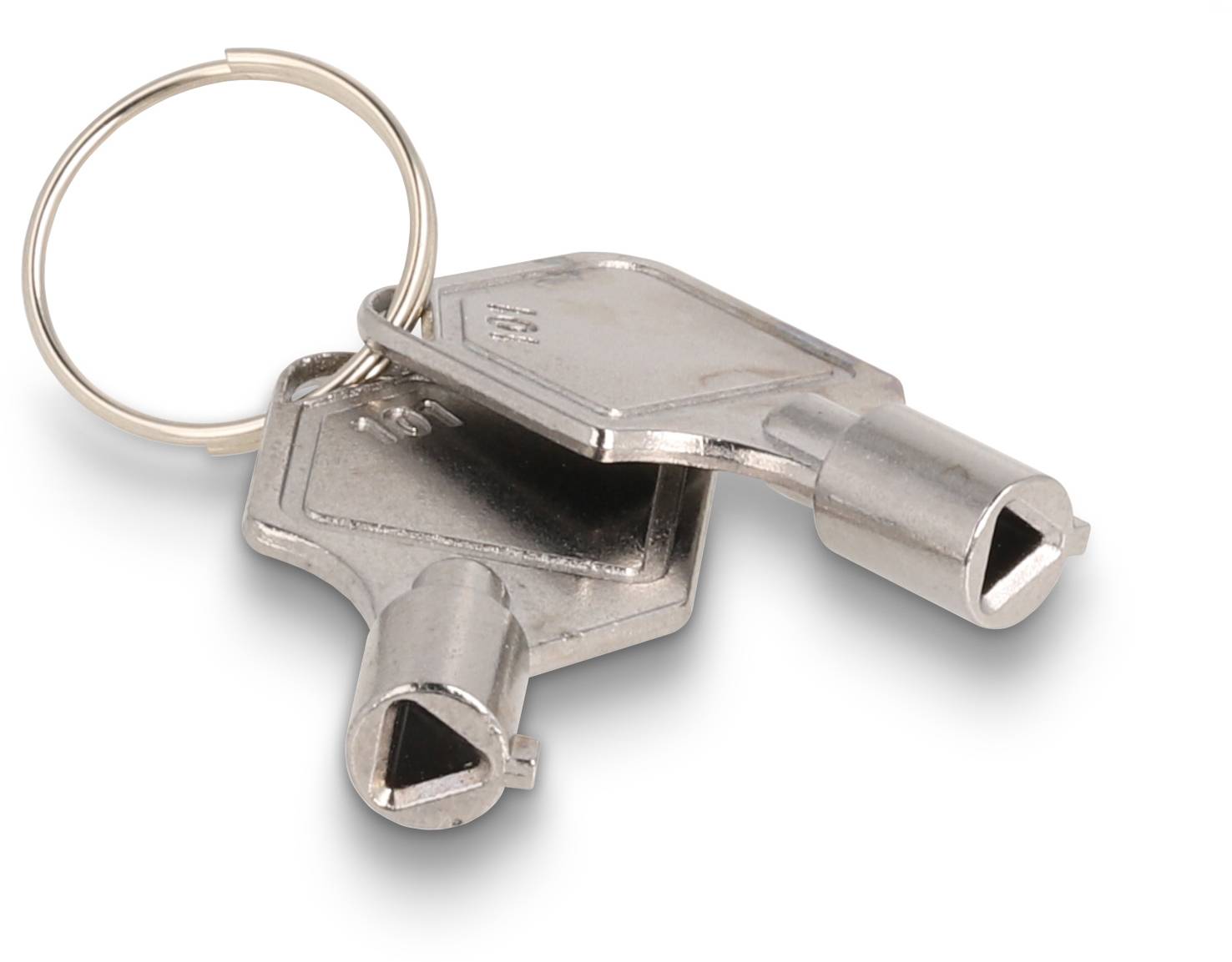

• 2 x keys
• Screws
• User manual
