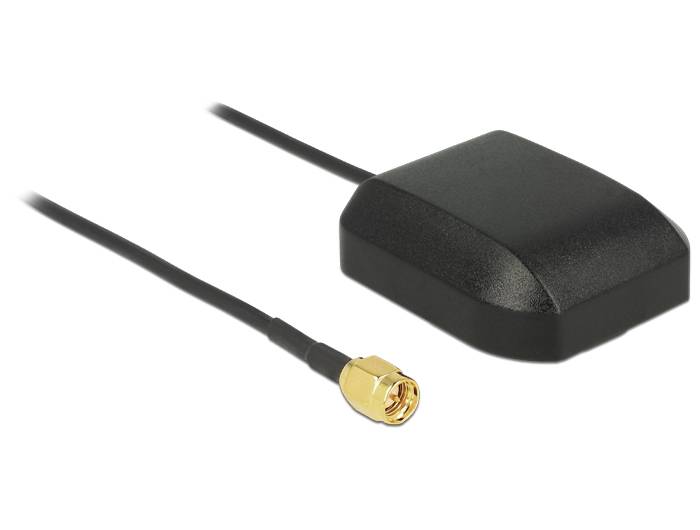

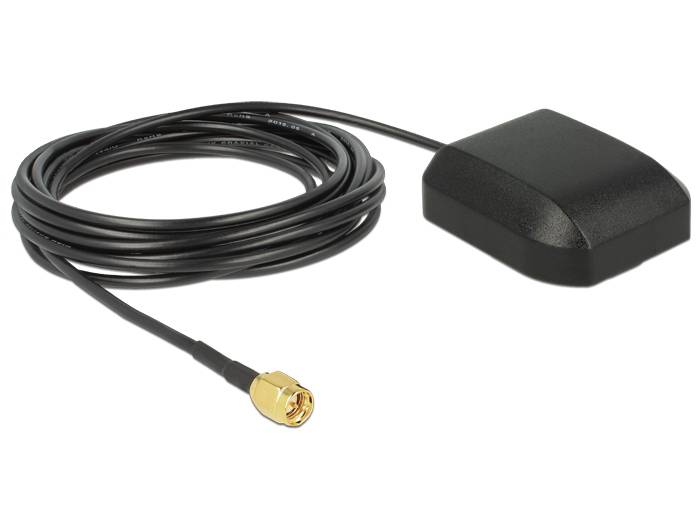

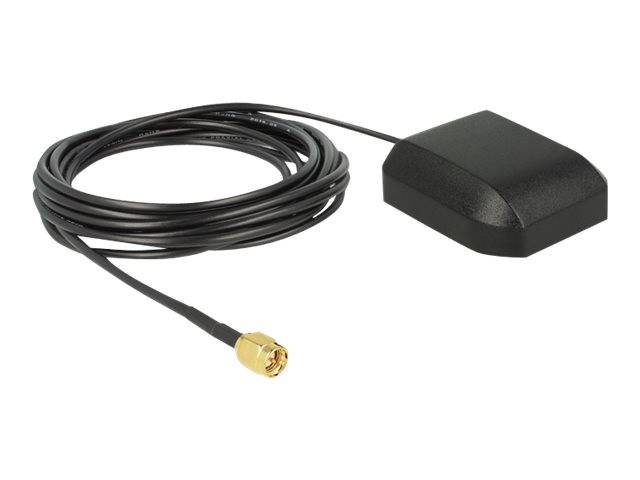

Navilock NL-281GG Multi GNSS GALILEO GLONAS GPS SMA Plug Antenna 3 m outdoor

Description
This external Navilock GNSS antenna is equipped for the simultaneous reception of GPS and GLONASS signals.
Specification
• External active additional antenna for GNSS receivers
• Connector: SMA plug
• Polarisation: RHCP
• Frequency range:
GPS: 1575,42 MHz +/- 1.023 MHz
GLONASS: 1598,0625 MHz ~ 1605,375 MHz
• Bandwidth (C/A):
GPS: > 2 MHz
GLONASS: > 8 MHz
• Gain: 5 dBic (7cm x 7cm ground plane)
• Internal patchantenna: 25 x 25 x 4 mm
• VSWR: 1.5
LAN
• Gain: 30 dBi
• Cable category: coaxial
• Cable typ: RG-174
• Cable length: 3 m
• Cable colour: black
• Impedance: 50 Ohm
• Voltage: 2.80 ~ 5.00 V
• Current: typ. 13.50 mA @ 3.0 V
• VSWR: 2.0
• Imedanz: 50 Ohm
• Protection class: IP66
• Weight: 0.150 kg
• Dimension (LxWxH): ca. 44.00 x 37.00 x 14.50 mm
• Magnetical bottom
System requirements
• Device with free SMA connector
Package content
• GNSS antenna
