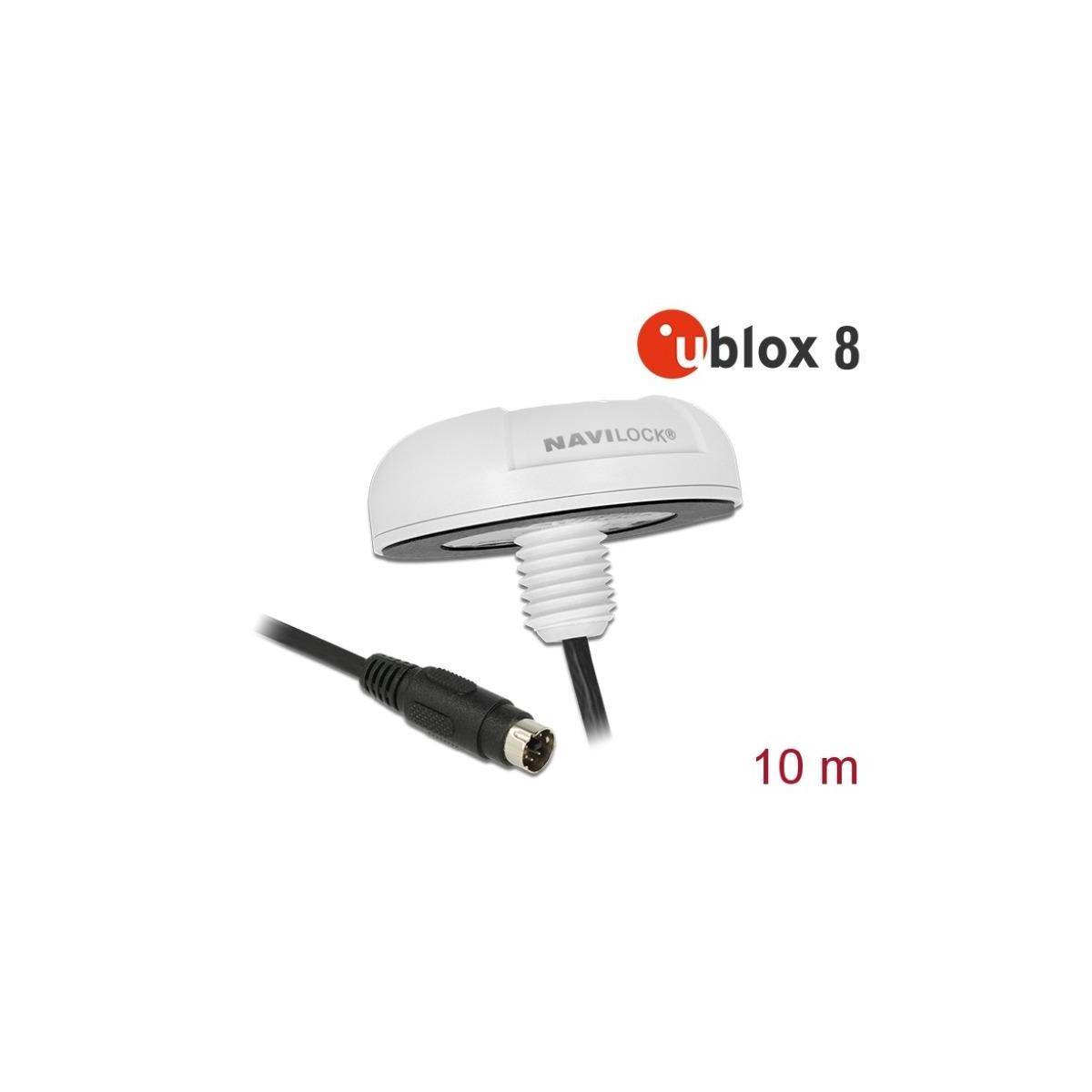

Navilock NL-8222MP MD6 Serial PPS Multi GNSS Receiver u-blox 8 10 m
EAN:
Fabrikantnummer:
Artikelnummer:
16 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 155,29
excl. btw
& Gratis verzending*
Inclusief 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Navilock NL-8222MP MD6 Serial PPS Multi GNSS Receiver u-blox 8 10 m
Technische specificaties
- Soortnaam
GPS-ontvanger
- Interfaces
RS232
- Hoogte
50 mm
- Breedte
150 mm
- Diepte
150 mm
- Afm.
(b x h x d) 150 x 50 x 150 mm
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Toetsenbordlayout
QWERTY, Engels
- Kabeltoepassing
Apparaat (koud)
- Producttype
Zubehör PDA
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 1409245 Navilock NL-8222MP MD6 Serial PPS Multi GNSS Receiver u-blox 8 10 m
Omschrijving
Description The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a laptop and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. The NL-8222MP GNSS receiver is especially designed for installation on a white ground (boat, camper, bus etc.) It is unremarkable and fits into the vehicle concept due to its housing design. Specification • Connector: MD6 Navilock plug (RS-232) (USB or serial cable are optional available)
• Chipset: u-blox 8 UBX-M8030-KT
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0,5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO: E1, 1575.4200 MHz
QZSS: L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online / offline, SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• PPS signal on pin 6 (LVTTL 3,3 V)
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. -167 dBm
• IPX7 protection class
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 V DC
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and 2 m CEP with SBAS
• Cable length: ca. 10 m
• Dimensions (Ø x H without screw thread): ca. 62 mm x 21 mm
Microsoft Sensor and Location Platform (Website)
• Profit from Windows applications (e.g. weather, maps, etc)
• Supporting the GNSS location platform API (32 bit) System requirements • Windows Vista/7/8/8.1/10, Linux Kernel 2.6, Mac OS X
• MD6 connection cable Package content • MD6 serial receiver
• Mounting material: stainless steel nut and washer
• Navilock support CD incl. driver and user manual
