Delock 90097 PCI Express kaart USB-A 3.2 Gen 2, USB-C PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop en verzending door Conrad Electronic
Aantal
Totaal (€ 247,11 / Stuk)
€ 247,11
excl. btw
& Gratis verzending*
Incl. 14 dagen retourrecht (30 dagen met)
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- Aantal USB-poorten 3.1
2 x
- Aantal USB-poorten 3.1 extern
2 x
- Chipset
ASMedia
- Kenmerken
Bootable
- Aansluitingen (uitgang)
USB-A 3.2 Gen 2
USB-C
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
PCIe
- Aantal USB type A 3.1 / 3.2 Gen 2
2 x
- Aantal USB 3.1
2 x
- Kabeltoepassing
Apparaat (koud)
- Uitgangsstroom (max.)
3 A
- Uitgangsspanning
5 V
- UKCA
Ja
- Data transfer snelheid (max)
20 Gbit/s
- UASP-ondersteuning
Ja
- Aantal per verpakking
1 Stück(e)
- Intern
Ja
- Gebruikershandleiding
Ja
- Gemakkelijk te installeren
Ja
- Type processor
Ja
Documenten en downloads
Datablad
Datablad 3380202 Delock 90097 PCI Express kaart USB-A 3.2 Gen 2, USB-C PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3380202 Delock 90097 PCI Express kaart USB-A 3.2 Gen 2, USB-C PCIe
Omschrijving

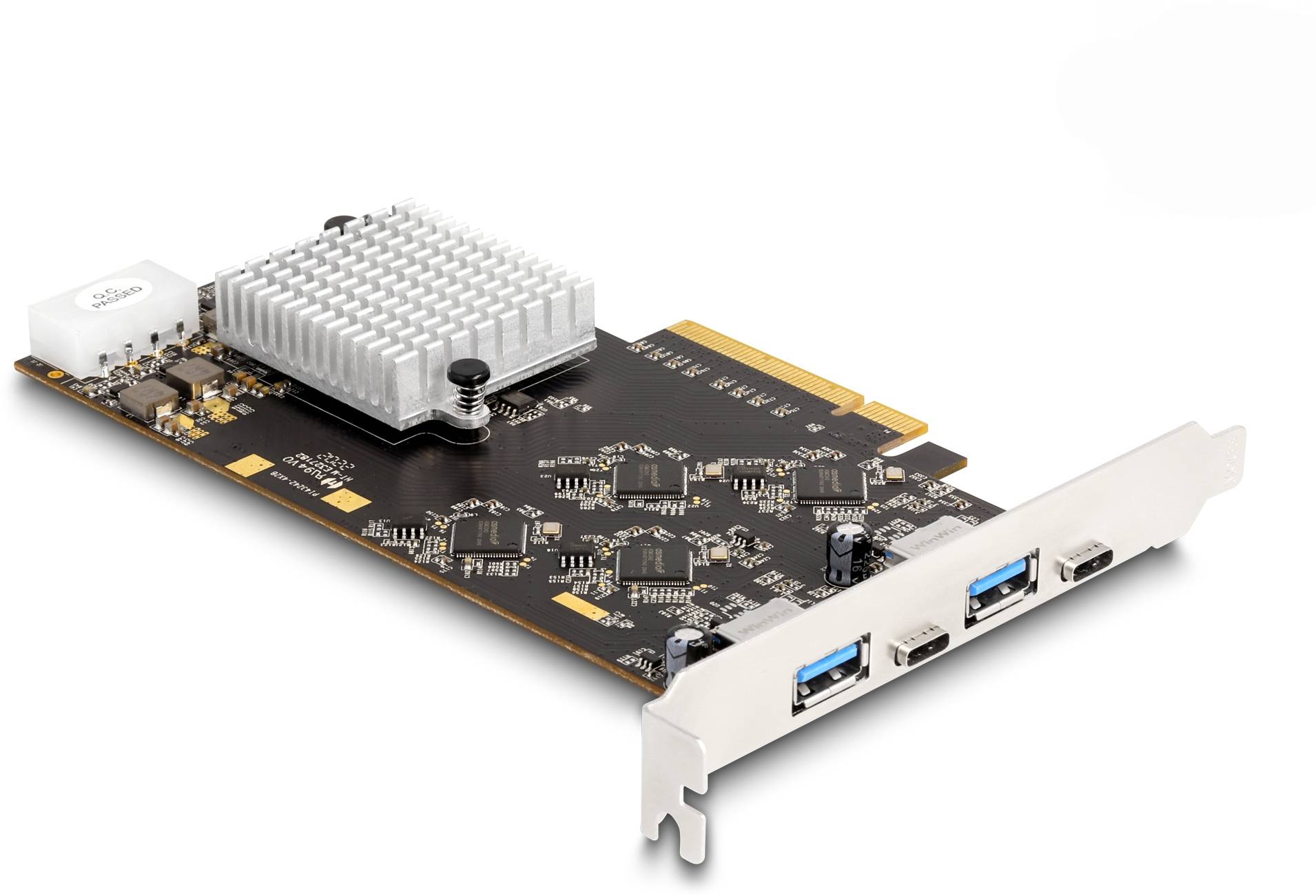

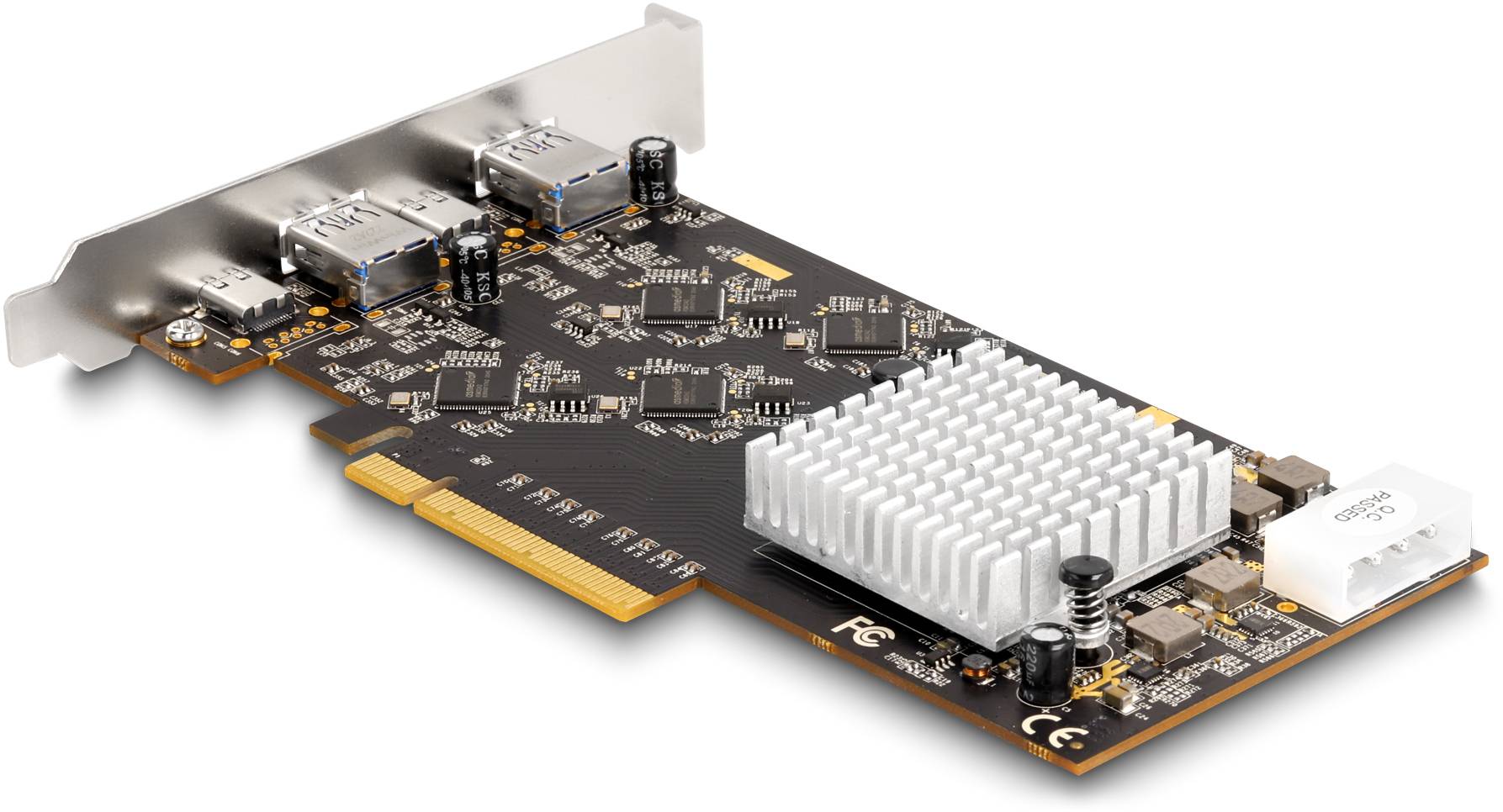

Description The PCI Express card by Delock expands the PC by four external USB 3.2 ports, two USB-C™ and two USB Type-A ports. Different USB devices, such as docking stations, card readers, external enclosures etc., can be connected to the card.
Quad Channel

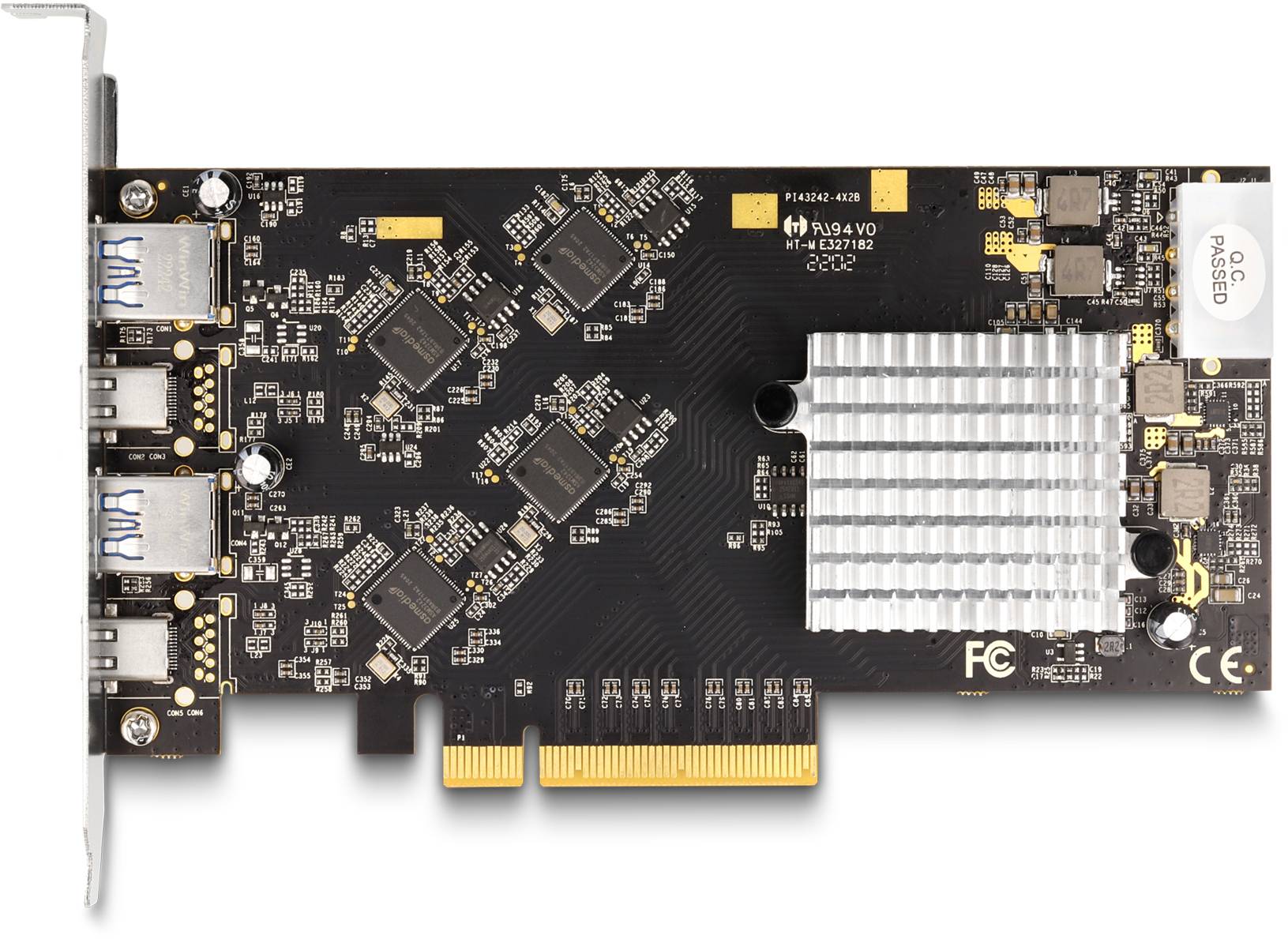

The card has four ASM3242 chipsets, a separate chipset for each USB connector. This ensures the high data transfer rate of 20 Gbps on the USB Type-C™ ports and 10 Gbps on the USB Type-A ports when used at the same time.
The PCIe card can be supplied with power via the PCIe connector. If this is not sufficient, the card has a 4 pin power connector. At the USB Type-C™ ports the maximum output is 5 V / 3 A and at the Type-A ports 5 V / 0.9 A, all ports together have an output of maximum 7.8 A. Specification • Connectors:
external:
2 x USB 10 Gbps Type-A female
2 x USB 20 Gbps USB Type-C™ female
internal:
1 x 4 pin power connector
1 x PCI Express x8, V3.0
• Chipset: Asmedia ASM3242, Pericom PI7C9X3G816GP
• Data transfer rate up to 20 Gbps
• Downwards compatible to USB 3.0, USB 2.0, USB 1.1
• Power supply via PCI Express interface or via 4 pin power connector
• Electrical power per port:
USB Type-A: max. 4.5 watt (5 V / 0.9 A)
USB Type-C™: max. 15 watt (5 V / 3 A)
• Bootable
• Supports UASP
• Supports eXtensible Host Controller Interface (xHCI) specification 1.1
• Supports Multiple INs System requirements • Linux Kernel 5.15 or above
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2019
• PC with one free PCI Express x8 / x16 / x32 slot Package content • PCI Express card
• User manual
