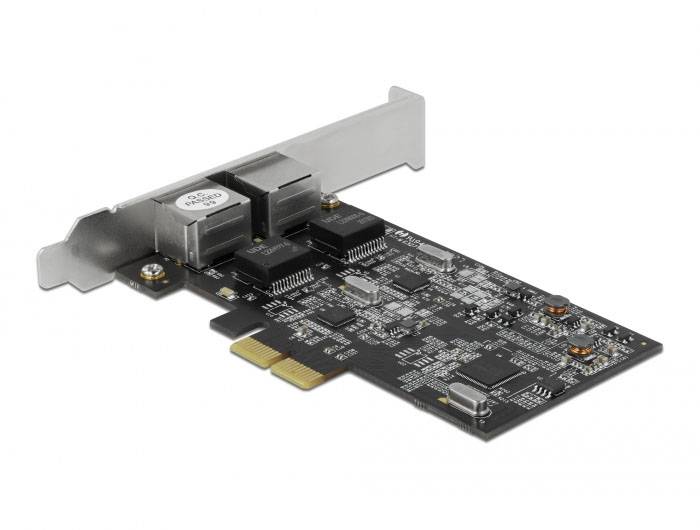

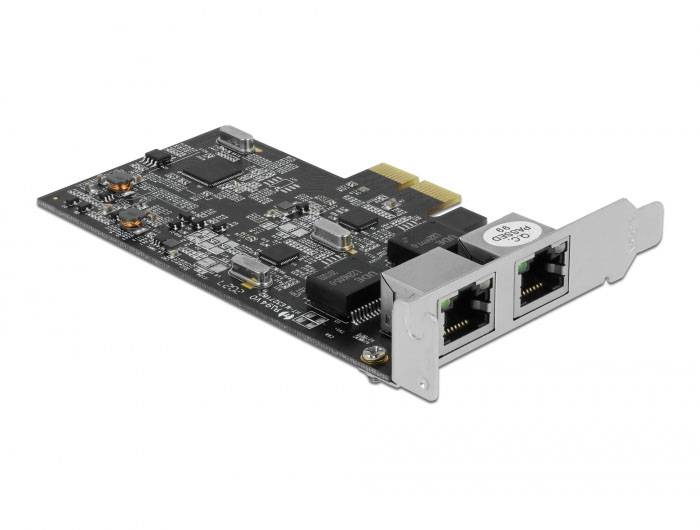

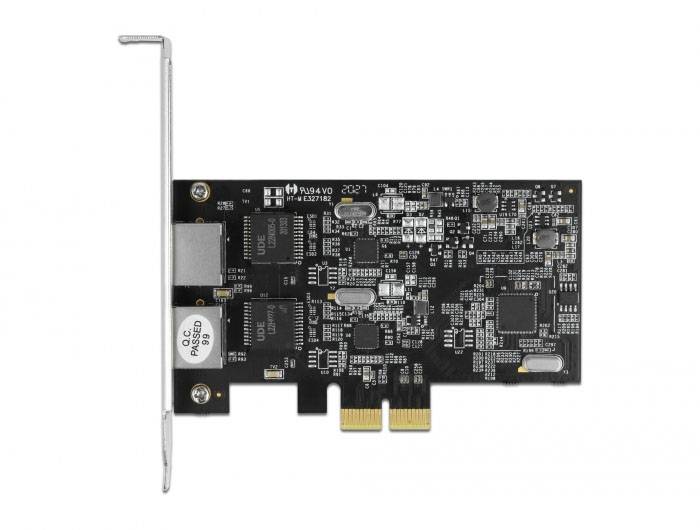

Delock 89530 PCI Express kaart RJ45 PCIe
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop en verzending door Conrad Electronic
Aantal
Totaal (€ 72,72 / Stuk)
€ 72,72
excl. btw
& Gratis verzending met
Incl. 14 dagen retourrecht (30 dagen met)
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Soortnaam
PCI Express kaart
- Interface
PCIe
- 10/100 Mbit/s-poorten
2 x
- 10/100/1000 Mbit/s
2 x
- Aansluitingen (uitgang)
RJ45
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
- Maximale overdrachtssnelheid van gegevens
1000 Mbit/s
- Ethernet LAN
Ja
- Jumbo frames
16000
- Wake-on-LAN
Ja
- Jumbo Frames ondersteuning
Ja
Documenten en downloads
Datablad
Datablad 3379367 Delock 89530 PCI Express kaart RJ45 PCIe
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379367 Delock 89530 PCI Express kaart RJ45 PCIe
Omschrijving
Description The PCI Express card by Delock offers two network ports with a data transfer rate up to 2500 Mbps.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically. Specification • Connectors:
external: 2 x 2.5 Gigabit LAN RJ45 jack
internal: 1 x PCI Express x2, V2.1
• Chipset: Realtek RTL8125B
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps (Half/Full Duplex)
PCI Express x2 up to 8 Gbps
• Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Supports Wake On LAN (WOL)
• Supports IEEE 802.1P layer 2 priority encoding
• Supports IEEE 802.3x full duplex flow control
• Supports IEEE 802.1Q Virtual LAN (VLAN)
• Supports 16k Jumbo Frames
• Supports PXE
• LED indicator for power and activity System requirements • Linux Kernel 4.x or above
• Windows 8.1/8.1-64/10/10-64
• PC with one free PCI Express x2 / x4 / x8 / x16 / x32 slot Package content • PCI Express card

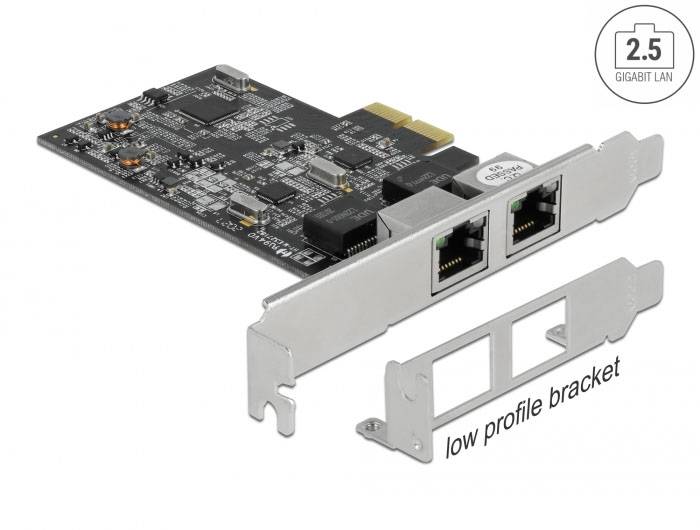

• Low profile bracket
• Driver CD
• User manual
