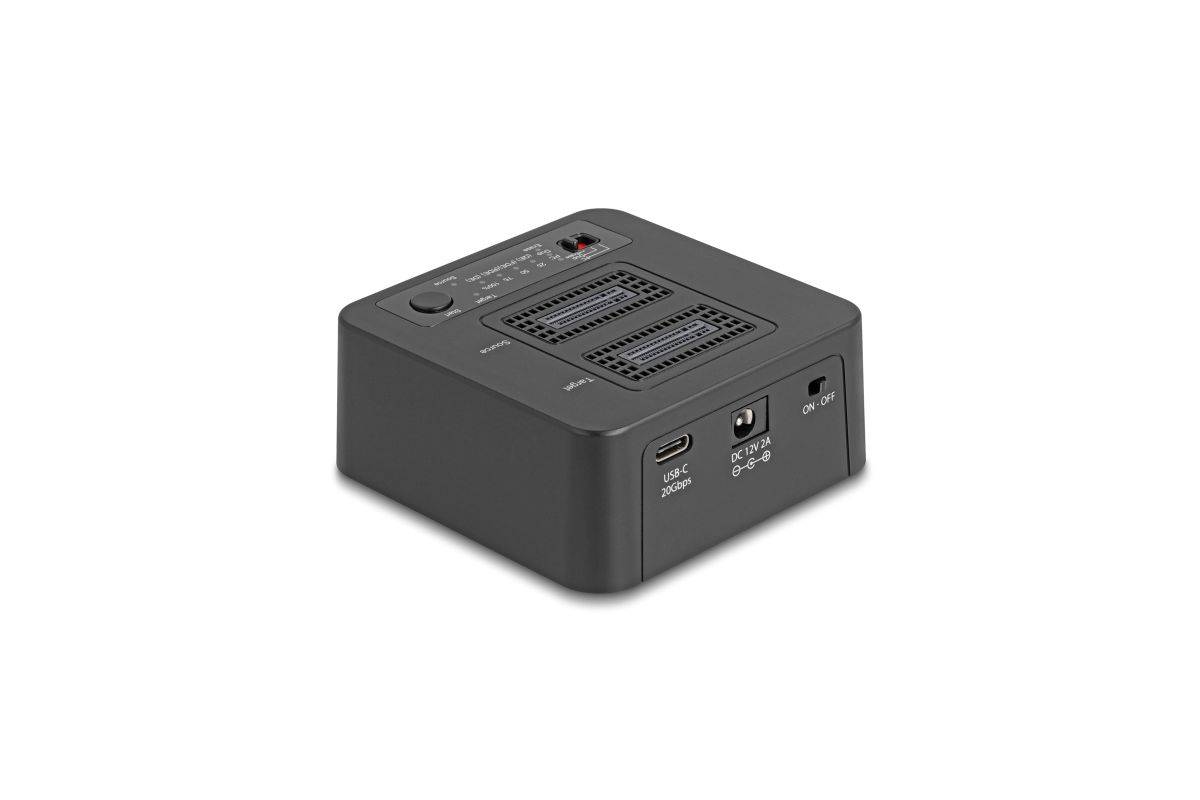

Delock USB 20 Gbps M.2 Docking Station for 2 x M.2 NVMe PCIe SSD with Clone and Erase Function
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
46 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 184,91
excl. btw
& Gratis verzending*
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Soortnaam
Harde schijf-dockingstation
- Aansluiting (computer)
USB-C 3.2 Gen 2
- Aansluiting (harde schijf)
M.2 PCIe NVMe
- Bijzonderheden
Met clone-functie
- Gewicht
360 g
- Breedte
100 mm
- Hoogte
50 mm
- Diepte
150 mm
- Aantal harde schijven (max.)
2 x
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Zwart
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 927833912 Delock USB 20 Gbps M.2 Docking Station for 2 x M.2 NVMe PCIe SSD with Clone and Erase Function
Omschrijving
Description This M.2 docking station by Delock enables the installation of two M.2 PCIe NVMe SSDs and it can be connected via USB to the PC or laptop. The included USB cable allows the connection to a free USB-C™ port.
Clone and erase function
The clone function enables to copy the content of one SSD to another without using a PC. No connection to the computer is required for the erase function. Selectively one drive or two drives can be deleted at the same time. Further different erase modes are available.
The memory is simply plugged into the robust housing and can be used immediately. No screws, tools or accessories are required, which means that the SSD can be changed quickly. Specification • Connectors:
1 x USB 20 Gbps USB Type-C™ female
2 x M.2 key M slot
1 x DC jack
• Chipset: JMicron JMS586U
• Supports M.2 modules with key M or key B+M based on PCIe (NVMe)
• Supports NVM Express (NVMe)
• Data transfer rate up to 20 Gbps
• Supports UASP
• Supports TRIM
• LED indicator for power, access and copy / erase status
• Function key:
1 x switch for mode
1 x Clone button
1 x On / Off switch
• Bootable
• Dimensions (LxWxH): ca. 80 x 80 x 33 mm
• Hot Plug, Plug & Play
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 12.0 V / 2.0 A / 24.0 W
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 m
length: ca. 10 mm System requirements • Android 13.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™

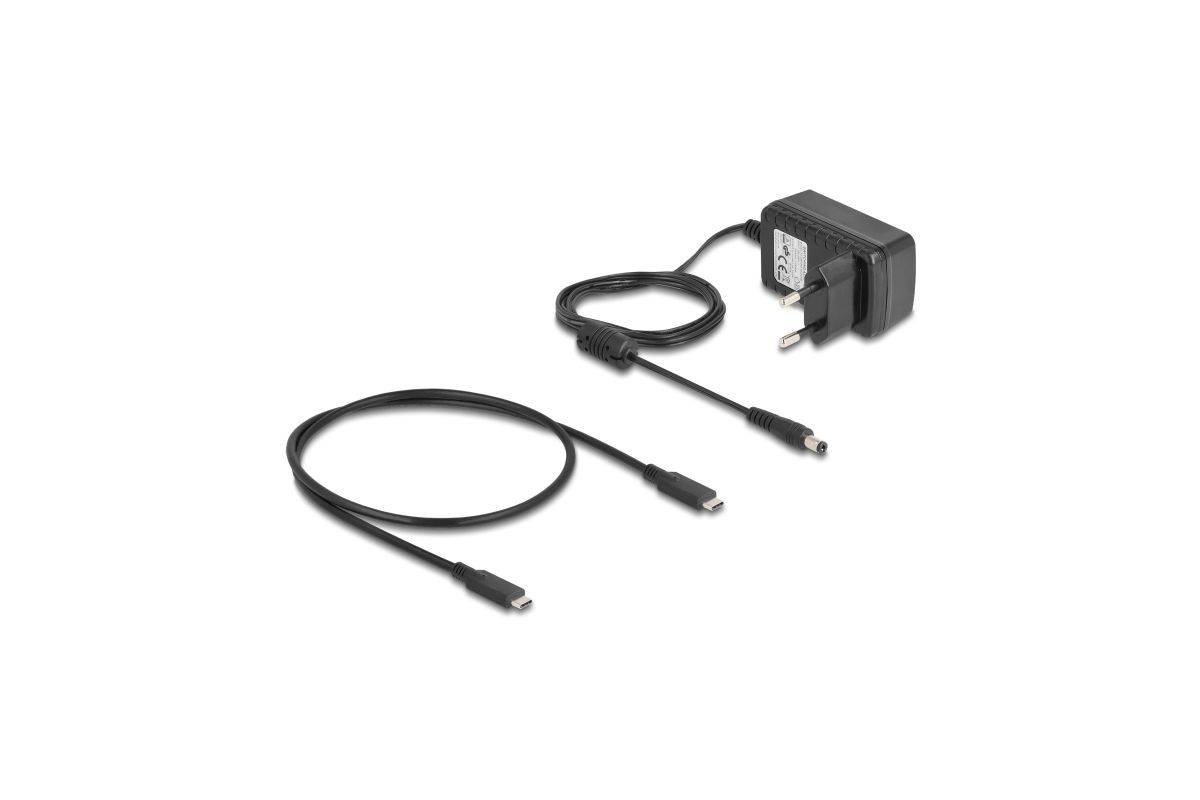

4 port Package content • M.2 docking station
• Cable USB-C™ male to USB-C™ male, length ca. 1 m
• External power supply
• User manual
