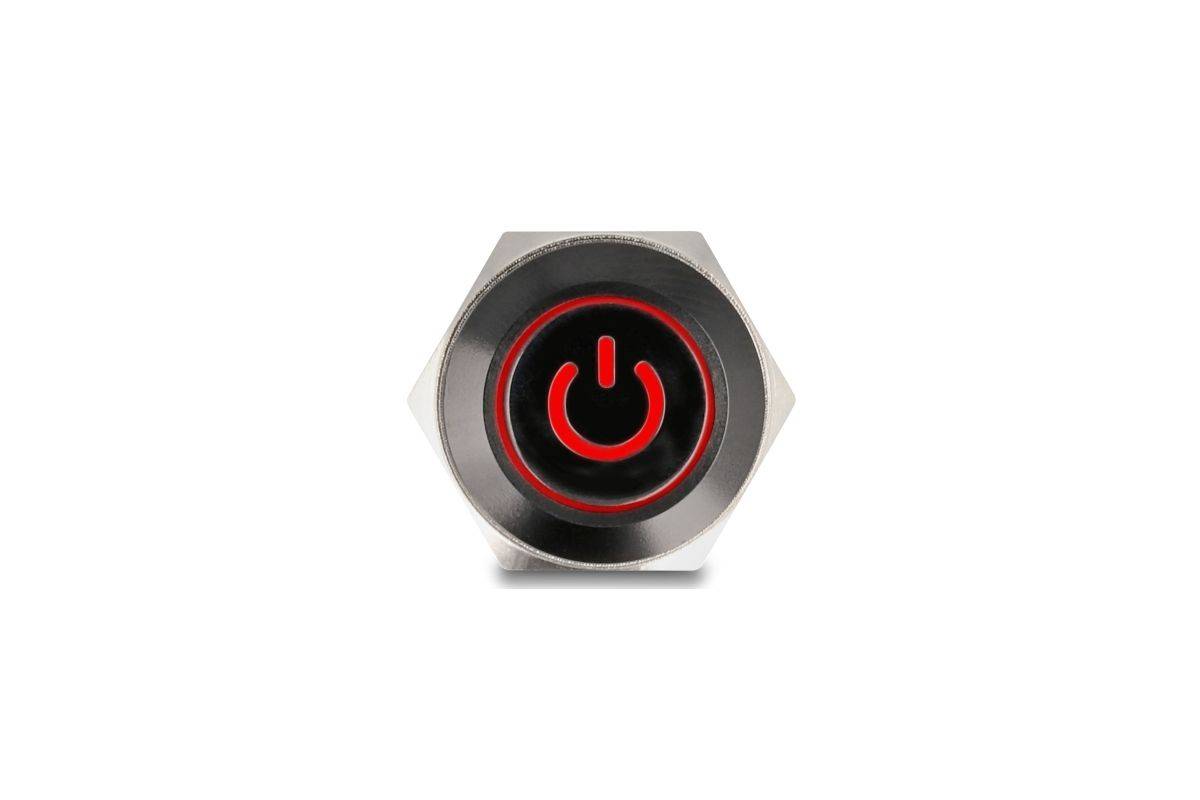

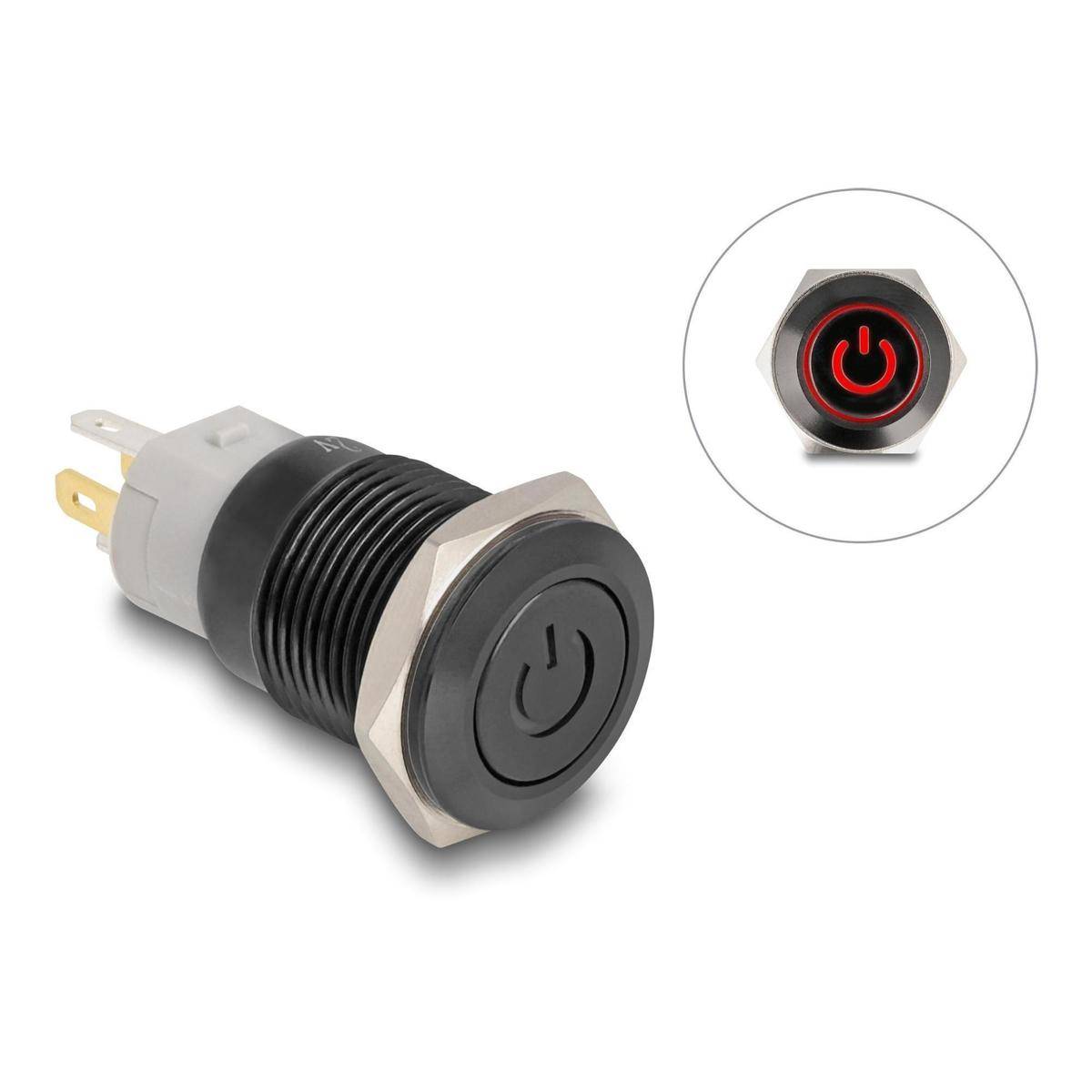

Delock Push Button for Installation black 16 mm 12 V 5 x solder connection LED red power symbol + ring
EAN:
Fabrikantnummer:
Artikelnummer:
Soort verlichting
LED
Contactsoort
1x NO
Inbouw-Ø
16 mm
Bijzonderheden
Plat
Kleur behuizing/knop
Zwart
Datasheet (PDF)
41 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 15,80
excl. btw
& € 5,95
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Bijzonderheden
Plat
- Kleur behuizing/knop
Zwart
- Functie
Continu
- Soort verlichting
LED
Rood
- Type
LED
- Opdrukmotief
Power pictogram
1x NO
- Materiaal
Kunststof
- Min. temperatuur
-25 °C
- Max. temperatuur
55 °C
35 mm
- Diameter
19 mm
- Inbouw-Ø
16 mm
- Inbouwdiepte
28 mm
- Inhoud
1 stuk(s)
- Afm.
(Ø x l) 19 mm x 35 mm
- Type
413937
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Meerdere kleuren
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 928803481 Delock Push Button for Installation black 16 mm 12 V 5 x solder connection LED red power symbol + ring
Omschrijving
Description This push button by Delock is ideal for installation in control panels, for example in industry, control or regulation technology. Push buttons can also be found in the automotive industry or the consumer sector. For example, as doorbells or triggers for lighting systems with timers such as those found in hallways.
Button
A so called button, or push button, returns to its initial position after being pressed.
The NO (closer) contact establishes a connection between two contacts, while the NC (opener) contact releases them.
Please Note
• The installation should only be carried out by qualified electricians in compliance with the usual national power supply guidelines.
• Earthing is necessary for low-voltage systems to ensure the safety and functionality of the system. Specification • Connectors: 5 x solder connection
• Switch type: 1NO + 1 NC
• Switching voltage: AC 250 V~ / 2 A
• Number of contacts: 4
• Number of open contact: 1
• Function: latching
• Actuator: flat
• Operating temperature: -25 °C ~ 55 °C
• Mounting hole diameter: ca. 16 mm
• Hexagon nut spanner width: 19 mm
• Mounting depth: ca. 28 mm
• Thread size: M16
• LED lighting: red
• LED voltage: 12 V
• LED type: power symbol
• Material: plastic
• Mechanical life: 1,000,000 cycles
• Electrical service life: 100,000 cycles
• Protection class: IP65
• Dimensions (LxD): ca. 35 x 19 mm Package content • Push-button
