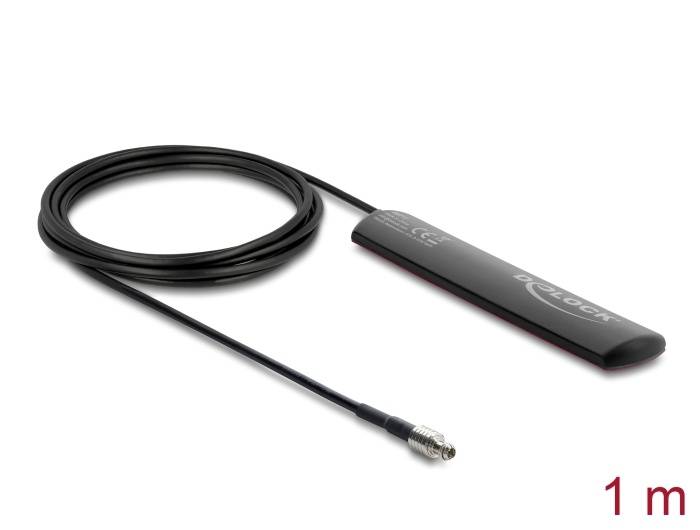

Delock LTE Antenna TS9 plug 1.5 dBi omnidirectional fixed with connection cable RG-174 1 m adhesive mounting outdoor
EAN:
Fabrikantnummer:
Artikelnummer:
11 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 15,71
excl. btw
& € 5,95
Incl. 14 dagen retourrecht
Technische specificaties
- Gewicht
0
- Model
Rond
- Kabellengte
1 m
- Uitvoering (kabel)
Aansluitkabel
- Kleur (specifiek)
Meerdere kleuren
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
Omschrijving
Description This LTE antenna can be installed indoors and can be used for reception of different bands. It is completely compatible to GSM, UMTS, Bluetooth, WLAN 2.4 GHz, ZigBee and Z-Wave. Specification • Connector: 1 x TS9 plug
• LTE band: 1-10; 12-20; 23; 25-30; 33-41; 43; 44
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4GHz, ZigBee, Z-Wave, DECT, SRD
• Antenna gain: 1.5 dBi
• Impedance: 50 Ohm
• VSWR: < 2.5
• Operating temperature: -40 °C ~ 75 °C
• Housing material: ABS UV resistant
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 0.93 dB @ 800 MHz per meter
• Cable length: ca. 1 m
• Dimensions (LxWxH): ca. 115 x 22 x 7 mm System requirements • Device with one free TS9 port Package content • LTE antenna
• LTE band: 1-10; 12-20; 23; 25-30; 33-41; 43; 44
• Frequency range:
698 - 960 MHz
1710 - 2700 MHz
• GSM, UMTS, Bluetooth, WLAN 2.4GHz, ZigBee, Z-Wave, DECT, SRD
• Antenna gain: 1.5 dBi
• Impedance: 50 Ohm
• VSWR: < 2.5
• Operating temperature: -40 °C ~ 75 °C
• Housing material: ABS UV resistant
• Cable type: coaxial
• Cable type: RG-174
• Cable colour: black
• Cable attenuation: 0.93 dB @ 800 MHz per meter
• Cable length: ca. 1 m
• Dimensions (LxWxH): ca. 115 x 22 x 7 mm System requirements • Device with one free TS9 port Package content • LTE antenna
