Delock External USB 5 Gbps Hub with 2 x USB Type-A, 1 x USB Type-C™ and SD + Micro SD Slot with Locking Screw
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
26 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 48,54
excl. btw
& € 5,95
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Kabelspecificatie
USB 3.2 Gen2
- Overdrachtssnelheid (max.)
5 GBit/s
- Aansluitingen (uitgang)
USB-A
- Aantal uitgangen
3 x
- Locatie
Extern
- Kenmerken
Met status-LED's
- Kleur (specifiek)
Meerdere kleuren
- Breedte
46 mm
- Hoogte
23 mm
- Diepte
92 mm
- Gewicht
0.17
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
USB
- Aansluiting B
USB
- Kabeltoepassing
Apparaat (koud)
- Draadloos oplaadbaar
Nee
- Aansluittype
USB 3.2 Gen 2 (USB 3.1)
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 916000932 Delock External USB 5 Gbps Hub with 2 x USB Type-A, 1 x USB Type-C™ and SD + Micro SD Slot with Locking Screw
Omschrijving

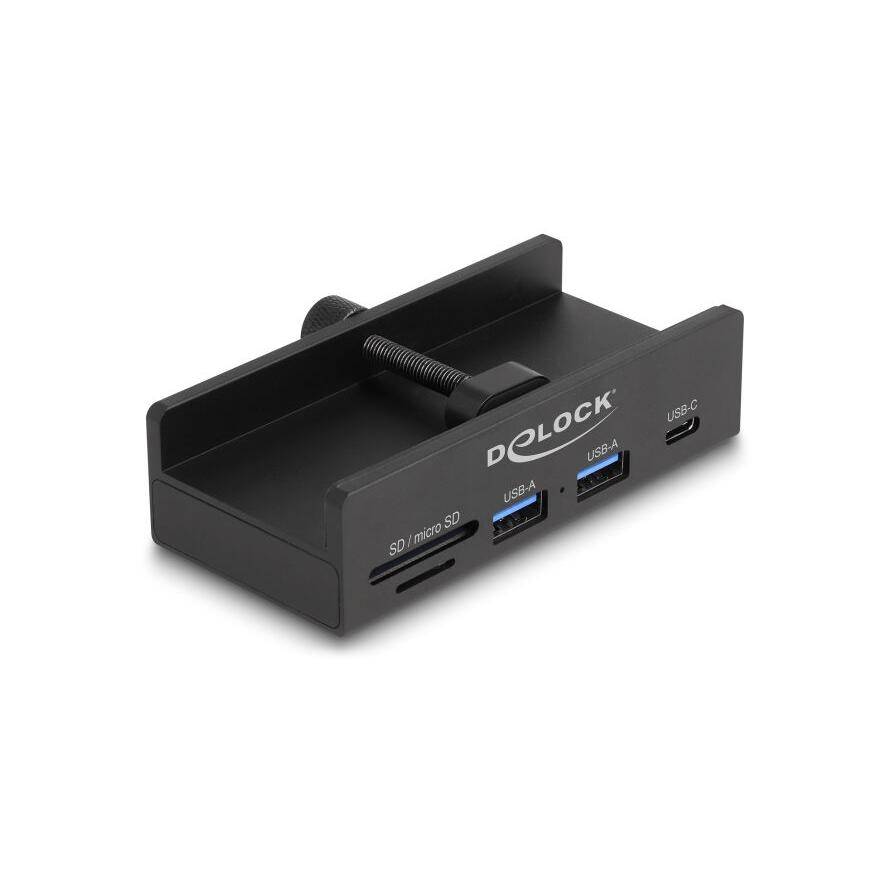

Description This USB hub by Delock can be connected to a computer via the USB Type-A interface. It expands the computer by two USB Type-A and one USB Type-C™ ports.
Integrated Card Reader
In addition, the hub with integrated card reader expands a PC or laptop by an SD and a Micro SD slot via the USB Type-A connection.

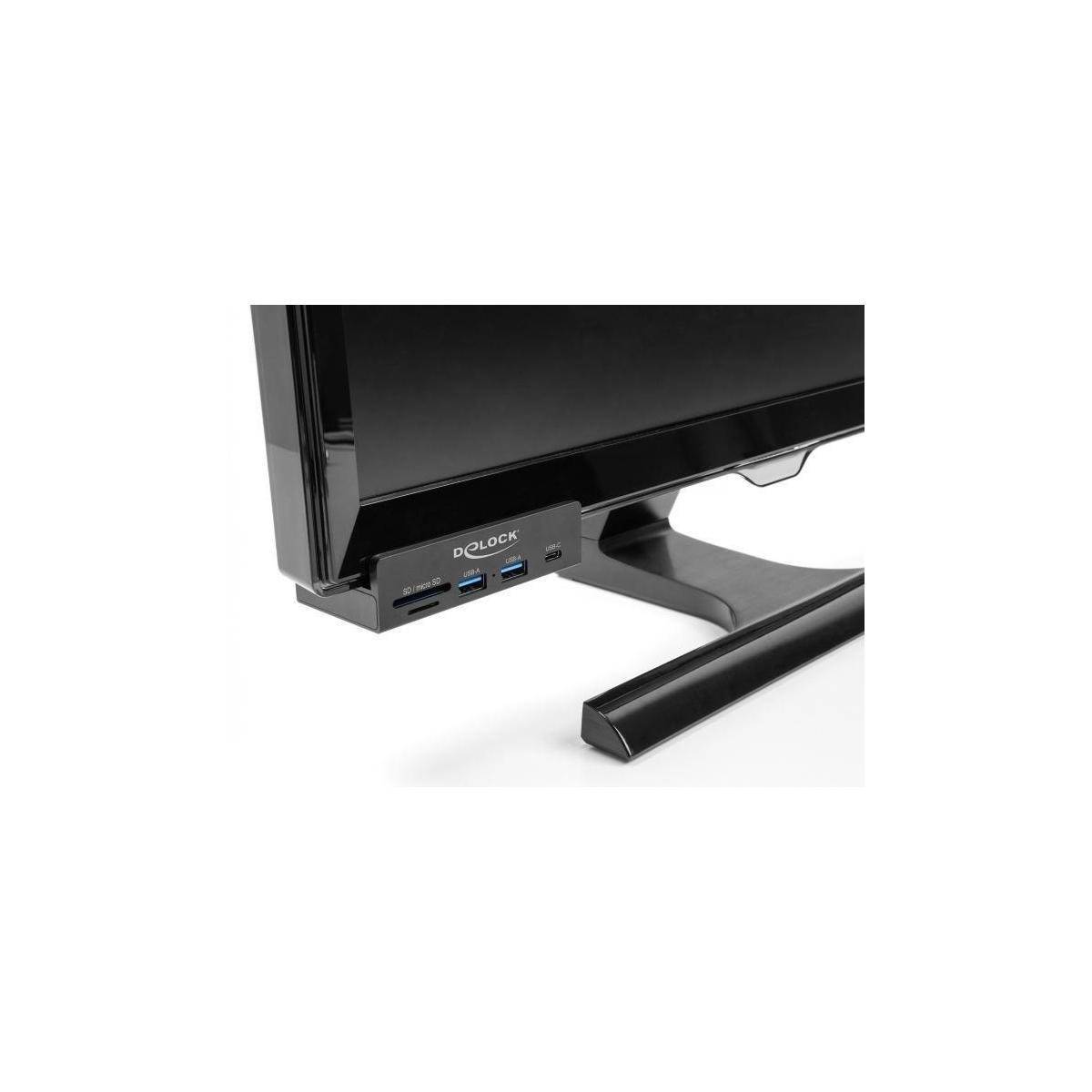

Hub with mounting option
Due to the included USB cable and the locking screw, this Delock hub is particularly suitable for easy mounting on a monitor or desk. This means that the hub is always at the same location. In addition, the USB devices can be plugged in with one hand, the hub does not have to be held additionally.
The additional USB-C™ socket can supply power to devices connected to the USB female ports of the hub if the power supply of the host device is insufficient. Power supply via a separate power supply is possible up to 5 V and 3 A. Specification • Connectors:
1 x USB 5 Gbps Type-A female (Host)
2 x USB 5 Gbps Type-A female (Device)
1 x USB 5 Gbps USB Type-C™ female (Device)
1 x SD slot
1 x Micro SD slot
1 x USB Type-C™ female (optional for power supply)
• Chipset: Genesys Logic GL3510, GL3224
• Data transfer rate up to 5 Gbps
• It can only be used one memory card, not both at the same time
• The Card Reader supports following memory cards:
1. Slot Secure Digital
SD, SD3.0 UHS-I, SD High Capacity (SDHC), SD Ultra, SDHC Ultra, SDXC, MMC-I,
MMC-II, MMC 4.0, Mini SD, Mini SDHC, MMCmobile, RS-MMC, RS-MMC 4.0
2. Slot Micro Secure Digital
Micro SD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• 1 x LED indicator

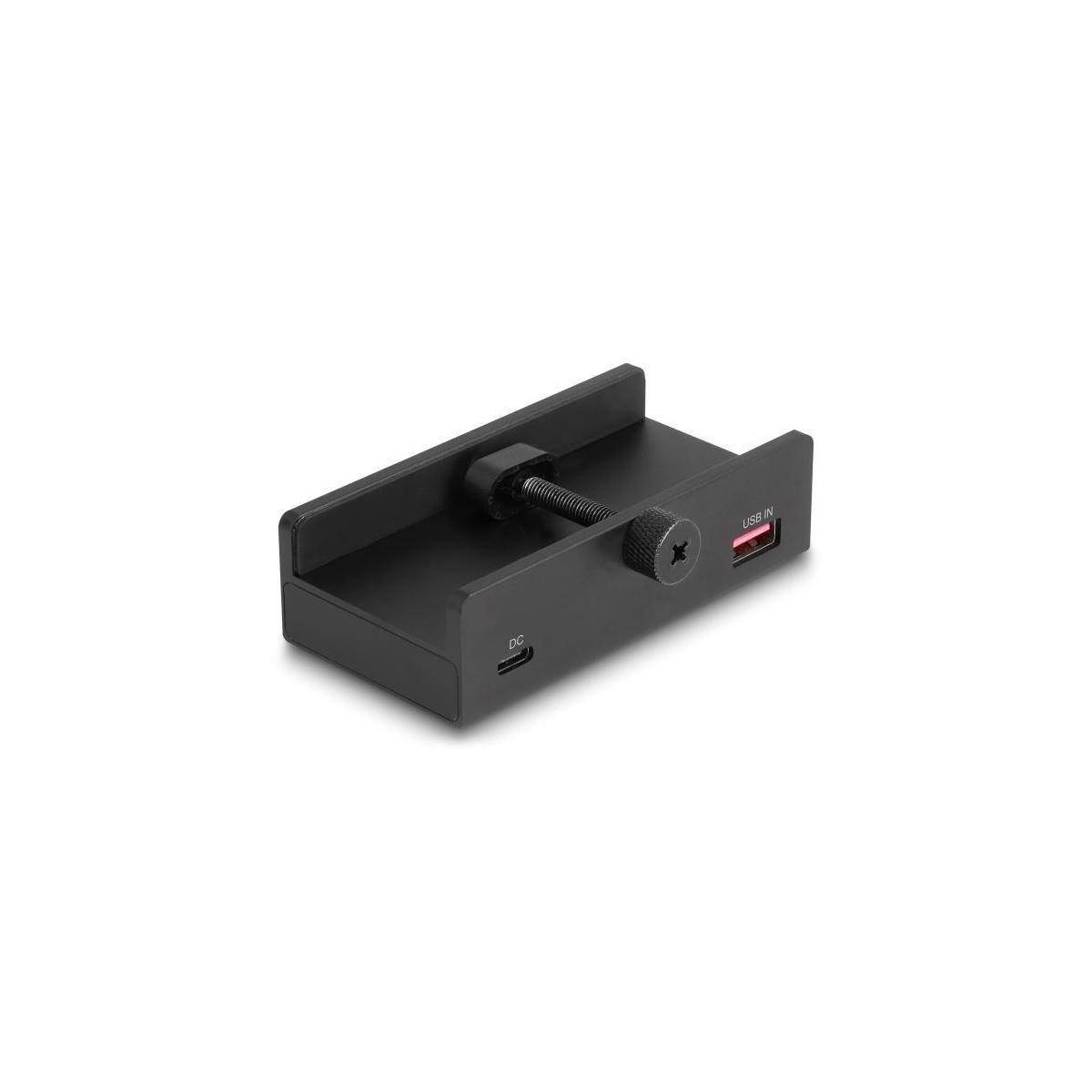

• Locking screw with silicone pad
• Width of the opening: ca. 5 to 30 mm
• Housing material: aluminium / plastic
• Dimensions (LxWxH): ca. 92 x 46 x 23 mm
• Colour: black
• Plug & Play System requirements • Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11 Package content • Hub USB

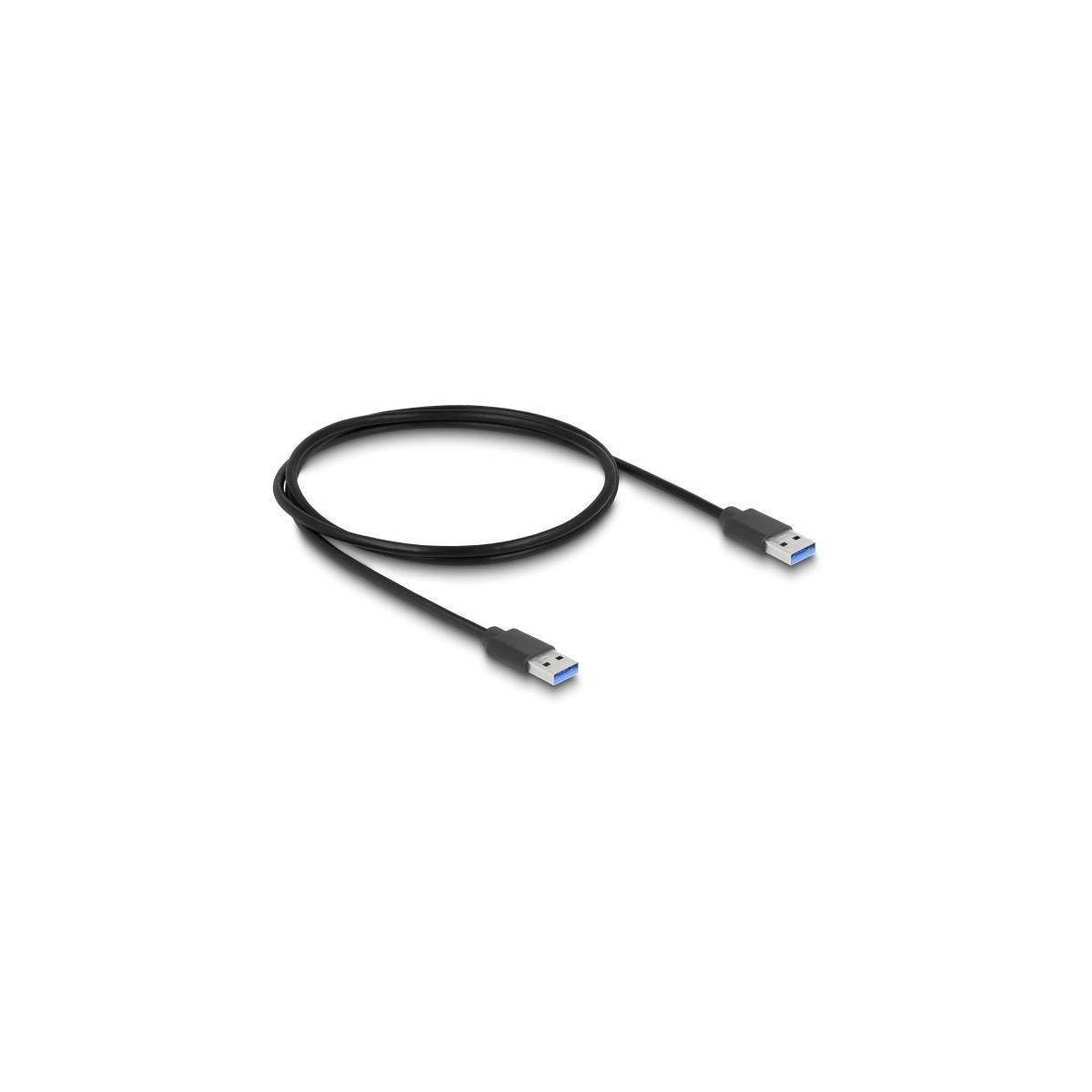

• 1 x cable USB A male to USB A male, length ca. 1.15 m
• User manual
Integrated Card Reader
In addition, the hub with integrated card reader expands a PC or laptop by an SD and a Micro SD slot via the USB Type-A connection.
Hub with mounting option
Due to the included USB cable and the locking screw, this Delock hub is particularly suitable for easy mounting on a monitor or desk. This means that the hub is always at the same location. In addition, the USB devices can be plugged in with one hand, the hub does not have to be held additionally.
The additional USB-C™ socket can supply power to devices connected to the USB female ports of the hub if the power supply of the host device is insufficient. Power supply via a separate power supply is possible up to 5 V and 3 A. Specification • Connectors:
1 x USB 5 Gbps Type-A female (Host)
2 x USB 5 Gbps Type-A female (Device)
1 x USB 5 Gbps USB Type-C™ female (Device)
1 x SD slot
1 x Micro SD slot
1 x USB Type-C™ female (optional for power supply)
• Chipset: Genesys Logic GL3510, GL3224
• Data transfer rate up to 5 Gbps
• It can only be used one memory card, not both at the same time
• The Card Reader supports following memory cards:
1. Slot Secure Digital
SD, SD3.0 UHS-I, SD High Capacity (SDHC), SD Ultra, SDHC Ultra, SDXC, MMC-I,
MMC-II, MMC 4.0, Mini SD, Mini SDHC, MMCmobile, RS-MMC, RS-MMC 4.0
2. Slot Micro Secure Digital
Micro SD, Micro SDHC, Micro SDHC Ultra, T-Flash, MMCmicro
• 1 x LED indicator
• Locking screw with silicone pad
• Width of the opening: ca. 5 to 30 mm
• Housing material: aluminium / plastic
• Dimensions (LxWxH): ca. 92 x 46 x 23 mm
• Colour: black
• Plug & Play System requirements • Chrome OS
• Linux Kernel 5.15 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11 Package content • Hub USB
• 1 x cable USB A male to USB A male, length ca. 1.15 m
• User manual
