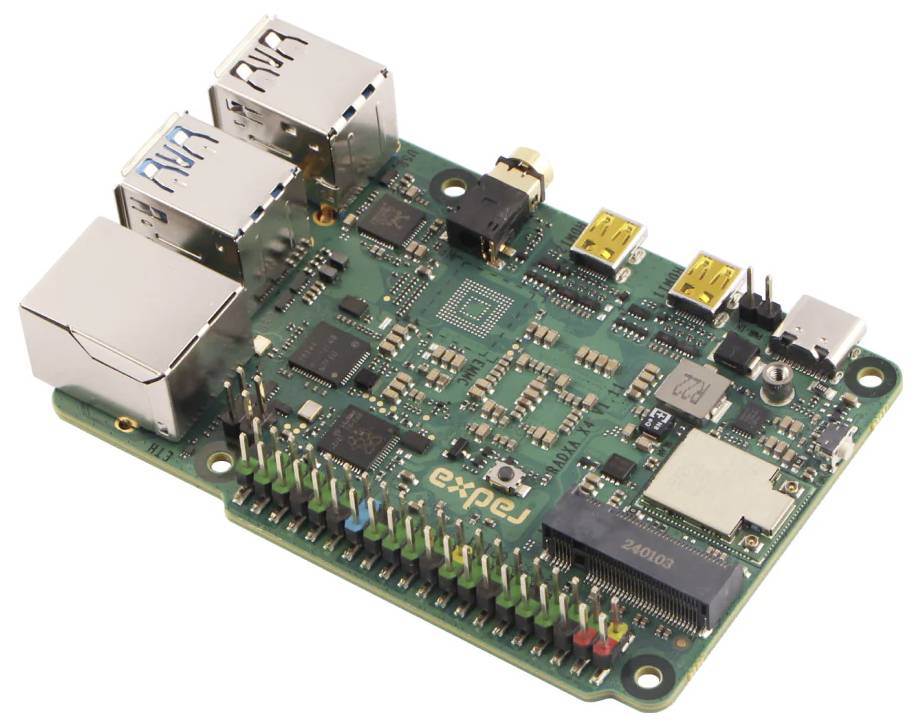

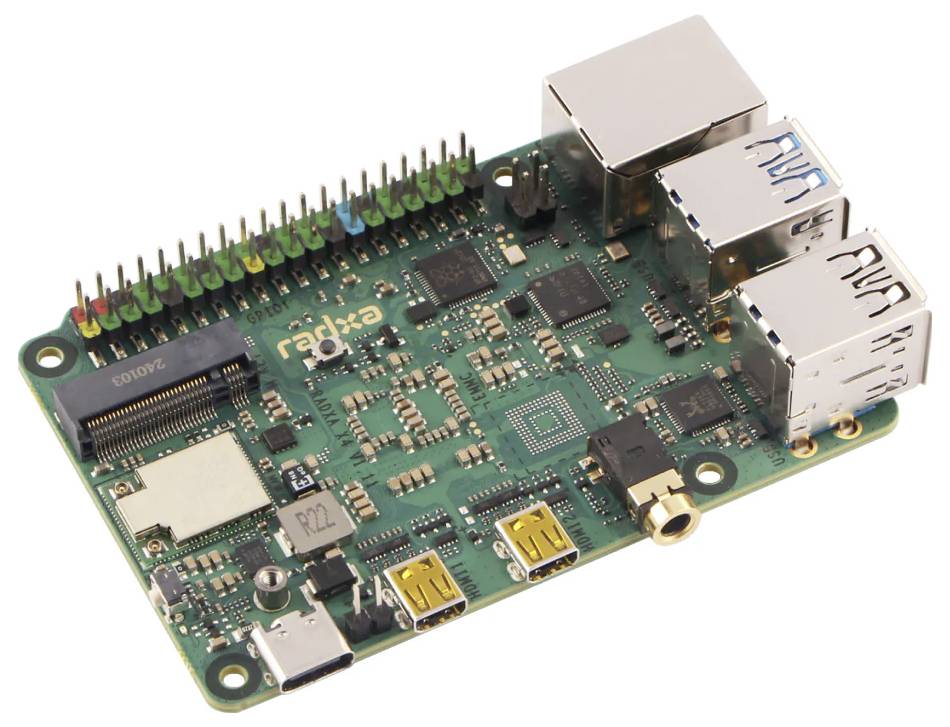

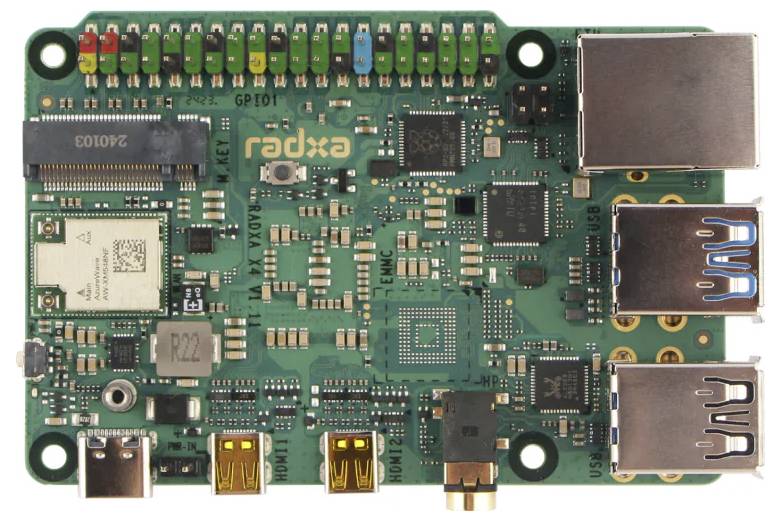

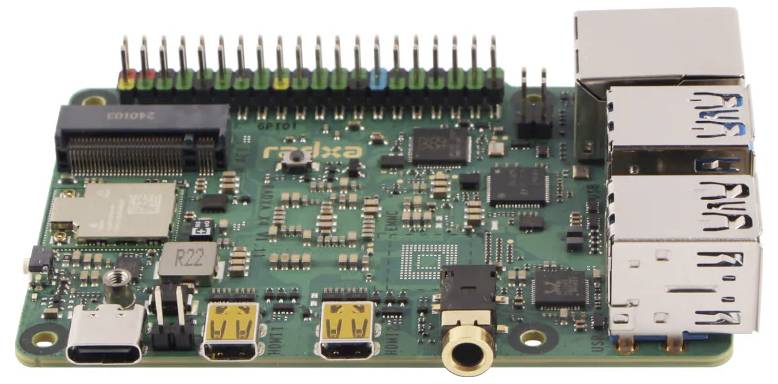

Gebruiksaanwijzingen en veiligheidsinformatie 3331284 ALLNET Radxa X4 - Intel N100 Single Board Computer 4GB 32GB EMMC (RS866-D4E32H1)
Omschrijving
Introduction The ALLNET Radxa X4 is a compact Intel N100 single board computer designed for developers, makers, and IT enthusiasts seeking reliable performance in a small footprint. With 4GB of RAM and 32GB of eMMC storage, it’s ready for a variety of projects—from home servers to edge computing tasks. Key Features & Design * Processor: Intel N100 for capable everyday computing * Memory: 4GB RAM to support multitasking and responsive applications * Storage: 32GB eMMC flash for quick boot times and local data storage * Model: RS866-D4E32H1 * Form Factor: All-in-one single board computer (SBC) designed for versatile use * Platform: Compact, ready-to-use board suitable for a range of projects and experiments Performance / Benefits Built around the Intel N100, the Radxa X4 delivers reliable performance for everyday tasks, media playback, and lightweight workloads. The 4GB of RAM and 32GB of integrated eMMC storage provide a solid foundation for quick boot times and smooth operation, helping you move from idea to implementation faster. This board is an excellent choice for DIY projects, home labs, edge computing, and learning environments where a compact, dependable SBC is required.
Uitvoering
SPI-Flash voor BIOS
Dubbele weergave
Uitvoer via 2 micro-HDMI-poorten met maximaal 4Kp60
3,5 mm hoofdtelefoonaansluiting met microfooningang
IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) en Bluetooth 5.2 met BLE
IEEE 802.11 a/b/g/n/ac (WiFi 5) en Bluetooth 5.0 met BLE
1x M.2 M Key connector met PCIe 3.0 4-Lane voor M2 2230 NVMe SSD
3x USB 3.0 5 Gbps type A HOST-aansluitingen
1x USB 2.0 type A HOSTAANSLUITING
1x 2,5 GbE LAN-poort met PoE-ondersteuning (via optionele PoE-hoed)
De 40-polige uitbreidingsstrip, die via de RP2040 wordt geleverd, is compatibel met veel accessoires die voor de SBC-markt zijn ontwikkeld.
Tot 2x UART
Tot 2x SPI
Tot 2 x I2C
Tot 16x PWM
Tot 8 x PIO (Programmable IO)
1 x 5 V DC stroomingang/-uitgang
2 x 3,3V DC-stroomuitgang
RTC-batterijsokkel
2-polige 1,25 mm ventilatorstekkerdoos
1x power-toets
1x BOOTSEL-toets voor RP2040
USB type-C PD versie 2.0 met 12V/2A (alternatief via PoE)
Grootte: 58 mm x 85 mm
Werkingstemperatuur: 0 °C tot 60°C
Certificering: FCC, CE, RoHS
Opmerkingen
HDMI is een geregistreerd handelsmerk van HDMI Licensing L.L.C.
Bluetooth is een geregistreerd handelsmerk van Bluetooth SIG, Inc.
