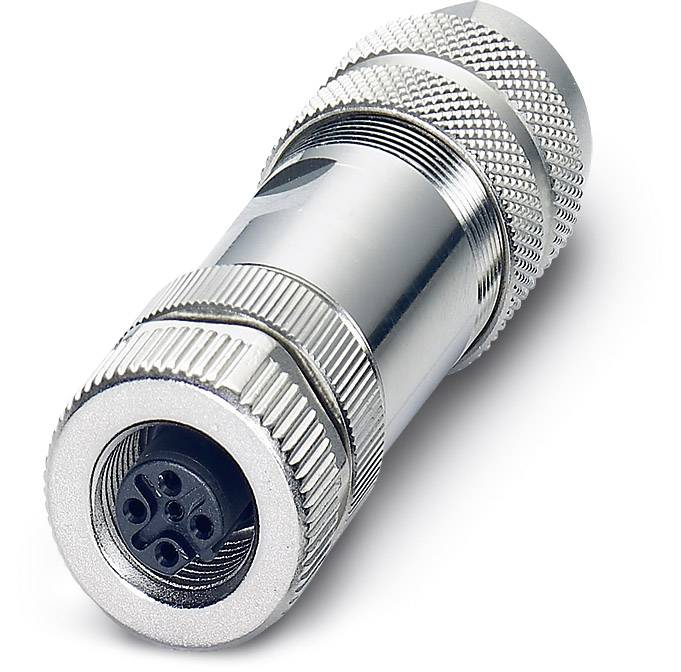

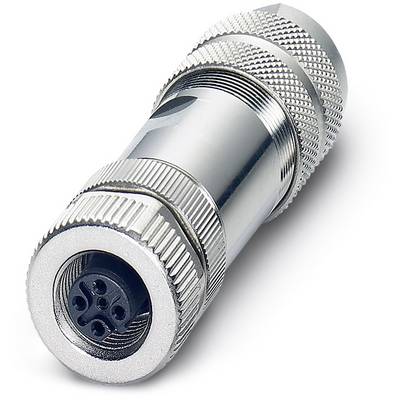

Phoenix Contact 1401097 Sensor/actuator dataconnector M12 Aantal polen (sensoren): 5 Bus, recht 1 stuk(s)
EAN:
Fabrikantnummer:
Artikelnummer:
91 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal (Stuk(s))
Besparing
Verpakkingsprijs (excl. btw)
1
-
€ 36,36
3
3% = € 1,19
€ 35,17
5
5% = € 1,66
€ 34,70
10
5% = € 1,97
€ 34,39
25
6% = € 2,33
€ 34,03
Staffelprijzen zijn afhankelijk van de verkoper
Besparing € 0,00
Aantal
Totaal (€ 36,36 / Stuk)
€ 36,36
excl. btw
& Gratis verzending met
Incl. 14 dagen retourrecht (30 dagen met)
Technische specificaties
- Type
SACC-M12FSB-5CON-PG9 SH XL PB
- Soortnaam
Sensor/actuator dataconnector
- Bouwtype
Bus, recht
- Stekkernorm
BUS-connector
- Aansluiting A
M12-bus, recht
- Aansluiting B
Confectioneerbaar
- Aantal polen
5
- Nominale spanning
48 V/AC
60 V/DC
- Nominale stroom
4 A
- Nominale stroom (afgerond)
4 A
- Aansluitdoorsnede (max.)
0.75 mm²
- Buiten-Ø
20.2 mm
- Kabeldoorsnede (sensor- en actorkabels)
0.75 mm²
- Aansluiting
Schroefklem
- Soort schroefdraad
M12
- Soort schroefdraad kabelaansluiting en montage
PG11
- Codering
B
- Contactmateriaal
Goud
- Contactoppervlakte
Goud
IP67
- Bijzonderheden
Beschermd
- Min. temperatuur
-40 °C
- Max. temperatuur
+85 °C
- Soort sluiting
Schroef
- Fabrikantnr.
1401097
- Inhoud
1 stuk(s)
- Kabeldiameter tot
10 mm
- Kabeldiameter vanaf
8 mm
- Kabel-Ø
8 - 10 mm
Other
48 V
TRUE
Other
Zinc
Other
85-85 °C
V0
Screw connection
Gold
II
3
Straight
0.75-0.75 mm²
FALSE
4 A
100
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 718873 Phoenix Contact 1401097 Sensor/actuator dataconnector M12 Aantal polen (sensoren): 5 Bus, recht 1 stuk(s)
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 718873 Phoenix Contact 1401097 Sensor/actuator dataconnector M12 Aantal polen (sensoren): 5 Bus, recht 1 stuk(s)
Omschrijving
Bussysteem-stekkerverbinding, rechte bus, 5-polig, M12 afgeschermd, vergulde contacten, B-codering, schroefaansluiting, metaalkarteling, kabelschroefverbinding Pg11
