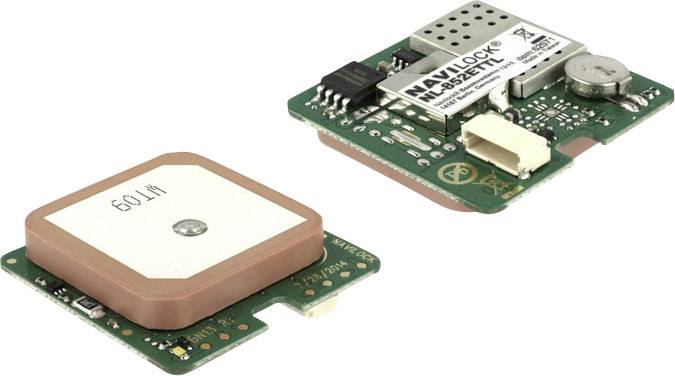

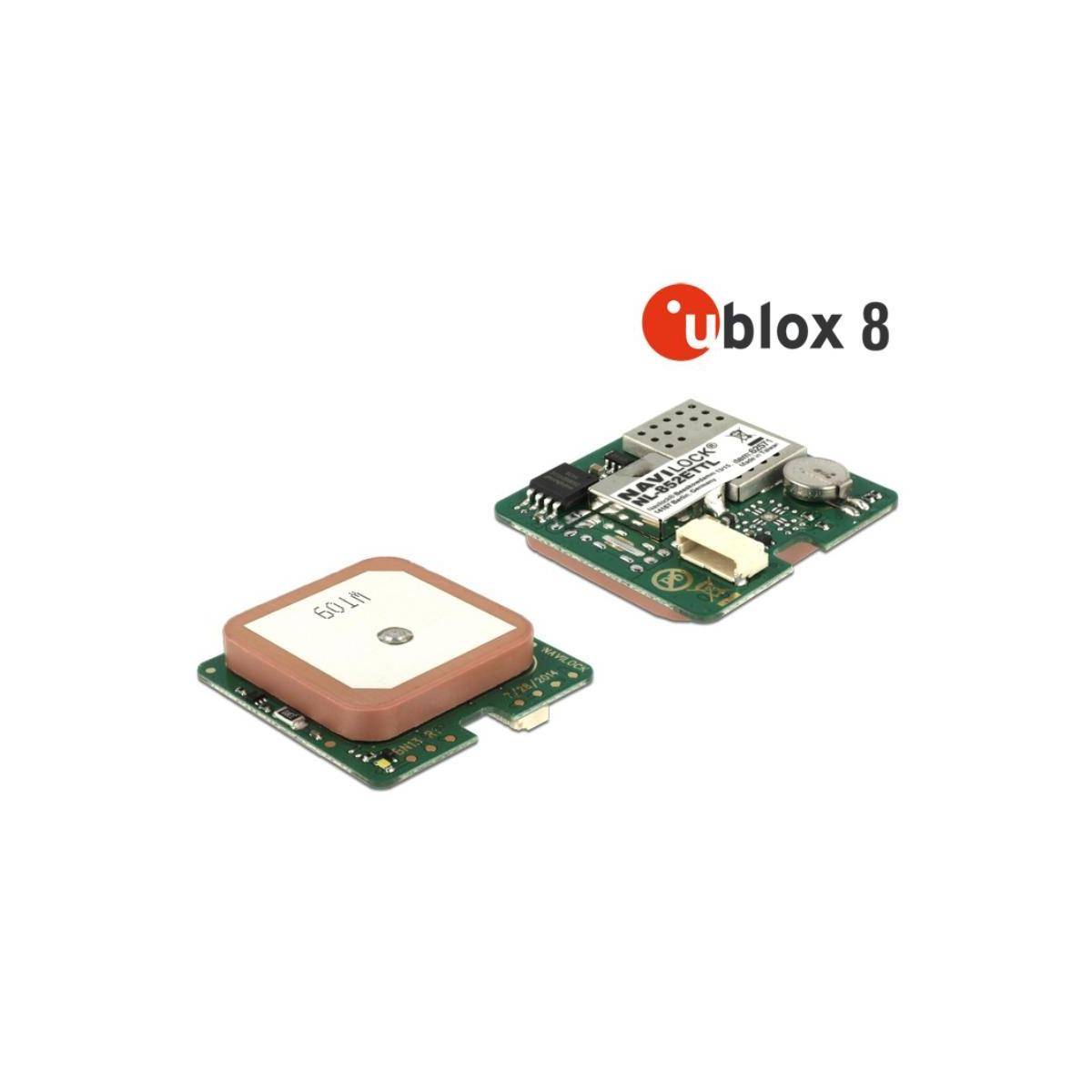

Navilock NL-852ETTL PPS u-blox 8 GNSS Engine Modul
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
53 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 90,79
excl. btw
& Inclusief 14 dagen retourrecht
Navilock NL-852ETTL PPS u-blox 8 GNSS Engine Modul
Highlights & Details
- u-blox 8 UBX-M8030-KT chipset
- Verwerkt de signalen van wel 72 satellieten gelijktijdig
- Aansluiting: WTB serieel TTL
Technische specificaties
- Frequenties:
- GPS: L1, 1575,4200 MHz
- GLONASS: L1, 1602,5625 ~ 1615,5000 MHz
- BEIDOU COMPASS: B1, 1561,0980 MHz
- GALILEO E1, 1575,4200 MHz
- QZSS L1, 1575,4200 MHz
- Update-snelheid:
- Eenvoudig GNSS: 18 Hz (bijv. B. GPS solo)
- Meervoudig GNSS 10 Hz (bijv. B. GPS+GLONASS)
- Bedrijfstemperatuur: -20 °C tot 60 °C
- Koude start in ca. 26 seconden
- Standby in ca. 1 seconde
- Soortnaam
GPS-ontvanger
- Interfaces
USB
- Hoogte
8 mm
- Breedte
30 mm
- Diepte
30 mm
- Gewicht
0.025
- Afm.
(b x h x d) 30 x 8 x 30 mm
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kabeltoepassing
Apparaat (koud)
- Producttype
Zubehör PDA
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 1409237 Navilock NL-852ETTL PPS u-blox 8 GNSS Engine Modul
Omschrijving
Description GNSS modules are fully assembled receiver with patch antenna, backup battery etc .. This version uses TTL 3.30 V. Specification • Connector: WTB serial TTL
• Chipset: u-blox 8 UBX-M8030-KT
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0,5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO E1, 1575.4200 MHz
QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS + GLONASS)
• Sensitivity: max –167 dBm
• LED-indicator for GPS-status
• Operating temperature:
-40 °C ~ 85 °C without battery
-20 °C ~ 60 °C with battery
• Power supply: 5 Volt
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
2.5 m CEP (Circular Error Probable) and
2.0 m CEP with SBAS
• Dimension (LxWxH): ca. 30.0 x 30.0 x 7.90 mm System requirements • Device with free TTL input. Package content • GNSS module
• Chipset: u-blox 8 UBX-M8030-KT
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0,5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO E1, 1575.4200 MHz
QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS + GLONASS)
• Sensitivity: max –167 dBm
• LED-indicator for GPS-status
• Operating temperature:
-40 °C ~ 85 °C without battery
-20 °C ~ 60 °C with battery
• Power supply: 5 Volt
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy:
2.5 m CEP (Circular Error Probable) and
2.0 m CEP with SBAS
• Dimension (LxWxH): ca. 30.0 x 30.0 x 7.90 mm System requirements • Device with free TTL input. Package content • GNSS module
Uitvoering
- Ondersteunt AssistNow online/offline, SBAS, WAAS, EGNOS, QZSS en MSAS
- Ondersteunt NMEA 0183 protocollen: GGA, GSA, GSV, RMC en VTG
- Auto baud rate tot 115.200 bps
- Gevoeligheid max. -167 dBm
- LED-aanduiding voor GPS-status
- Positienauwkeurigheid: 2,5 m CEP (Circular Error Probable) en 2 m CEP met SBAS
Omvang van de levering
- Navilock NL-852ETTL
- CD.
