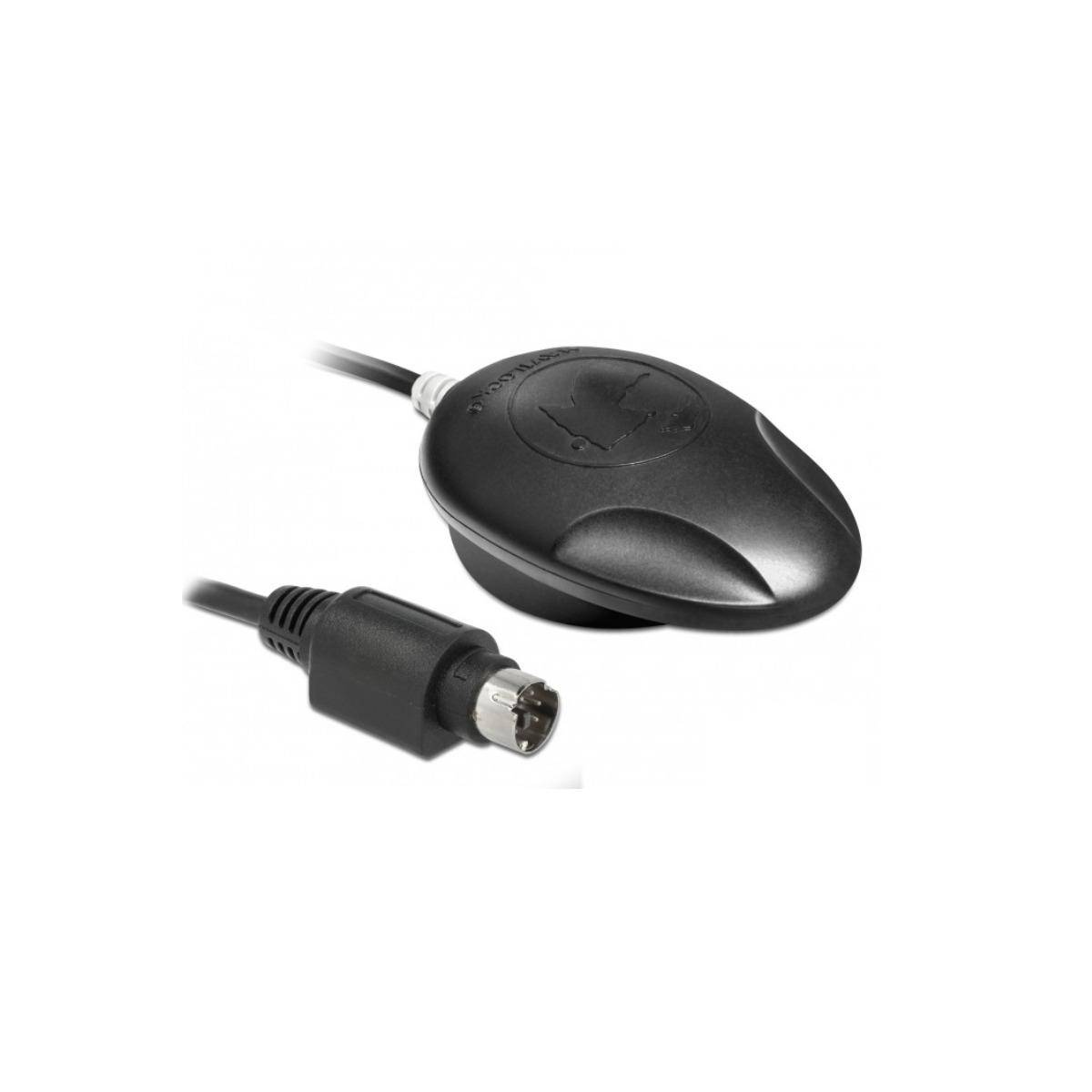

Navilock NL-8003P MD6 Serial PPS Multi GNSS Receiver u-blox 8 1.5 m
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
14 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 143,49
excl. btw
& Gratis verzending*
Inclusief 14 dagen retourrecht
Navilock NL-8003P MD6 Serial PPS Multi GNSS Receiver u-blox 8 1.5 m
Technische specificaties
- Bijzonderheden
Galileo ondersteuning
- Afm.
(b x h x d) 4.5 x 2.2 x 6.5 cm
- Breedte
4.5 cm
- Hoogte
2.2 cm
- Diepte
6.5 cm
- Gewicht
0.157
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Toetsenbordlayout
QWERTY, Engels
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 807303485 Navilock NL-8003P MD6 Serial PPS Multi GNSS Receiver u-blox 8 1.5 m
Omschrijving
Description The MD6 serial multi GNSS Receiver based on u-blox 8 chipset has a built-in antenna for high sensitivity. You can use this GNSS Receiver with a notebook and a suitable routing software for navigation. The MD6 universal connector enables the connection of optional USB or serial connecting cables. Specification • Connector:
MD6 Navilock plug (RS-232) (USB or serial cable are optional available)
• u-blox 8 UBX-M8030-KT chipset
• Frequency:
GPS: L1, 1575.4200 MHz
GLONASS: L1, 1602 (k x 0,5625) MHz
BEIDOU COMPASS: B1, 1561.0980 MHz
GALILEO E1, 1575.4200 MHz
QZSS L1, 1575.4200 MHz
• Accepts the signals of up to 72 satellites at the same time
• Supports AssistNow online/offline,
SBAS (WAAS, EGNOS, QZSS and MSAS)
• Supports NMEA 0183 protocols: GGA, GSA, GSV, RMC, VTG
• Auto Baud Rate up to 115200 bps
• PPS signal on pin 6 (LVTTL 3.3 V)
• Update rate:
single GNSS: 18 Hz (e.g. GPS solo)
multi GNSS: 10 Hz (e.g. GPS+GLONASS)
• Sensibility max. –167 dBm
• IPX6 protection class
• Magnetic, non-slip on the bottom
• LED-indicator for GPS-status
• Operating temperature: -20 °C ~ 60 °C
• Power supply: 5 Volt
• Current consumption: max. 45 mA
• Cold start in ca. 26 seconds
• Hot start in ca. 1 second
• Positioning accuracy: 2.5 m CEP (Circular Error Probable) and
2 m CEP with SBAS
• Cable length: ca. 1.5 m
• Dimensions (LxWxH): ca. 65 x 45 x 22 mm System requirements • Windows Vista/7/8/8.1/10, Linux Kernel 2.6, Mac OS X
• MD6 connection cable Package content • MD6 serial receiver
• Driver CD
• User manual on CD ROM
