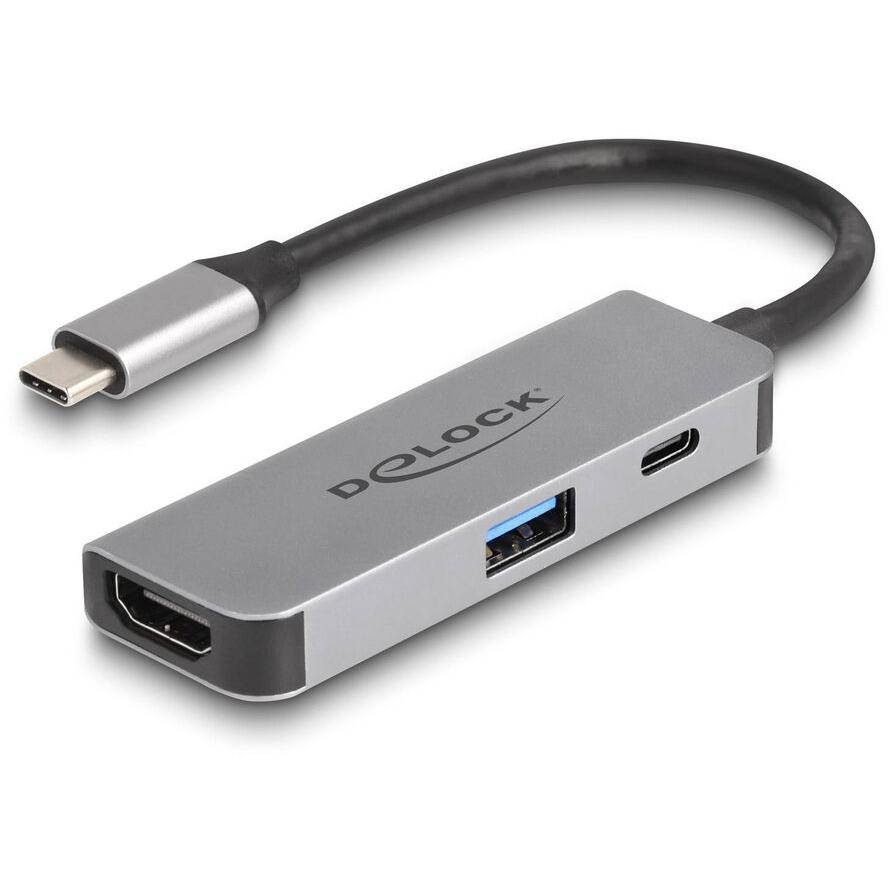

Delock USB Type-C™ Adapter to HDMI 4K 60 Hz with USB Type-A and USB Type-C™ PD 95 W
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
61 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 38,74
excl. btw
& € 5,95
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Aansluiting A
HDMI-stekker
- Aansluiting B
HDMI-stekker
- Interfaces
USB-C
- Geschikt voor
Universal
- Kabellengte
0 mm
- Kleur (specifiek)
Meerdere kleuren
- Bijzonderheden
USB-C Power Delivery
- Gewicht
0.072
- Geschikt voor
MacBook
- Geschikt voor merk
Universeel
- Geschikt voor serie
MacBook
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kabeltoepassing
Apparaat (koud)
- Aansluitingen
RJ45
- Bijzonderheden
Met laadbus
- Aansluittype
USB 3.2 Gen 1 (USB 3.0)
Kabel
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 911669277 Delock USB Type-C™ Adapter to HDMI 4K 60 Hz with USB Type-A and USB Type-C™ PD 95 W
Omschrijving

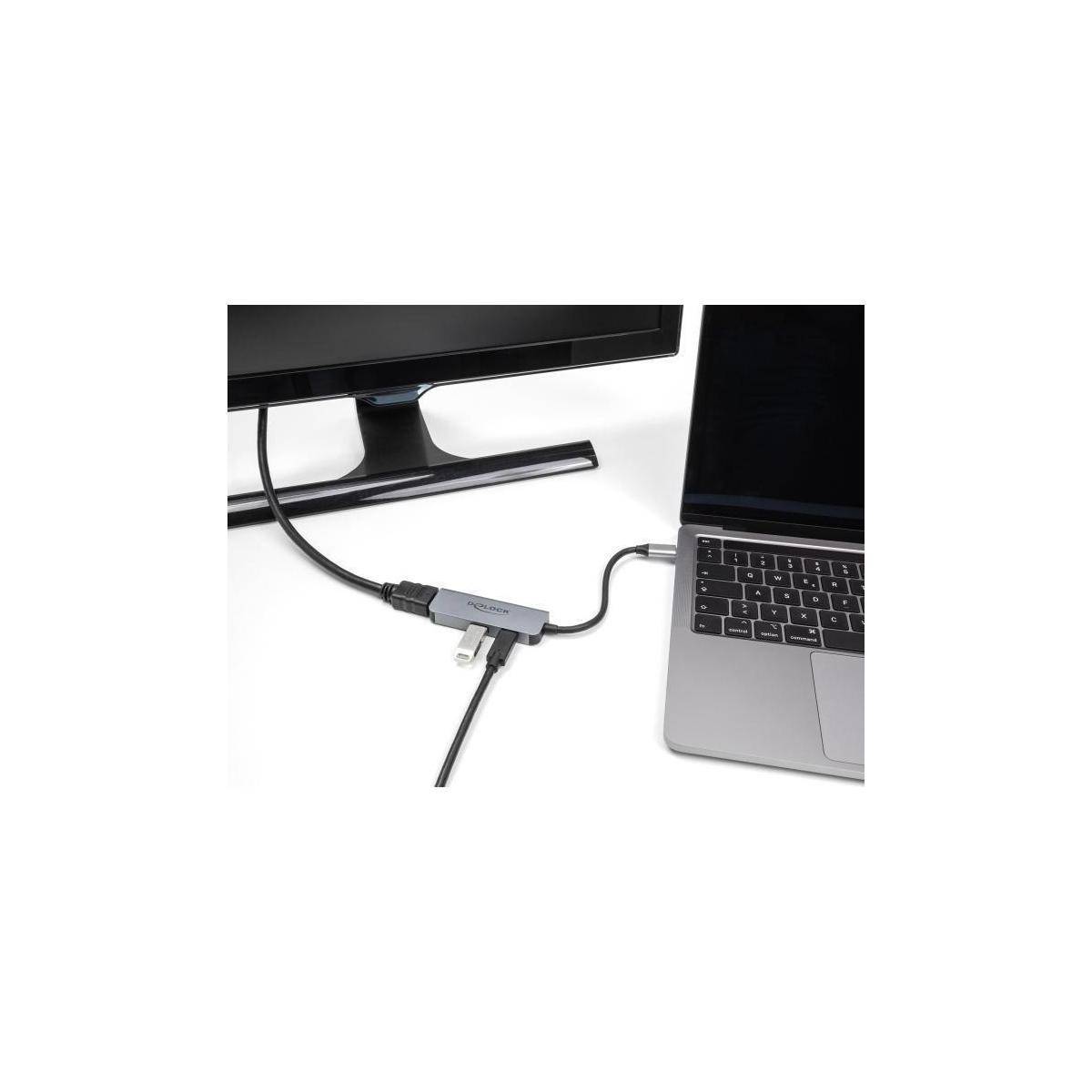

Description This adapter by Delock is suitable for the connection of a HDMI monitor to a computer with USB-C™ interface and DisplayPort alternate mode support. Thus, the adapter can be connected to different laptops like MacBook, Chromebook and similar. In addition, the adapter can also be operated on a Thunderbolt™ 3 or Thunderbolt™ 4 interface.
USB Power Delivery (USB PD 3.0) support up to 95 watt
This adapter has a USB Type-C™ Power Delivery port. If this port is connected to the power supply of the laptop or tablet, the host device is charged with up to 95 watts during operation. Specification • Connectors:
1 x USB Type-C™ male
1 x HDMI female
1 x USB 10 Gbps Type-A female
1 x USB Type-C™ Power Delivery female
• DisplayPort 1.4 and High Speed HDMI with Ethernet (HEC) specification
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and the connected hardware)
• Transmission of audio and video signals
• Output power for host: max. 95 W
• Supports 3D displays
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Bootable
• USB bus powered
• Plug & Play
• Metal housing
• Cable length without connectors: ca. 15 cm
• Colour: grey System requirements • Android 13.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 13.1 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• iPhone 15 Pro or above
• Surface Pro 7
• Device with a free USB Type-C™ port and DisplayPort alternate mode or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port Package content • USB-C™ to HDMI Adapter + USB
• User manual
