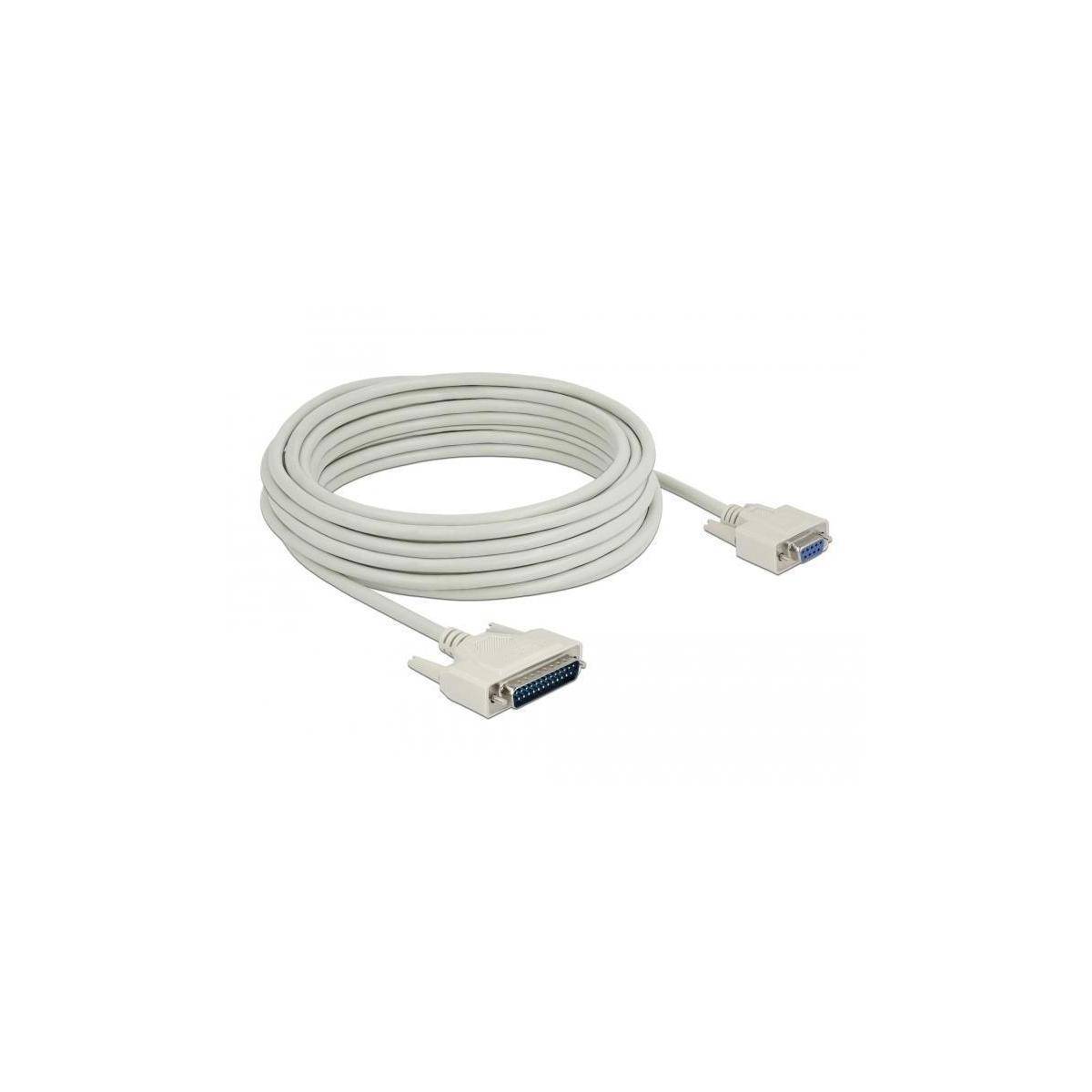

Delock Serial Cable D-Sub 25 male to D-Sub 9 female 10 m
EAN:
Fabrikantnummer:
Artikelnummer:
16 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 21,58
excl. btw
& Inclusief 14 dagen retourrecht
Delock Serial Cable D-Sub 25 male to D-Sub 9 female 10 m
Technische specificaties
- Soortnaam
Apparaat (koud) Aansluitkabel
- Aansluittype
VGA
- Kabellengte
10 m
- Kleur (specifiek)
Meerdere kleuren
- Stekkeruitvoering
Schroefbaar
- Kabeltoepassing
Apparaat (koud)
- Uitvoering (kabel)
Aansluitkabel
- Model
Rond
- Aansluitingen
RJ45
- UKCA
Ja
Omschrijving
Description This serial cable by Delock is suitable as a connection cable for various devices with D-Sub 25 pin and D-Sub 9 pin connector.
Specification • Connectors:
1 x D-Sub 25 pin male >
1 x D-Sub 9 pin female
• Pin assignment:
D-Sub 9 --- D-Sub 25
1 --- 8
2 --- 3
3 --- 2
4 --- 20
5 --- 7
6 --- 6
7 --- 4
8 --- 5
9 --- 22
• Connectors with screws
• Cable gauge: 28 AWG
• Cable diameter: ca. 5 mm
• Operating temperature: 0 °C ~ 50 °C
• Fire-resistance rating: VW-1
• Length incl. connectors: ca. 10 m
• Colour: beige System requirements • A free D-Sub 25 pin female Package content • Serial cable
Specification • Connectors:
1 x D-Sub 25 pin male >
1 x D-Sub 9 pin female
• Pin assignment:
D-Sub 9 --- D-Sub 25
1 --- 8
2 --- 3
3 --- 2
4 --- 20
5 --- 7
6 --- 6
7 --- 4
8 --- 5
9 --- 22
• Connectors with screws
• Cable gauge: 28 AWG
• Cable diameter: ca. 5 mm
• Operating temperature: 0 °C ~ 50 °C
• Fire-resistance rating: VW-1
• Length incl. connectors: ca. 10 m
• Colour: beige System requirements • A free D-Sub 25 pin female Package content • Serial cable
