Delock Mini PCIe Card > 4 x Serial RS-232
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
44 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 96,70
excl. btw
& Incl. 14 dagen retourrecht

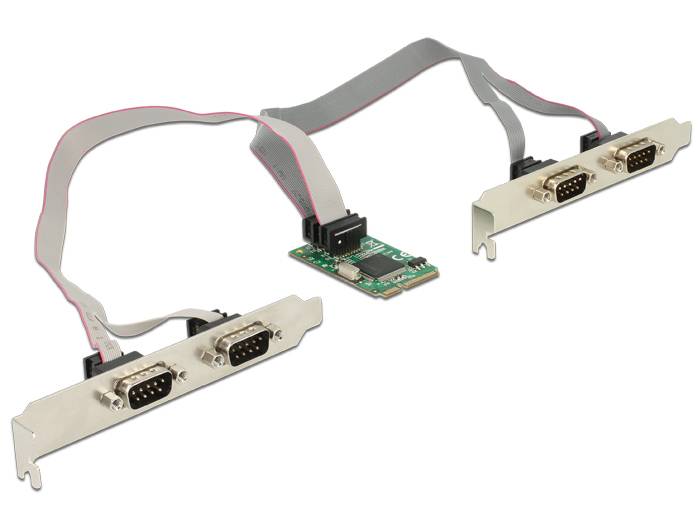

Delock Mini PCIe Card > 4 x Serial RS-232
Technische specificaties
- Poorten & interfacesInternJaHostinterfaceMini PCI ExpressOutput interfaceSerieSoort serieële aansluitingRS-232Seriële poort(en)4UitbreidingskaartstandaardPCI 1.1DesignInternJaMinimale systeemeisenOndersteunt WindowsWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64Ondersteunt LinuxJa
- Soortnaam
Apparaat (koud) Aansluitkabel
- Aansluittype
Serieel
- Aantal aansluitingen A
1 x
- Aansluiting A
Mini-PCI-stekker
- Aantal aansluitingen B
4 x
- Aansluiting B
Mini-PCI-stekker
- Kabellengte
0.30 m
- Kleur (specifiek)
Meerdere kleuren
- Kabeltoepassing
Apparaat (koud)
- Uitvoering (kabel)
Aansluitkabel
- Model
Rond
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 2851307 Delock Mini PCIe Card > 4 x Serial RS-232
Omschrijving
Description This Mini PCIe adapter by Delock expands your system by four additional serial ports, which you can lead out through the slot bracket. You can connect different serial devices like printer, scanner, modem etc. to this adapter. Specification • Connectors:
on the module:
2 x 20 pin pin header male
on the slot bracket: (2 slot brackets)
2 x serial RS-232 DB9 male with nuts
• Chipset: Moschip MCS9904
• Form factor: Mini PCIe full size
• Interface: PCI Express revision 1.1
• Data transfer rate up to 230.4 Kbps
• Compatible with 16C450 / 16C550 UART
• Cable length incl. connectors: ca. 30 cm System requirements • Linux Kernel 3.7 or above
• Windows Vista/Vista-64/7/7-64/8.1/8.1-64/10/10-64/11
• Motherboard with a free Mini PCIe slot with a PCIe interface Package content • Mini PCIe module
• 2 x serial connection cable
• 2 x slot bracket with 2 DB9 ports
• Driver CD
• User manual
