Delock Mini Desktop Patch Panel RJ45 jack 4 port Cat.6A shielded black - for mounting on a table, wall or DIN rail
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
2 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 40,84
excl. btw
& Slechts 2 Stuk(s) beschikbaar
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Delock Mini Desktop Patch Panel RJ45 jack 4 port Cat.6A shielded black - for mounting on a table, wall or DIN rail
Technische specificaties
- Soortnaam
Apparaat (koud) Aansluitkabel
- Aansluittype
RJ45
- Aantal aansluitingen A
4 x
- Aantal aansluitingen B
4 x
- Kleur (specifiek)
Meerdere kleuren
- Bijzonderheden
Afgeschermd
22 bis 26
- Kabeltoepassing
Apparaat (koud)
- Uitvoering (kabel)
Aansluitkabel
- Model
Rond
CAT 6A
- Gewicht
0
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 930277641 Delock Mini Desktop Patch Panel RJ45 jack 4 port Cat.6A shielded black - for mounting on a table, wall or DIN rail
Omschrijving
Description This patch panel by Delock is the ideal solution for small network installations, distributions in switch cabinets or for applications with limited installation space.
Versatile mounting on a table, wall or DIN rail
The distributor can be mounted either on a table, on the wall or on 35 mm wide DIN rails. The clips included in the scope of delivery enable simple DIN rail mounting, ideal for distribution cabinets or industrial environments. Alternatively, direct wall mounting is also possible, e.g. in small technical rooms, distribution boxes or anywhere where no rack is available.

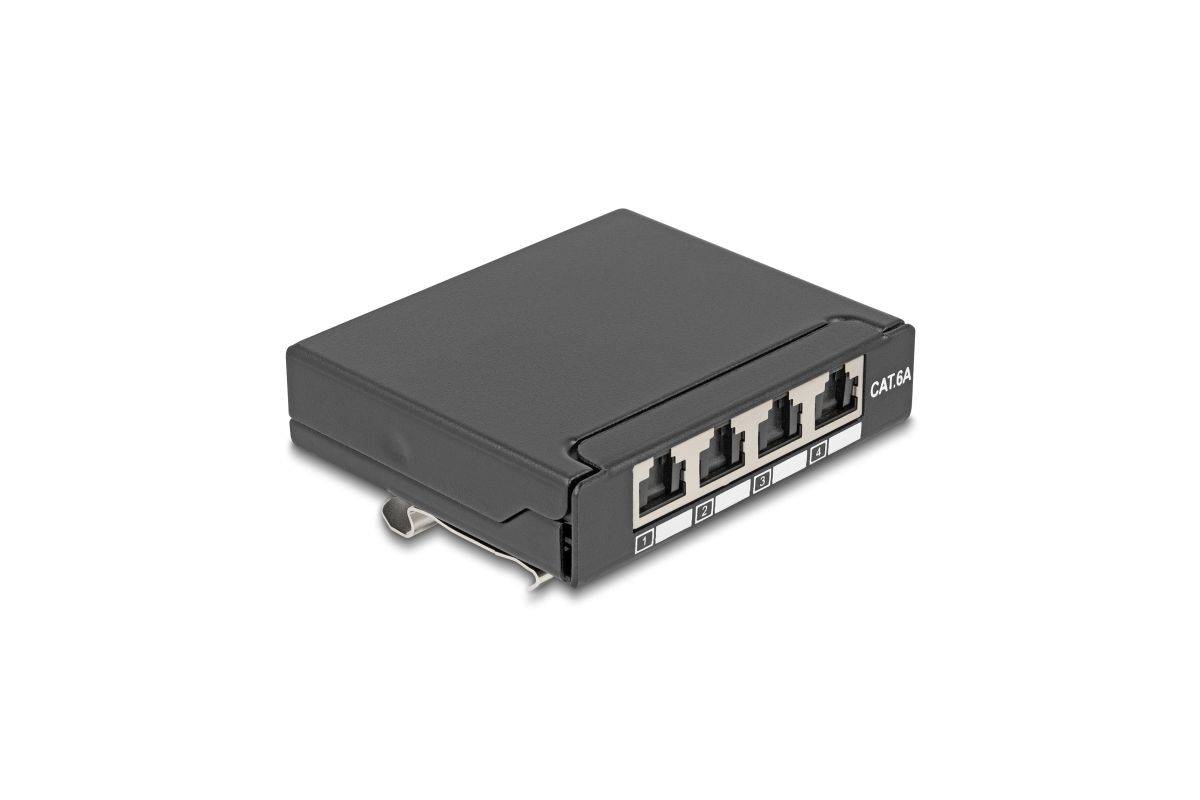

RJ45 jacks with dust protection flaps
The RJ45 jacks are equipped with practical dust protection flaps that protect the contacts from dirt and dust.
Metal housing
The robust black metal housing ensures durable and professional installation. Specification • Connectors:

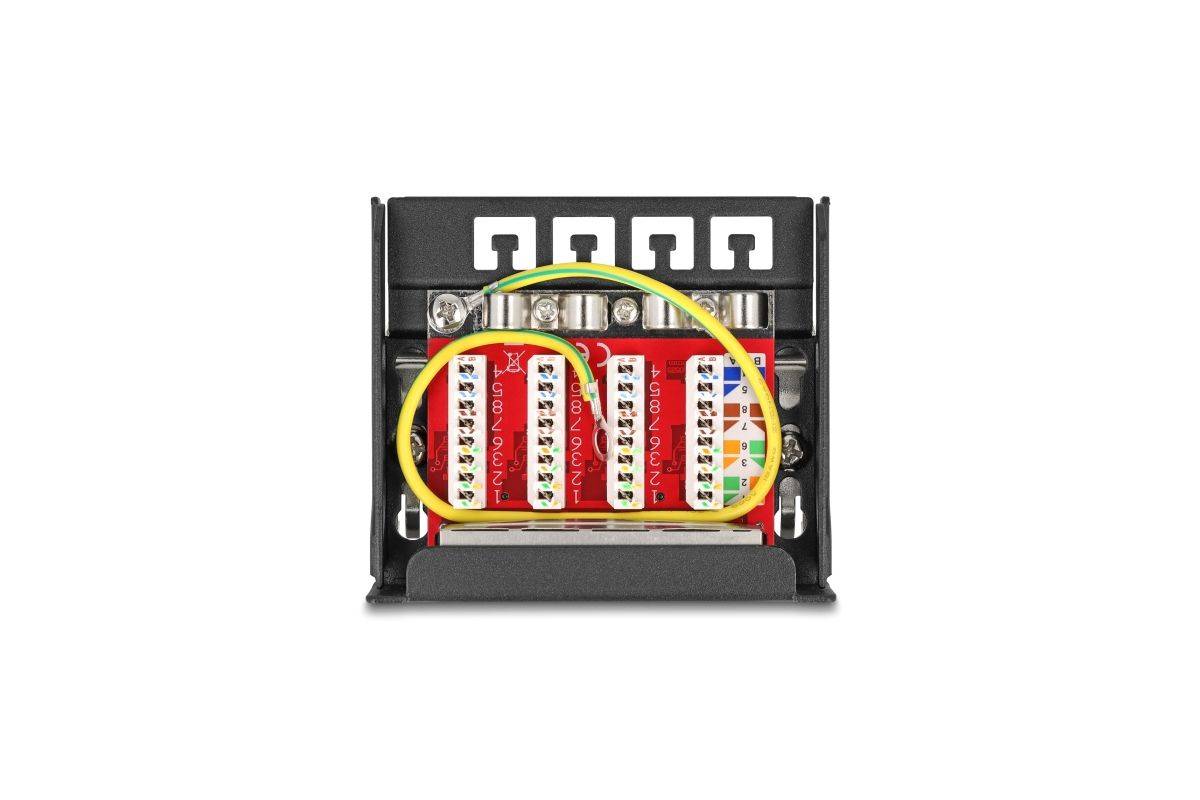

4 x RJ45 jack
4 x LSA block
• Cat.6A specification
• Mounting options:
Desktop mounting
Wall mounting (with drill holes)

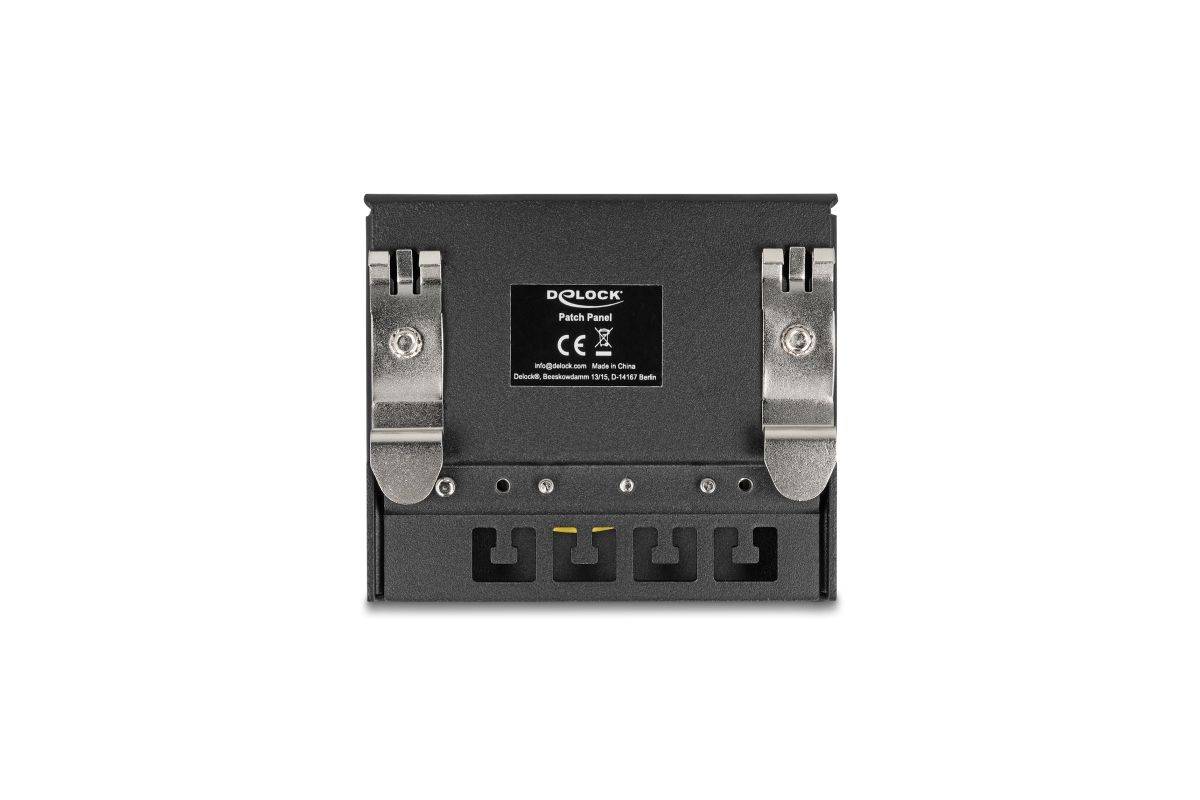

DIN rail mounting 35 mm (clips included)
• Shielded
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• Housing material: metal
• Colour: black
• Dimensions (LxWxH): ca. 93 x 80 x 22 mm Package content • Patch panel
• Ground wire
• 2 x DIN rail clip
• 2 x screw M5 x 6 mm
• 2 x screw 3.7 x 20.0 mm
• 2 x dowel 5.5 x 27.4 mm
• 4 x cable tie 2.5 x 100 mm
Versatile mounting on a table, wall or DIN rail
The distributor can be mounted either on a table, on the wall or on 35 mm wide DIN rails. The clips included in the scope of delivery enable simple DIN rail mounting, ideal for distribution cabinets or industrial environments. Alternatively, direct wall mounting is also possible, e.g. in small technical rooms, distribution boxes or anywhere where no rack is available.
RJ45 jacks with dust protection flaps
The RJ45 jacks are equipped with practical dust protection flaps that protect the contacts from dirt and dust.
Metal housing
The robust black metal housing ensures durable and professional installation. Specification • Connectors:
4 x RJ45 jack
4 x LSA block
• Cat.6A specification
• Mounting options:
Desktop mounting
Wall mounting (with drill holes)
DIN rail mounting 35 mm (clips included)
• Shielded
• TIA-568A/B pinout
• For solid or stranded wire (26 - 22 AWG)
• Housing material: metal
• Colour: black
• Dimensions (LxWxH): ca. 93 x 80 x 22 mm Package content • Patch panel
• Ground wire
• 2 x DIN rail clip
• 2 x screw M5 x 6 mm
• 2 x screw 3.7 x 20.0 mm
• 2 x dowel 5.5 x 27.4 mm
• 4 x cable tie 2.5 x 100 mm
