Delock External USB Type-C™ Dual Combo Enclosure for 2 x M.2 NVMe PCIe or SATA SSD - tool free
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
4 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 90,79
excl. btw
& Gratis verzending*
Slechts 4 Stuk(s) beschikbaar
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Delock External USB Type-C™ Dual Combo Enclosure for 2 x M.2 NVMe PCIe or SATA SSD - tool free
Highlights & Details
Technische specificaties
- Kleur (specifiek)
Meerdere kleuren
- Gewicht
0
- Model
Rond
- Kabellengte
0 cm
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
USB-C bus
- Aantal aansluitingen A
1 x
- Aantal aansluitingen B
2 x
- Toetsenbordlayout
QWERTZ, Duits
- Kabeltoepassing
Apparaat (koud)
- Aansluitingen
RJ45
- Draadloos oplaadbaar
Nee
- Aansluittype
USB 2.0
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 903473455 Delock External USB Type-C™ Dual Combo Enclosure for 2 x M.2 NVMe PCIe or SATA SSD - tool free
Omschrijving

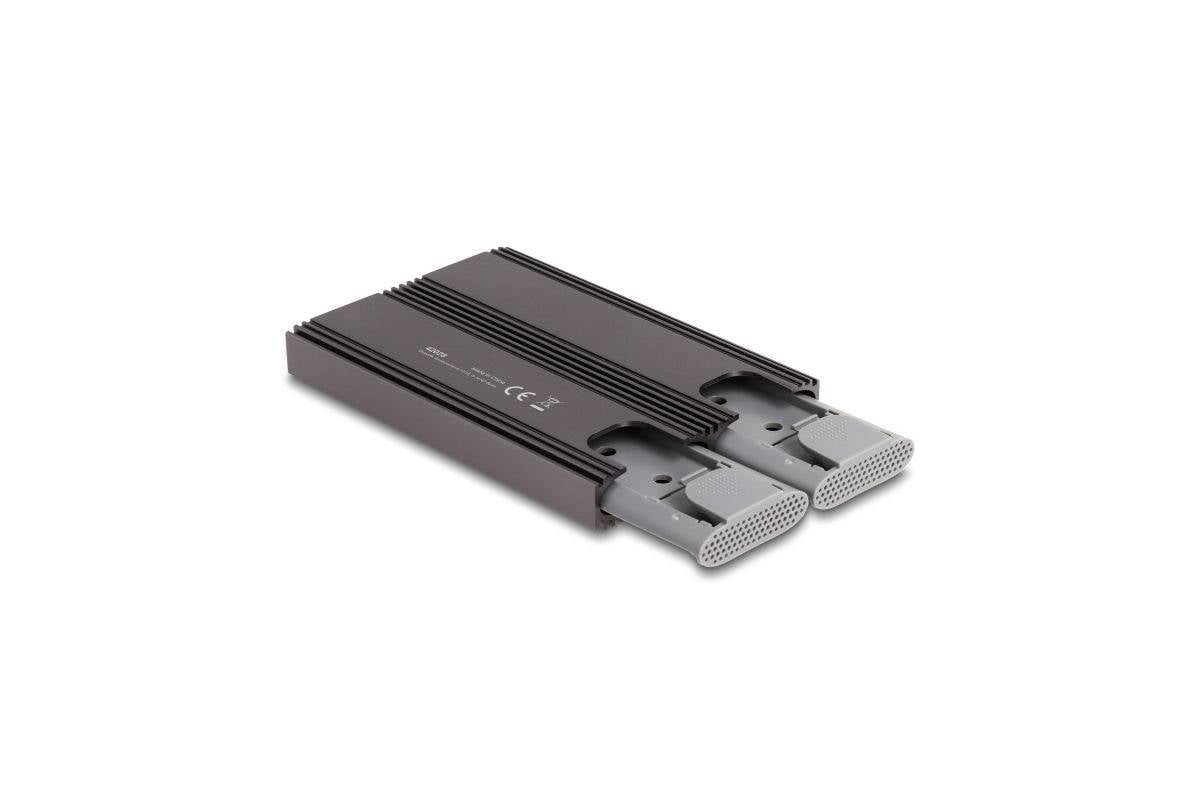

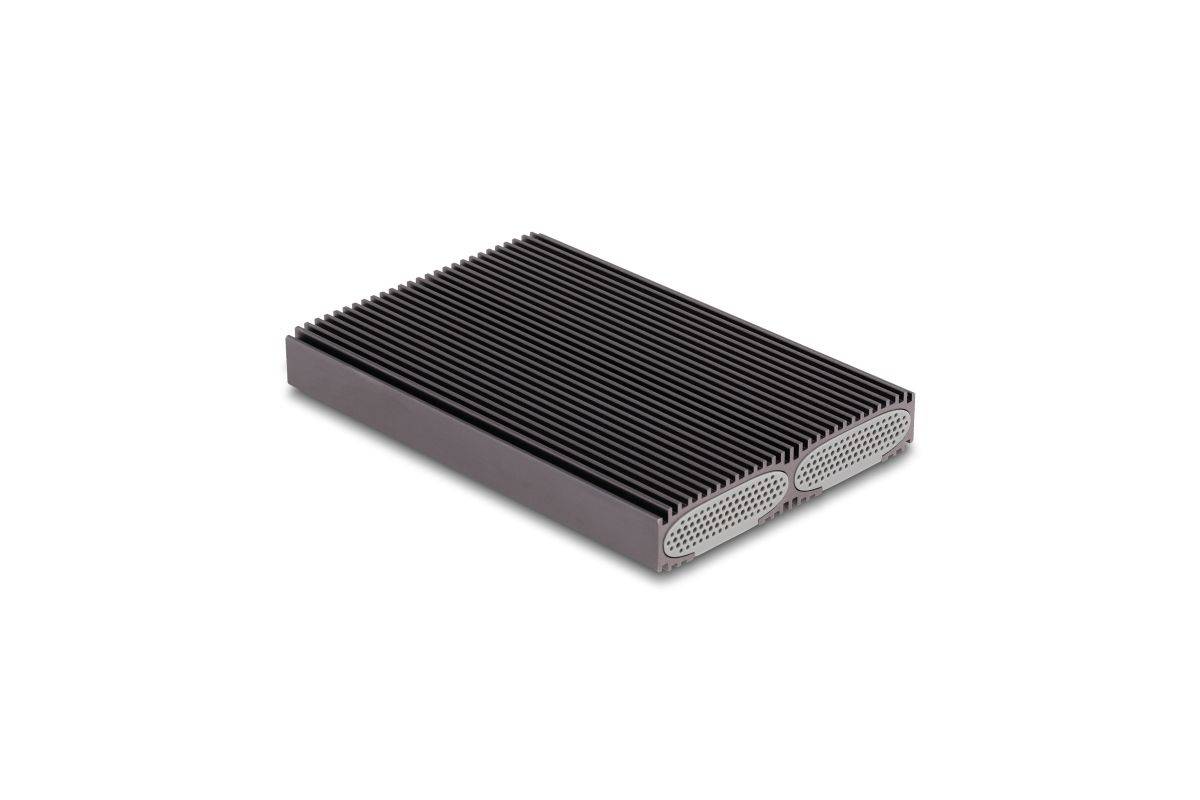

Description This enclosure by Delock enables the installation of two M.2 SSDs. Either M.2 PCIe NVMe SSDs or M.2 SATA SSDs in 2280, 2260, 2242 and 2230 format can be used and operated. The robust metal housing with cooling fins ensures an optimum temperature of the memory.
Combo enclosure
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.

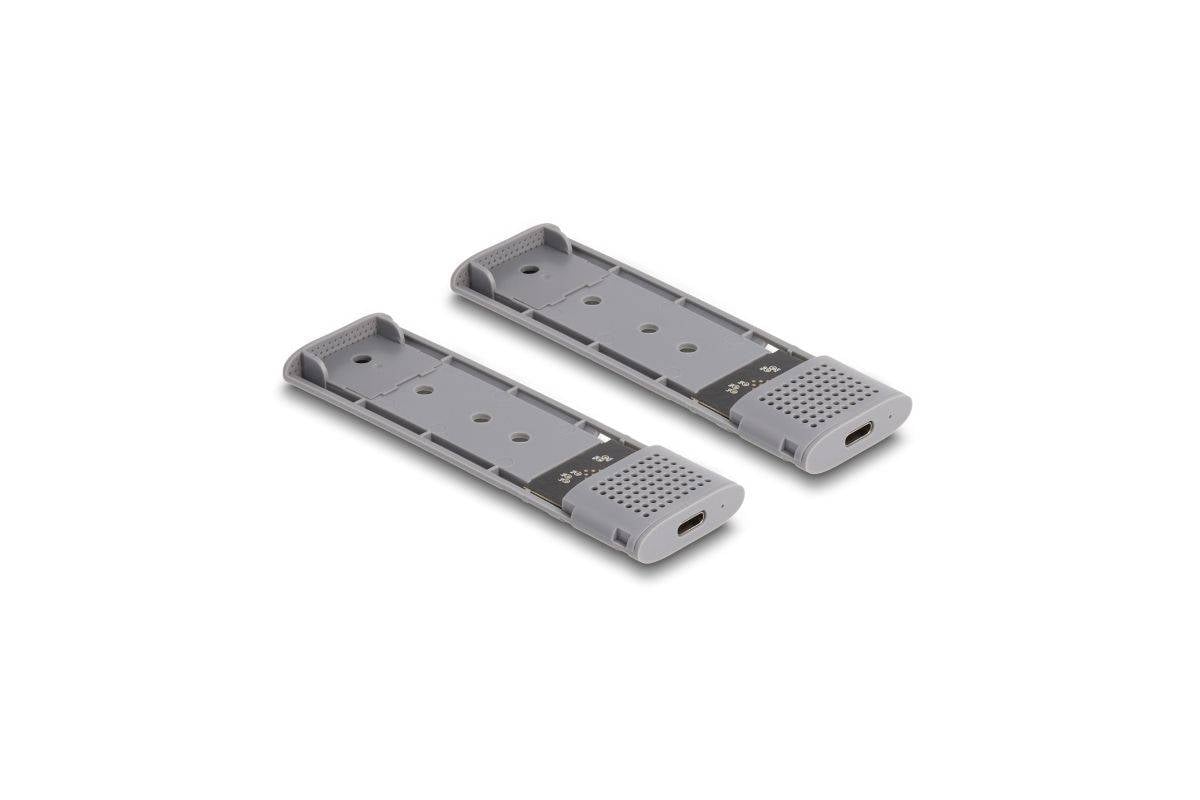

The special feature of this enclosure is that no tools are required to install the M.2 SSD. The inner part can be pulled out by pushing the button, the SSD is inserted into the slot and attached to the board with a rubber nipple. Specification • Connectors:
external: 2 x USB 10 Gbps USB Type-C™ female
internal: 2 x M.2 key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 10 Gbps
• 2 x LED indicator for power and access
• Metal housing
• Dimensions (LxWxH): ca. 110 x 74 x 13 mm
• Hot Plug, Plug & Play System requirements • Android 10.0 or above
• Chrome OS
• Linux Kernel 5.11 or above
• Mac OS 11.2.3 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port or
• A free USB Type-A port Package content • External enclosure M.2
• 2 x Cable USB-C™ male to USB-C™ male (with adapter to USB Type-A male), length ca. 45 cm
• 2 x thermal conductive pad
• 2 x thermal conductive plate
• 4 x rubber nipple
• User manual
