Delock External USB Type-C™ 20 Gbps Combo Enclosure for M.2 NVMe PCIe or SATA SSD - tool free
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
45 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 81,40
excl. btw
& Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Delock External USB Type-C™ 20 Gbps Combo Enclosure for M.2 NVMe PCIe or SATA SSD - tool free
Technische specificaties
- Kleur (specifiek)
Meerdere kleuren
- Gewicht
0
- Model
Rond
- Kabellengte
0 m
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting B
M.2
- Aantal aansluitingen A
1 x
- Aantal aansluitingen B
1 x
- Kabeltoepassing
Apparaat (koud)
- Aansluitingen
RJ45
- Draadloos oplaadbaar
Nee
- Aansluittype
USB 2.0
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 927501546 Delock External USB Type-C™ 20 Gbps Combo Enclosure for M.2 NVMe PCIe or SATA SSD - tool free
Omschrijving

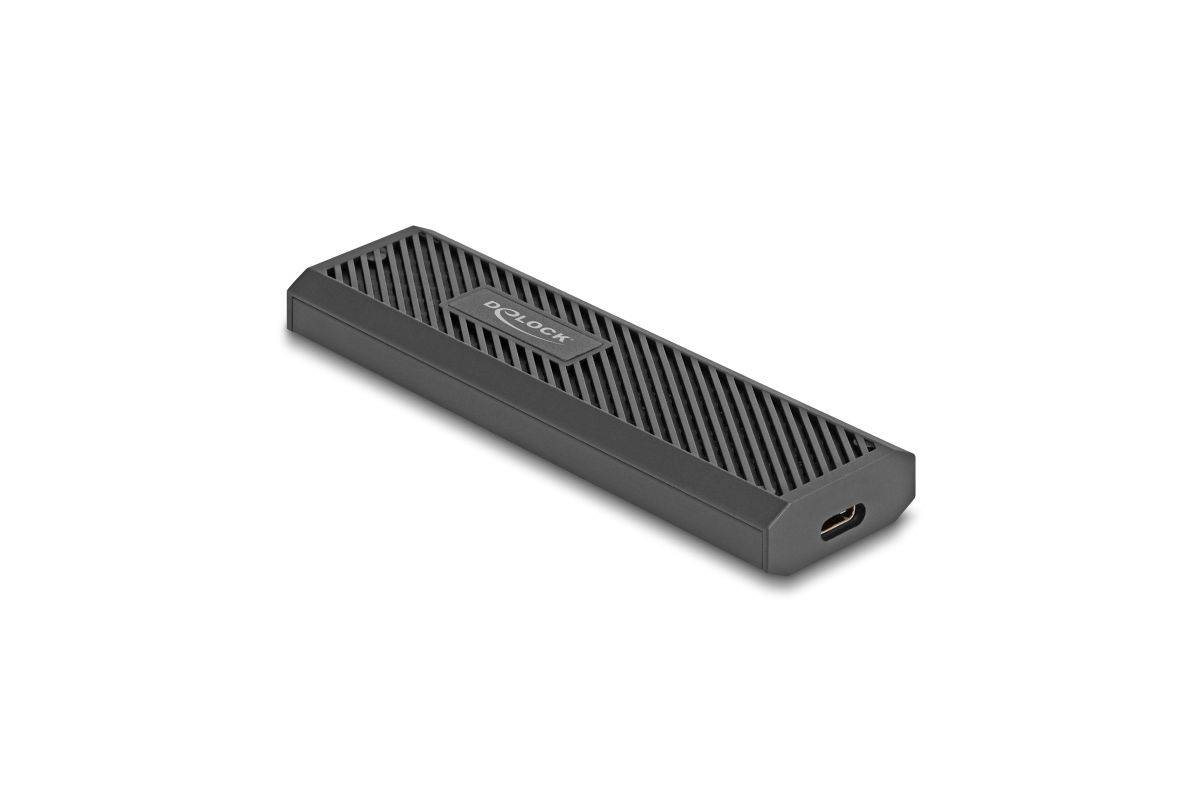

Description This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD or SATA M.2 SSD in 2280, 2260, 2242 and 2230 format. It can be connected via USB to the PC or laptop.
Combo enclosure
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.
The special feature of this enclosure is that no tools are required to install the M.2 SSD. The SSD is inserted into the slot and attached to the board with a rubber nipple. Specification • Connectors:
external:
1 x USB 20 Gbps USB Type-C™ female
internal:
1 x M.2 key M slot
• Chipset: Realtek RTL9220
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 20 Gbps
• LED indicator for power and access
• Housing material: aluminium / plastic
• Dimensions (LxWxH): ca. 115 x 32 x 13 mm
• Hot Plug, Plug & Play System requirements • Android 13.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port Package content • External enclosure M.2

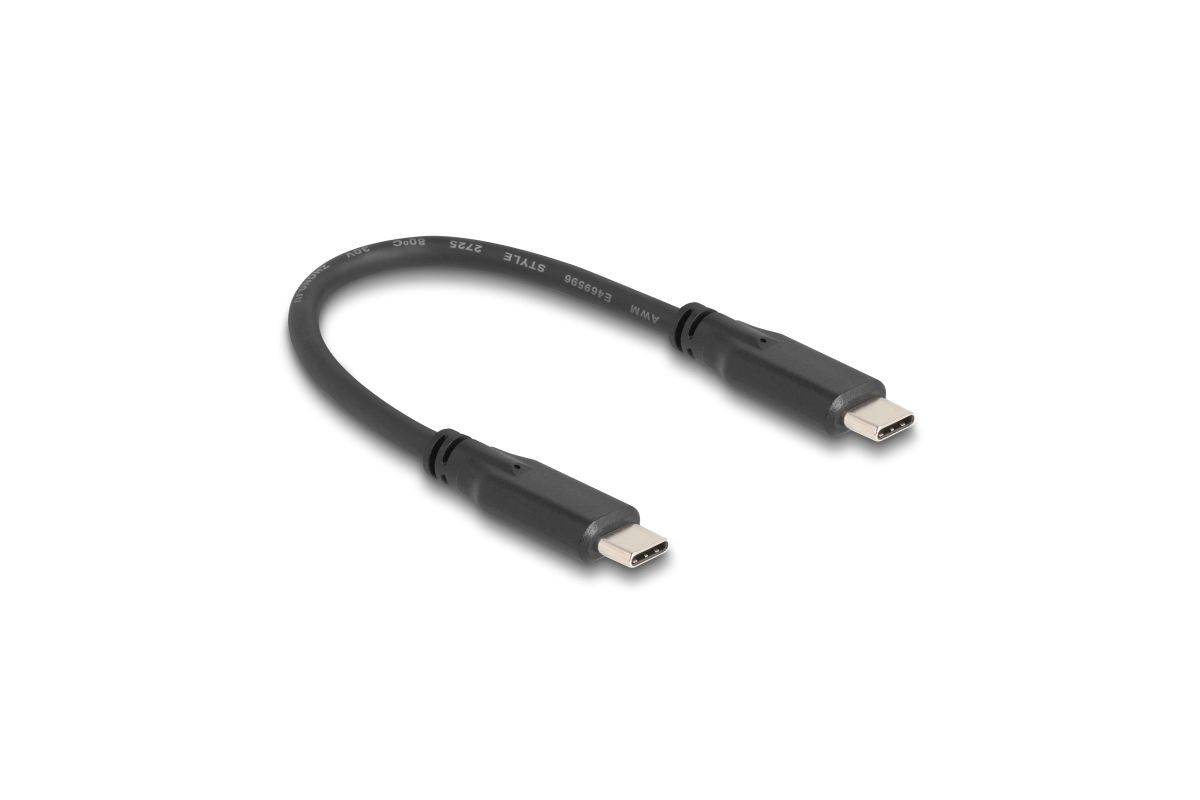

• Cable USB-C™ male to USB-C™ male, length ca. 20 cm
• User manual
Combo enclosure
The big advantage of this Delock M.2 enclosure is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the enclosure. The memory is automatically recognized by the chipset and can then be used.
The special feature of this enclosure is that no tools are required to install the M.2 SSD. The SSD is inserted into the slot and attached to the board with a rubber nipple. Specification • Connectors:
external:
1 x USB 20 Gbps USB Type-C™ female
internal:
1 x M.2 key M slot
• Chipset: Realtek RTL9220
• Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M or key B+M based on SATA or PCIe (NVMe)
• Maximum height of the components on the module: 1.5 mm, application of double-sided assembled modules supported
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate up to 20 Gbps
• LED indicator for power and access
• Housing material: aluminium / plastic
• Dimensions (LxWxH): ca. 115 x 32 x 13 mm
• Hot Plug, Plug & Play System requirements • Android 13.0 or above
• Chrome OS
• Linux Kernel 6.2 or above
• Mac OS 12.4 or above
• Windows 10/10-64/11
• iPad Air (4th Generation) or above
• iPad Pro (3rd Generation) or above
• Surface Pro 7
• Device with a free USB Type-C™ port or with a free Thunderbolt™ 3 or Thunderbolt™ 4 port Package content • External enclosure M.2
• Cable USB-C™ male to USB-C™ male, length ca. 20 cm
• User manual
