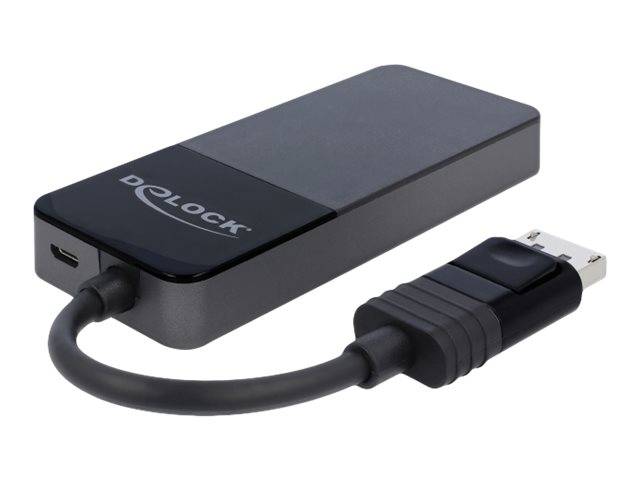

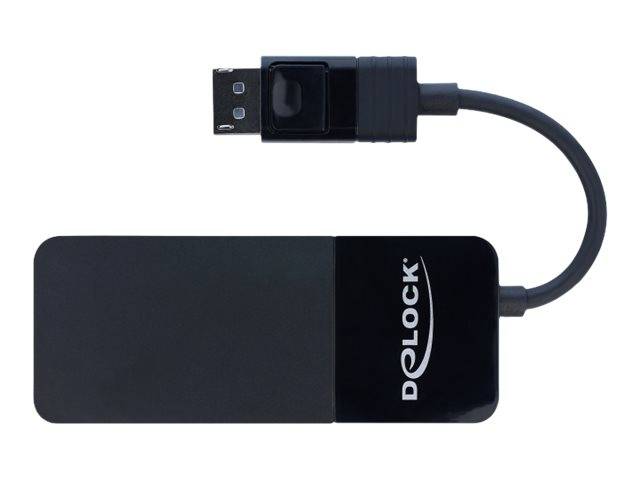

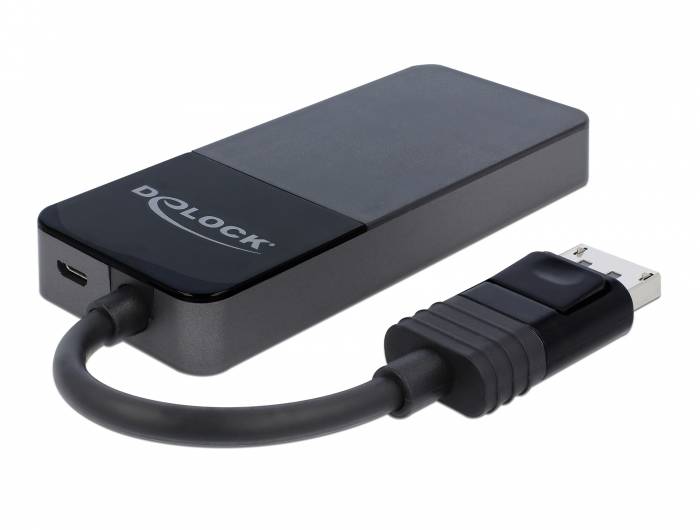

Delock DisplayPort 1.4 Splitter 1 x DisplayPort to 3 x HDMI MST
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
1 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 100,48
excl. btw
& Gratis verzending*
Slechts 1 Stuk(s) beschikbaar
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Poorten & interfacesHoeveelheid Video ports3Aansluiting videoDisplayPortVideo uit3x HDMISnoerlengte0,125 mKenmerkenMateriaal behuizingKunststofOndersteunt WindowsWindows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64Maximum resolutie3840 x 2160 PixelsHDCPJaKleur van het productZwartSnoerlengte0,125 mHDCP versie1.4/2.2EnergieStroomvoorziening via USBJaAC-ingangsspanning5 VGewicht en omvangBreedte105 mmDiepte43 mmHoogte14 mmVideoMaximum resolutie3840 x 2160 PixelsHDCPJaKleurKleur van het productZwartTechnische detailsMateriaal behuizingKunststofVideo uit3x HDMIMinimale systeemeisenOndersteunt WindowsWindows 10, Windows 10 x64, Windows 8.1, Windows 8.1 x64
- Soortnaam
Apparaat (koud) Aansluitkabel
- Aansluittype
HDMI
- Aantal aansluitingen A
1 x
- Aansluiting A
HDMI-stekker
- Aantal aansluitingen B
3 x
- Aansluiting B
HDMI-stekker
- Resolutie video
3840 x 2160 Pixel
- Kabellengte
0 m
- Kleur (specifiek)
Meerdere kleuren
- Bijzonderheden
4K UHD
- Uitvoering (kabel)
Aansluitkabel
- Kabeltoepassing
Apparaat (koud)
- Signaalstroomrichting
Unidirectioneel (uni)
- Gewicht
0.12
4.3 cm
- Breedte
10.5 cm
- Hoogte
1.4 cm
- Afm.
(l x b x h) 4.3 x 10.5 x 1.4 cm
- Toepassingsbereik
Monitor-/TV-adapters
- Model
Rond
- Aansluitingen
USB-C stekker
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 812521118 Delock DisplayPort 1.4 Splitter 1 x DisplayPort to 3 x HDMI MST
Omschrijving
Description
This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to three connected displays. Thereby one DisplayPort connection can be used to operate three HDMI monitors.
Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display.
High resolution
Due to the higher bandwidth of DisplayPort 1.4, a total of three monitors with 4K resolution (3840 x 2160) are supported.
Specification
• Connectors:
Input:
1 x DisplayPort male
1 x USB Type Micro-B female (5 V power supply)
Output:
3 x HDMI-A female
• Chipset: VMM5300
• DisplayPort 1.4 specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.4 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 60 Hz
3 displays: up to 3840 x 2160 @ 30 Hz + 1 x up to 3840 x 2160 @ 60 Hz
DisplayPort 1.4 Multi-Stream Transport (MST) + DSC:
3 displays: up to 3840 x 2160 @ 60 Hz
• Transmission of audio and video signals
• Colour: black
• Cable length without connectors: ca. 12.5 cm
• Dimensions without cable (LxWxH): ca. 105 x 43 x 14 mm
System requirements
• Windows 8.1/8.1-64/10/10-64
• A free DisplayPort female
• Charger 1 x USB Type-A 5 V / 2 A
Package content
• DisplayPort Splitter

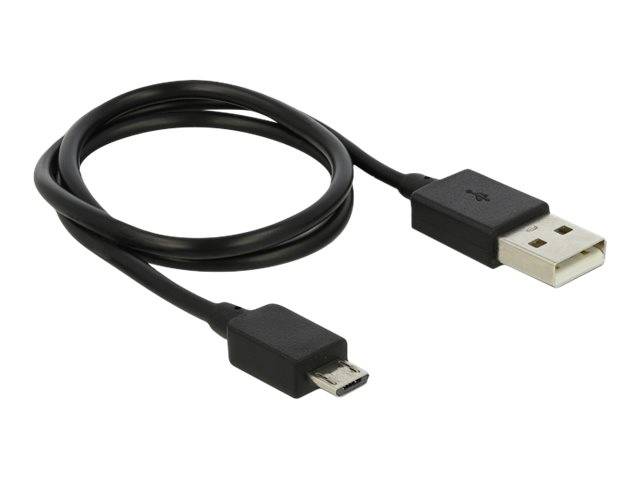

• USB power cable, length: ca. 0.5 m
• User manual
