Delock DisplayPort 1.2 Splitter 1 x DisplayPort in > 2 x DisplayPort out 4K
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
1 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 76,77
excl. btw
& Slechts 1 Stuk(s) beschikbaar
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Delock DisplayPort 1.2 Splitter 1 x DisplayPort in > 2 x DisplayPort out 4K
Highlights & Details
- Actieve converter, Single / Multi Stream Transport hub (SST / MST)
- DisplayPort 1.2a-specificatie
- DisplayPort uitgang ondersteunt dual mode DP++
- Ondersteunt audio- en videosignalen
- Ondersteunt Eyefinity / Single Large Surface (SLS)
- Audio-ingang formaten: 7.1-kanaals met een sampling rate tot 192 kHz
- Metalen behuizing
Technische specificaties
- Soortnaam
DisplayPort-splitter
- Ondersteunende monitors
2
- Aantal ingangen
1 x
- Aansluitingen (ingang)
DisplayPort
- Aantal uitgangen
2 x
- Aansluitingen (uitgang)
DisplayPort
- Resolutie (max.)
2560 x 1440 Pixel
- Stroomvoorziening
werkt op stekkernetvoeding
- Kleur (specifiek)
Meerdere kleuren
- Gewicht
0.287
- Breedte
71 mm
- Hoogte
21 mm
- Diepte
61 mm
- Afm.
(b x h x d) 71 x 21 x 61 mm
- Aantal poorten
2 poorten
- Model
Rond
- Uitvoering (kabel)
Kabel
- Kabeltoepassing
Computer
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 1881023 Delock DisplayPort 1.2 Splitter 1 x DisplayPort in > 2 x DisplayPort out 4K
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 1881023 Delock DisplayPort 1.2 Splitter 1 x DisplayPort in > 2 x DisplayPort out 4K
Omschrijving

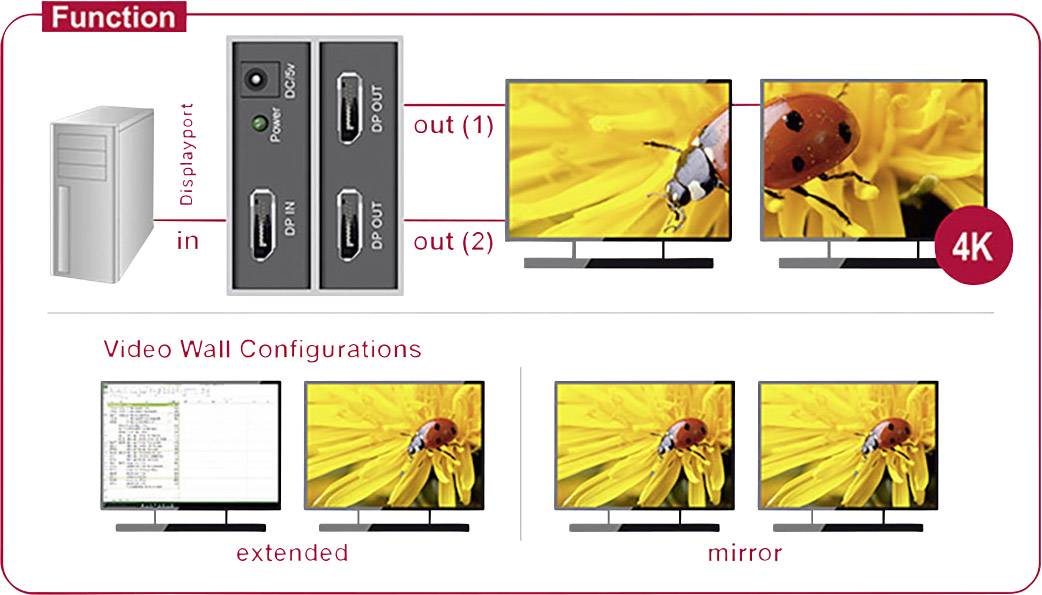

Description This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to two connected displays. Thereby one DisplayPort connection can be used to operate two DisplayPort monitors. Both outputs are dual-mode capable (DP++), so that HDMI or DVI monitors can be connected with suitable adapters.
Note
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort 1.2. When Mac OS is used, the same image is displayed on both ports (mirrored), it is not possible to use both ports independently of each other. Specification • Connectors:

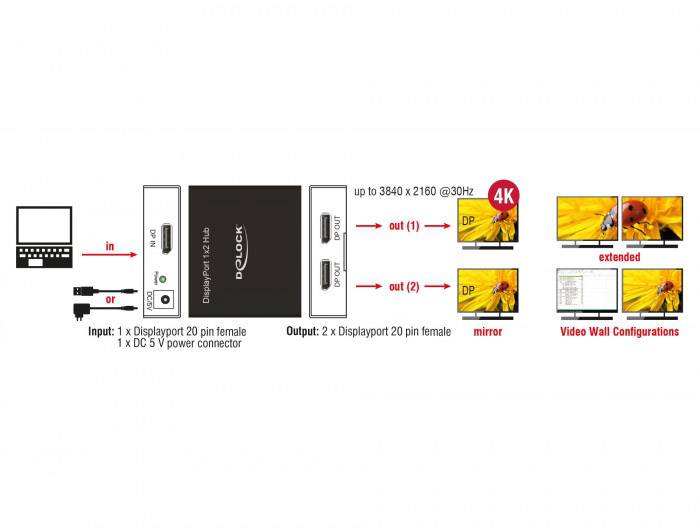

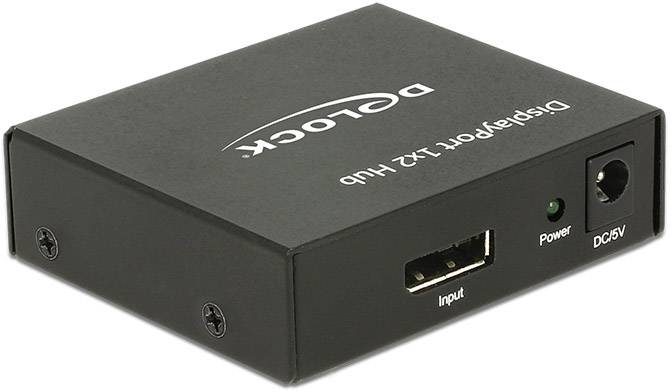

Input:
1 x DisplayPort 20 pin female
1 x DC 5 V power connector
Output:

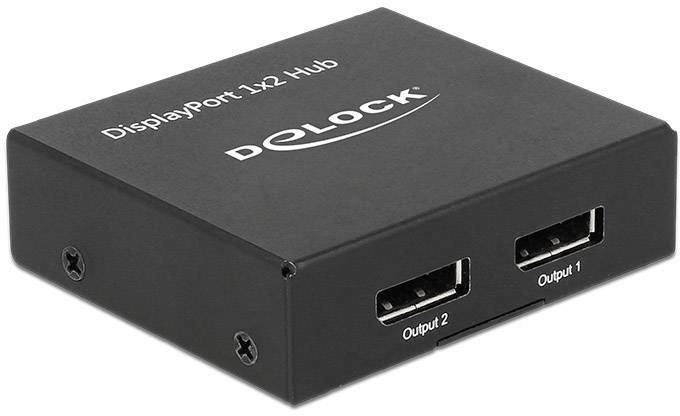

2 x DisplayPort 20 pin female
• Chipset: STDP4320
• DisplayPort 1.2a specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.1 or 1.2 Single Stream Transport (SST):
up to 1920 x 1080 @ 60 Hz (mirror)
DisplayPort 1.2 Multi-Stream Transport (MST):
up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirror or extended)
• DisplayPort output supports Dual Mode DP++
• Supports audio and video signals
• Supports Eyefinity / Single Large Surface (SLS)
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 71 x 61 x 21 mm
• Length: power cable USB Type-A > DC ca. 50 cm

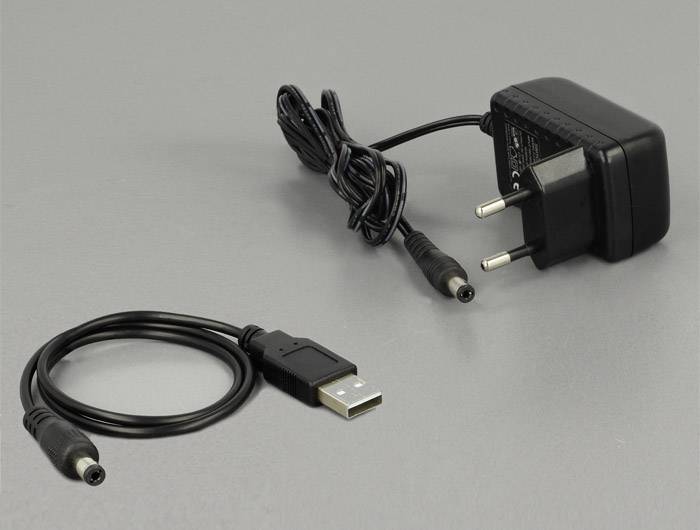

Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm System requirements • A free DisplayPort female
• DisplayPort cable Package content • DisplayPort Splitter
• USB power cable
• External power supply
• User manual
Note
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort 1.2. When Mac OS is used, the same image is displayed on both ports (mirrored), it is not possible to use both ports independently of each other. Specification • Connectors:
Input:
1 x DisplayPort 20 pin female
1 x DC 5 V power connector
Output:
2 x DisplayPort 20 pin female
• Chipset: STDP4320
• DisplayPort 1.2a specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.1 or 1.2 Single Stream Transport (SST):
up to 1920 x 1080 @ 60 Hz (mirror)
DisplayPort 1.2 Multi-Stream Transport (MST):
up to 2560 x 1440 @ 60 Hz or 3840 x 2160 @ 30 Hz (mirror or extended)
• DisplayPort output supports Dual Mode DP++
• Supports audio and video signals
• Supports Eyefinity / Single Large Surface (SLS)
• Audio input formats: 7.1 channel up to 192 kHz sample rate
• Metal housing
• Colour: black
• Dimensions (LxWxH): ca. 71 x 61 x 21 mm
• Length: power cable USB Type-A > DC ca. 50 cm
Power supply specification
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.3 A
• Output: 5 V / 1 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9 mm System requirements • A free DisplayPort female
• DisplayPort cable Package content • DisplayPort Splitter
• USB power cable
• External power supply
• User manual
Uitvoering
- Maximale resolutie DisplayPort 1.1 of 1.2 Single-Stream Transport (SST): tot 1920 x 1080 bij 60 Hz (spiegelen)
- Maximale resolutie DisplayPort 1.2 Multi Stream Transport (MST): tot 2560 x 1440 @ 60 Hz of 3840 x 2160 bij 30 Hz (spiegels of uitbreiden)
Omvang van de levering
- DisplayPort-verdeler (splitter)
- USB-stroomkabel (50 cm)
- Externe netvoeding 5V / 1A
- Gebruiksaanwijzing.
