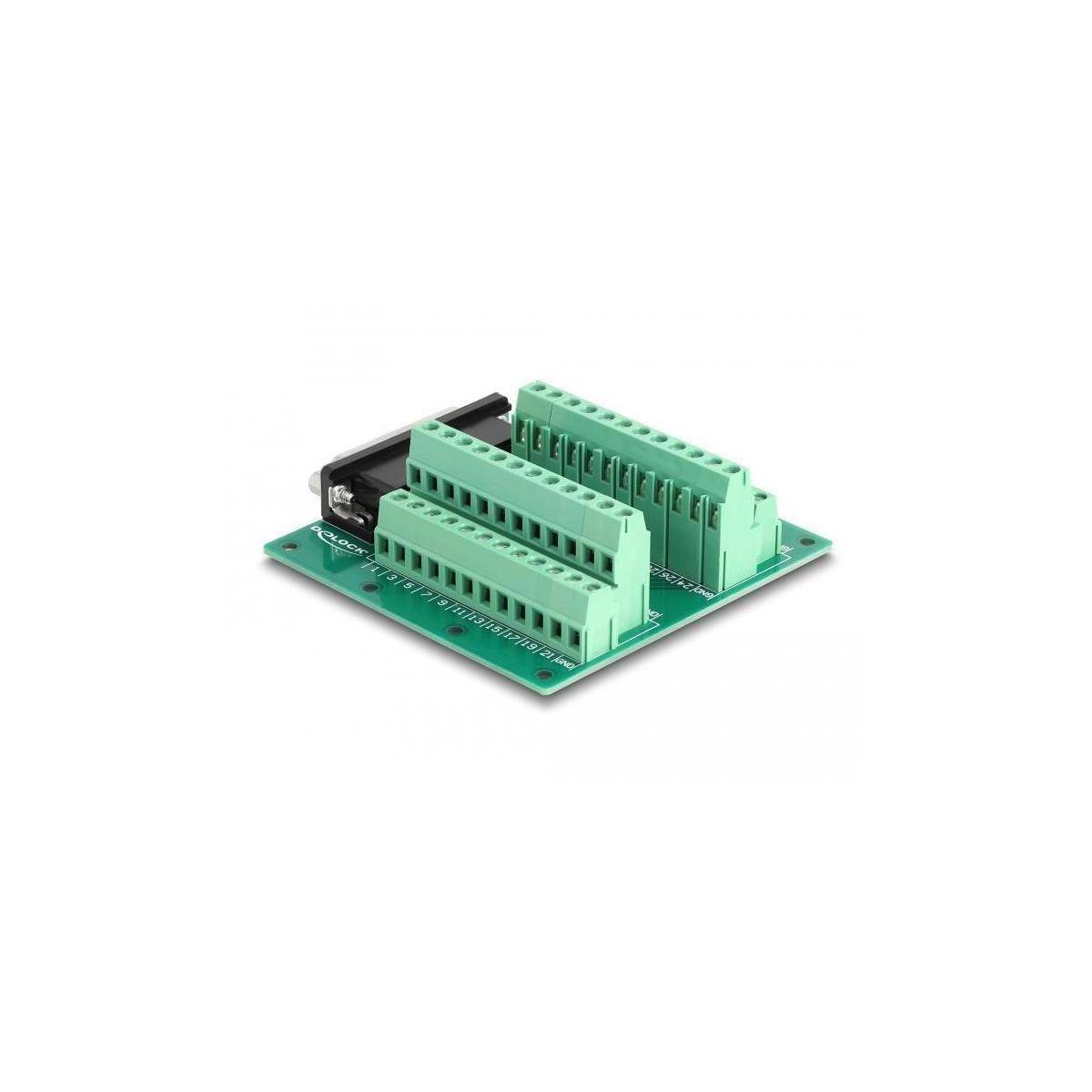

Delock D-Sub HD 44 pin female to Terminal Block for DIN rail
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
27 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 38,91
excl. btw
& € 5,95
Incl. 14 dagen retourrecht
Technische specificaties
- Soortnaam
Apparaat (koud) Aansluitkabel
- Aansluittype
VGA
- Aantal aansluitingen A
1 x
- Aantal aansluitingen B
1 x
- Kleur (specifiek)
Meerdere kleuren
- Kabeltoepassing
Apparaat (koud)
- Uitvoering (kabel)
Aansluitkabel
- Toepassingsbereik
Seriële/parallelle adapters
- Model
Rond
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 838151334 Delock D-Sub HD 44 pin female to Terminal Block for DIN rail
Omschrijving
Description This terminal block adapter by Delock can be used to connect wires with stripped ends.
DIN rail mounting

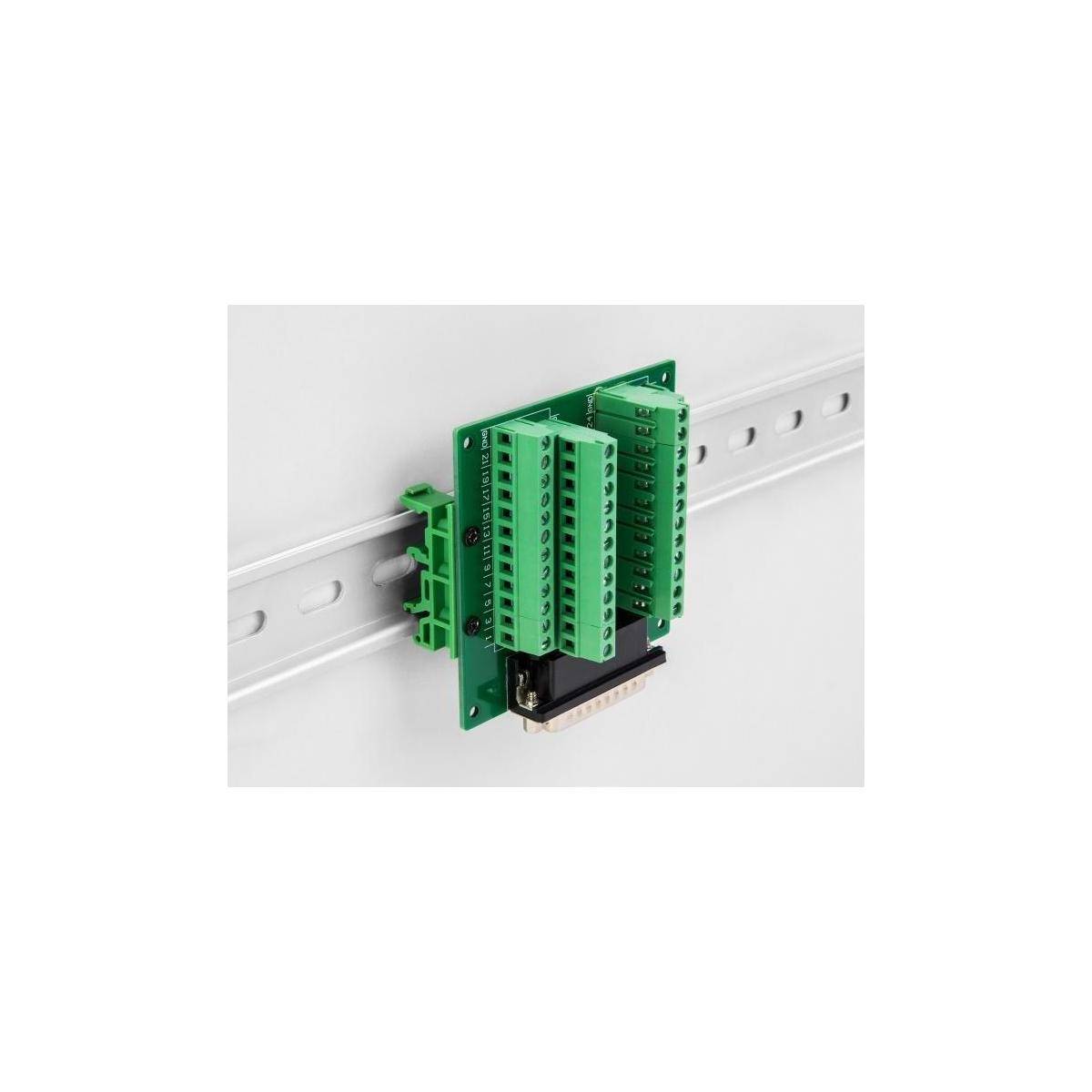

With the clips included in the delivery content, the adapter can be attached to a 15 mm or 35 mm wide DIN rail. Specification • Connectors:

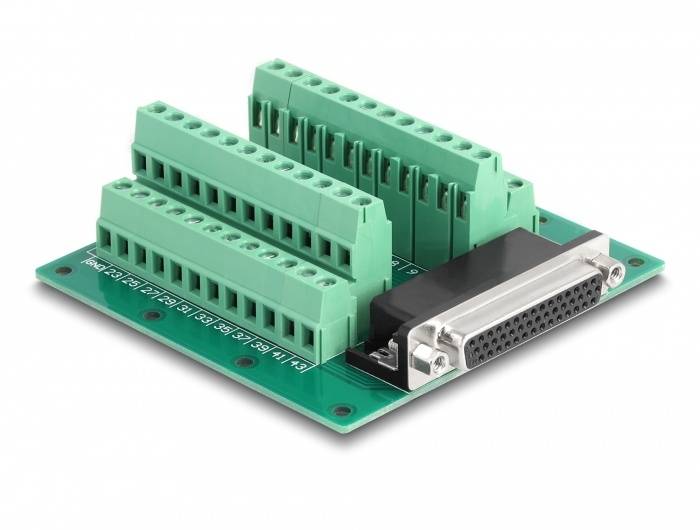

1 x D-Sub HD 44 pin female
1 x 45 pin terminal block
• Pin assignment: 1:1
• Pitch: 5.00 mm
• Useable for a cable gauge from 24 to 12 AWG
• DIN rail mounting: 15 mm and 35 mm
• Operating temperature: -40 °C ~ 100 °C
• Dimensions (LxWxH): ca. 86 x 84 x 30 mm System requirements • A free D-Sub 44 pin male
• 15 mm or 35 mm DIN rail Package content • Adapter

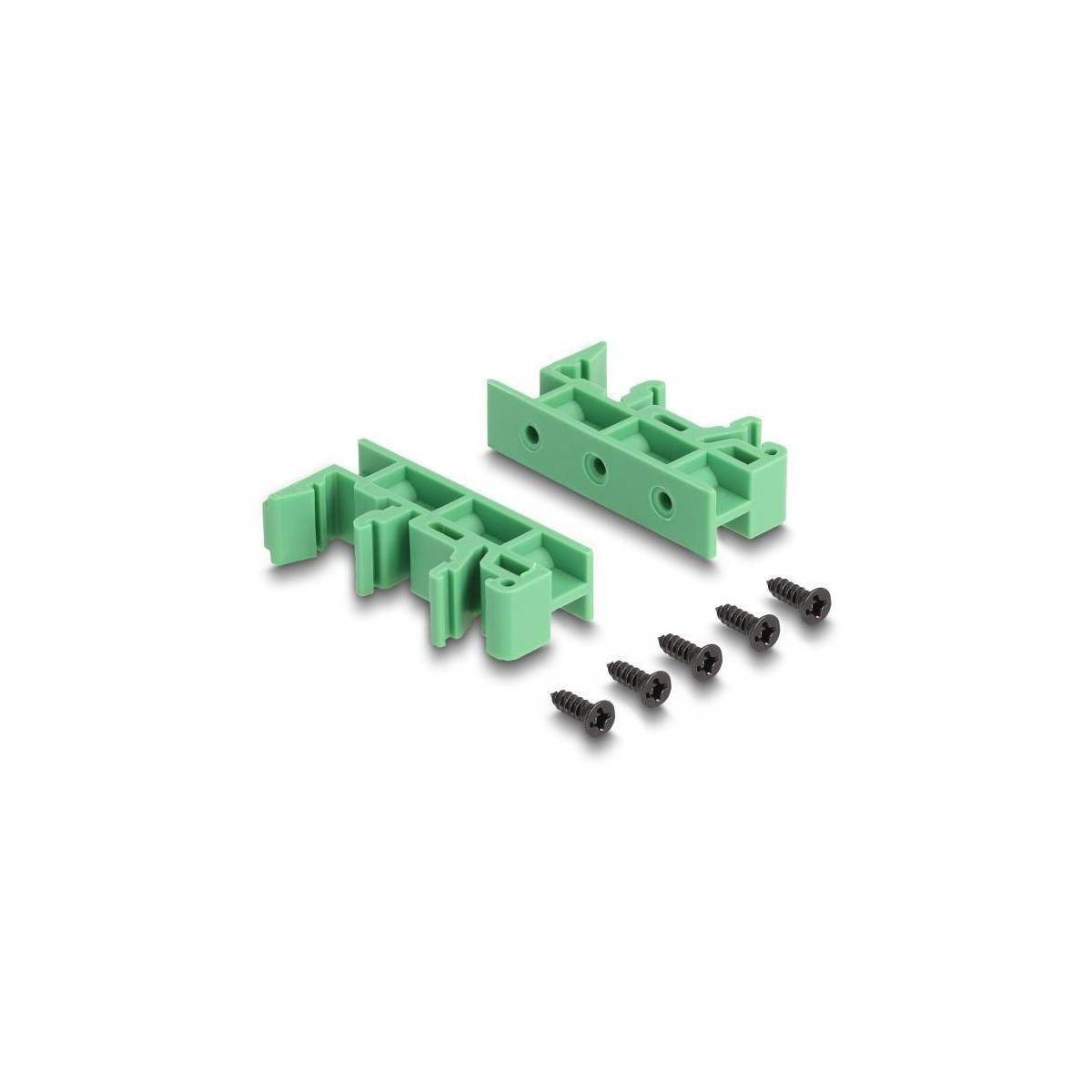

• 2 x DIN rail clip
• 5 x screws
