Delock Card Reader IDE 40 pin to Compact Flash
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
20 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 13,61
excl. btw
& Inclusief 14 dagen retourrecht

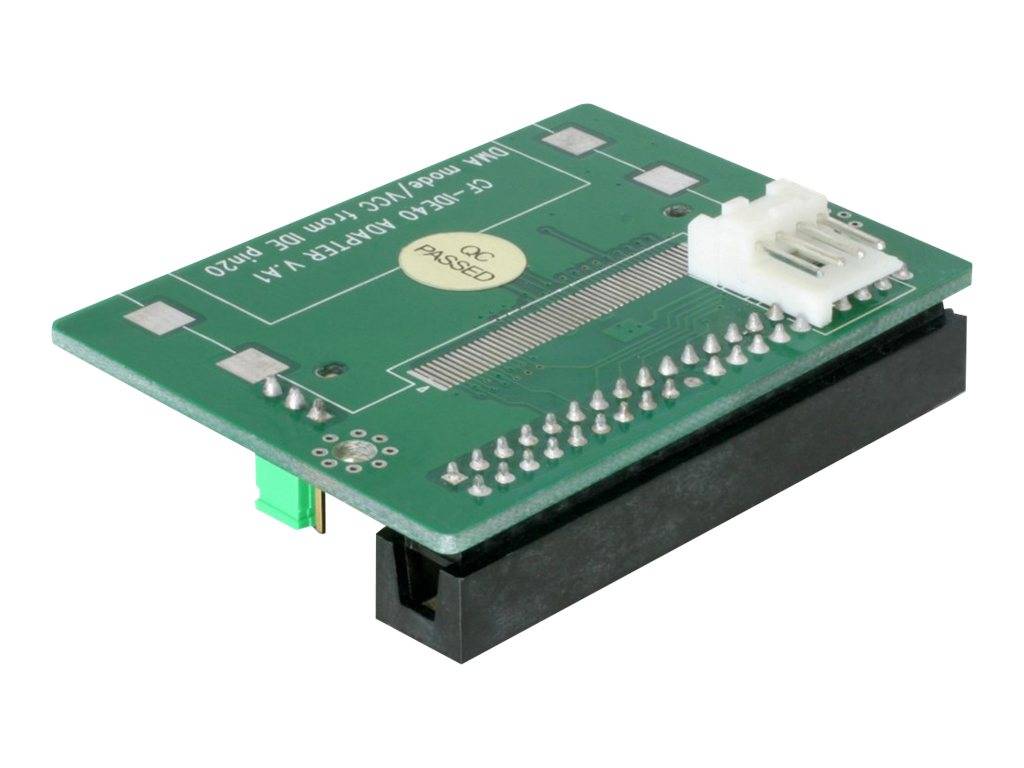

Delock Card Reader IDE 40 pin to Compact Flash
Technische specificaties
- OpslagmediaSIM card supportNeePrestatieCompatibele besturingssystemenDOS, Windows 3.1/NT4/98SE/ME/2000/XP/Vista, Unix, LinuxPoorten & interfacesSIM card supportNeeOverige specificatiesCompatibele besturingssystemenDOS, Windows 3.1/NT4/98SE/ME/2000/XP/Vista, Unix, Linux
- Interfaces
IDE
- Ondersteunde geheugenkaarten
CompactFlash Typ I/II
- Bijzonderheden
CF-cardreader
- Kleur (specifiek)
Meerdere kleuren
- Gewicht
0.019
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Kabeltoepassing
Apparaat (koud)
- Aansluittype
IDE
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 810059496 Delock Card Reader IDE 40 pin to Compact Flash
Omschrijving
Description This Card Reader by Delock enables the application of a Compact Flash card via 40 pin IDE interface. Since this Card Reader is bootable you can also use it as HDD and install a operating system. For connecting the Card Reader you need a 3.5″ IDE connecting cable. Specification • IDE 40 pin to CF Card
• 40 pin 2.54 mm standard IDE connector
• For Compact Flash type I, type II and Micro-drive
• Master or slave mode selection
• 2 x mounting holes
• +5 V floppy disk drive power connector
• Supports DMA and Ultra DMA modes. A compatible
flash media card will be required to use these modes.
• Dimension: 60 mm x 43 mm System requirements • A free IDE 40 pin port
• Windows 2000/XP/Vista, Linux 2.6 Package content • Card Reader IDE to CF card
• 40 pin 2.54 mm standard IDE connector
• For Compact Flash type I, type II and Micro-drive
• Master or slave mode selection
• 2 x mounting holes
• +5 V floppy disk drive power connector
• Supports DMA and Ultra DMA modes. A compatible
flash media card will be required to use these modes.
• Dimension: 60 mm x 43 mm System requirements • A free IDE 40 pin port
• Windows 2000/XP/Vista, Linux 2.6 Package content • Card Reader IDE to CF card
