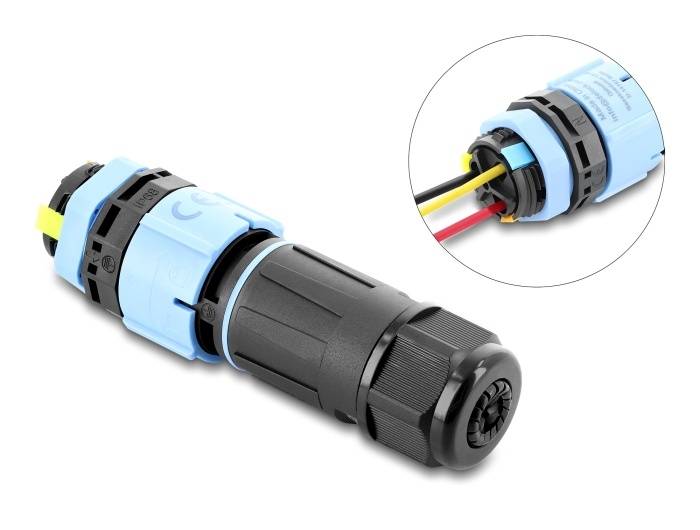

Delock Cable Connector with bayonet lock 3 pin male to female with housing for built-in, IP68 waterproof, cable

Description This cable connector by Delock is ideal for connecting cables with a diameter of 5 - 9 mm and ensures a waterproof connection in outdoor areas. The package also includes a seal for cable diameters of 9 - 12 mm, allowing the connector to be flexibly adapted to different cable sizes.

With bayonet lock

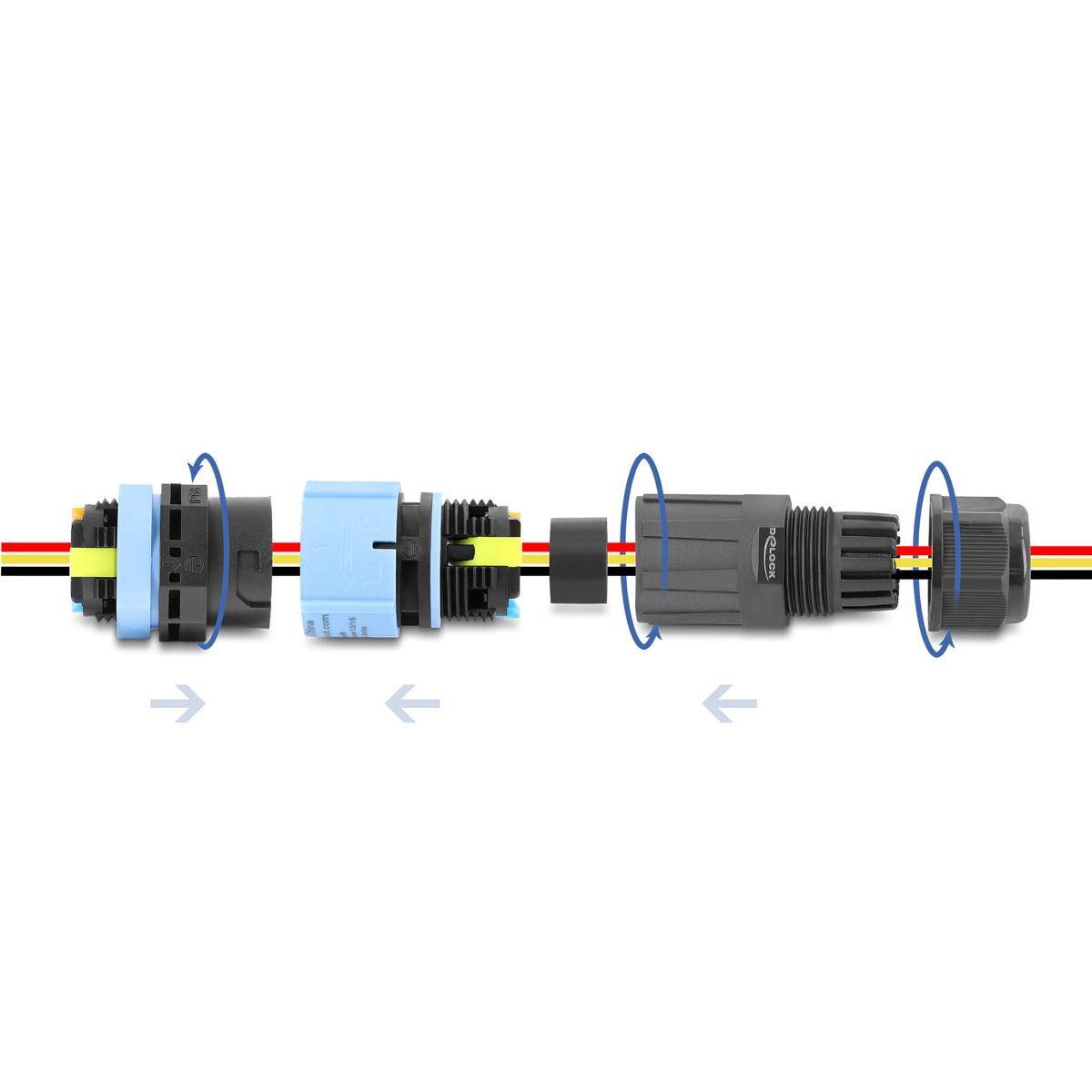

The bayonet lock ensures a firm and secure connection. The simple locking mechanism with a twist mechanism enables quick, tool-free installation, which also provides reliable protection against vibrations, moisture and dirt.

IP68 dust and waterproof
The cable connector offers increased protection against dirt and moisture for the connection of power cables in outdoor areas. Specification • Connectors:
1 x 3 pin male
1 x 3 pin female
• Built-in hole Ø: 21.5 mm
• Rated voltage: 450 V
• Current: max. 24 A
• Protection class: IP68
• For cable diameter from 5 - 9 mm incl. seal for 9 -12 mm
• Suitable for cables with a cable gauge of ca. 0.5 - 2.5 mm²
• Silicone sealing ring black
• With bayonet lock
• Operating temperature: -40 °C ~ 105 °C
• Fire-resistance rating: UL94V-0
• Material: PA66
• Colour: black
• Dimensions (LxWxH): ca. 97 x 25 x 25 mm Package content • Cable connector
• 1 x seal 9 - 12 mm
