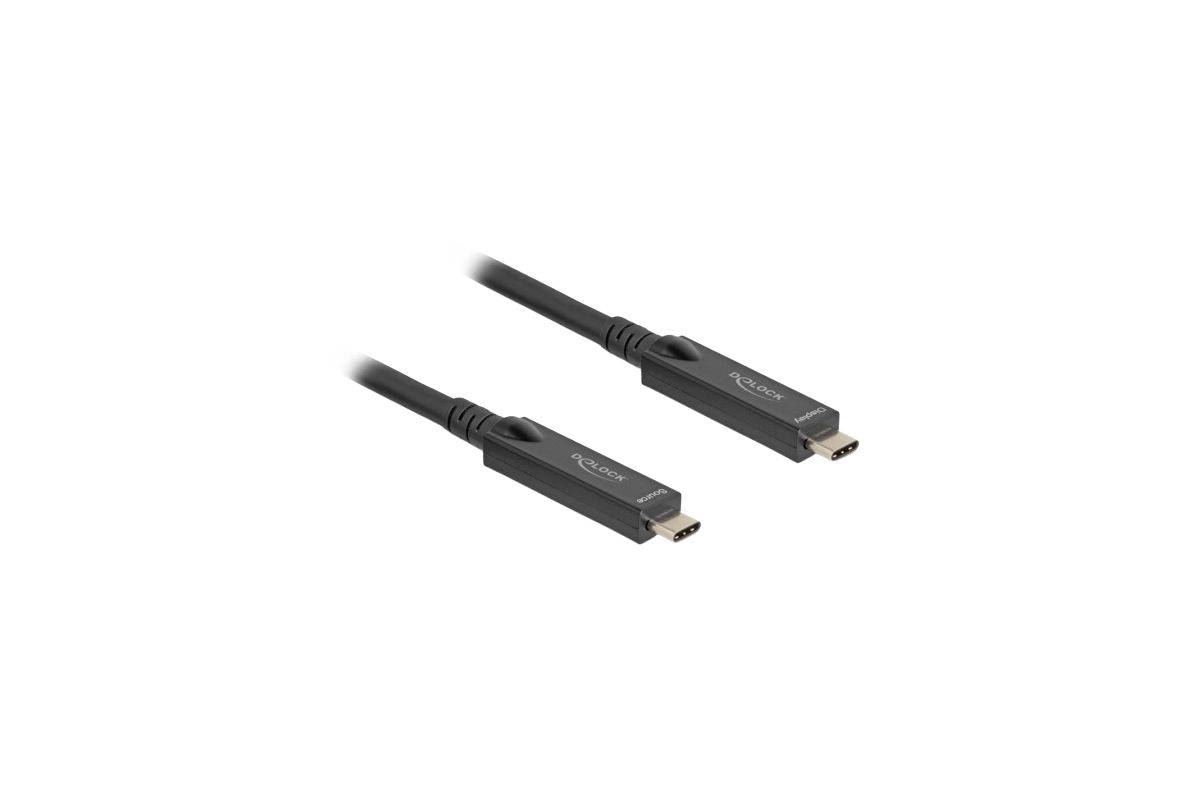

Delock Active Optical USB-C™ 8K Video + Data + PD Cable 10 m
EAN:
Fabrikantnummer:
Artikelnummer:
Soortnaam
USB-adapter
Kabelspecificatie
USB 3.2 Gen2
Uitvoering (kabel)
Aansluitkabel
Soort verbinding
USB-C naar USB-C
Aansluitingen
USB-C stekker
12 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal
€ 314,93
excl. btw
& Gratis verzending*
Inclusief 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Delock Active Optical USB-C™ 8K Video + Data + PD Cable 10 m
Technische specificaties
- Soortnaam
USB-adapter
- Kabelspecificatie
USB 3.2 Gen2
- Uitvoering (kabel)
Aansluitkabel
- Soort verbinding
USB-C naar USB-C
- Aansluitingen
USB-C stekker
- Kleur (specifiek)
Meerdere kleuren
- Kabellengte
10 m
- Bijzonderheden
Active Optical Cable (AOC)
- Model
Rond
- Overdrachtssnelheid (max.)
10 GBit/s
- Laadstroom (max.)
60 W @ 20 V / 3.0 A
- Aansluittype
USB 3.2 Gen 2 (USB 3.1)
- Kabelsoort
USB-kabel
- Kabeltoepassing
Apparaat (koud)
- UKCA
Ja
Omschrijving
Description This USB cable by Delock enables the connection between a device with a USB Type-C™ connector and a PC or a laptop equipped with a free USB Type-C™ port.
Active Optical Cable
This active optical cable uses optical fiber to transmit high-speed signals. Compared to traditional copper cable, it is softer, thinner, lighter, and can transmit signals over longer distances without loss.
DisplayPort 2.1 with 4 lanes
The cable is suitable for connecting a USB-C™ monitor with resolution up to 8K Ultra HD (7680 x 4320 @ 60 Hz) to a computer with USB-C™ interface and DisplayPort Alternate Mode support.
When connected to a docking station with simultaneous operation of DisplayPort and USB at 10 Gbps, a resolution of 3840 x 2160 @ 120 Hz is possible.
The active optical cable enables data transfer rates of up to 10 Gbps when connecting USB 10 Gbps compatible devices. Of course, USB 2.0 devices can also be connected.
USB Power Delivery support up to 60 watt
Supporting the USB Power Delivery standard, connected devices can be powered up to 60 W (20 V / 3 A).
Note
This cable is only compatible with DisplayPort (DP alt mode) devices and it will not work with Thunderbolt™ devices. Specification • Connectors:
2 x USB 10 Gbps USB Type-C™ male
• Active optical cable: fiber / copper hybrid cable
• Supports 2 / 4 lanes DisplayPort 1.4
• Supports Display Stream Compression 1.2 (DSC)
• Supports DP Alt Mode
• Transmission of audio and video signals
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 2.1 with DSC: up to 7680 x 4320 @ 60 Hz (4 Lanes)
DisplayPort 1.4 with DSC: up to 3840 x 2160 @ 120 Hz (2 Lanes)
• Supports HDR (High Dynamic Range)
• Supports HDCP 1.4 and 2.2
• Fixed signal direction for video (Source / Display)
• Non-directional for data
• Data transfer rate up to 10 Gbps
• Downwards compatible to USB 2.0
• Output current: up to 3 A
• Cable jacket material: TPE
• Cable diameter: ca. 6.5 mm
• Colour: black
• Length incl. connectors: ca. 10 m System requirements • PC or laptop with a free USB Type-C™ port and DisplayPort alternate mode
• Monitor with a free USB Type-C™ (DP Alt Mode) interface Package content • USB 10 Gbps cable
