Delock 95272 M.2-controller RJ45 Serieel
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
41 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Aantal
Totaal (€ 59,50 / Stuk)
€ 59,50
excl. btw
& Gratis verzending met
Incl. 14 dagen retourrecht (30 dagen met)
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Delock M.2 Key B+M 1 x RJ45 2.5 Gigabit LAN Network Card
Technische specificaties
- Soortnaam
M.2-controller
- Interface
Serieel
- 10/100 Mbit/s-poorten
1 x
- 10/100/1000 Mbit/s
1 x
- Chipset
Intel
- Aansluitingen (uitgang)
RJ45
- Model
Rond
- Uitvoering (kabel)
Aansluitkabel
- Aansluiting A
M.2
- Aansluiting B
RJ45-stekker 8p8c
- Display (inch)
24 inch
- Kabeltoepassing
Apparaat (koud)
- Aansluittype
RJ45
1 Gbit/s
- Toepassingsbereik
PC's
- UKCA
Ja
- Maximale overdrachtssnelheid van gegevens
2500 Mbit/s
- Ethernet LAN
Ja
- Jumbo frames
9000
- Intern
Ja
- Wake-on-LAN
Ja
- Jumbo Frames ondersteuning
Ja
- Gebruikershandleiding
Ja
- Full duplex
Ja
- Montagebeugels meegeleverd
Ja
Documenten en downloads
Datablad
Datablad 3379284 Delock 95272 M.2-controller RJ45 Serieel
Gebruiksaanwijzingen en veiligheidsinformatie
Gebruiksaanwijzingen en veiligheidsinformatie 3379284 Delock 95272 M.2-controller RJ45 Serieel
Omschrijving

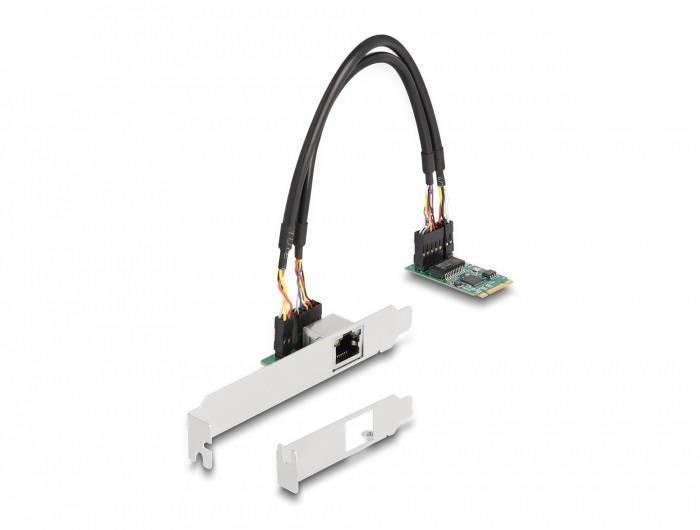

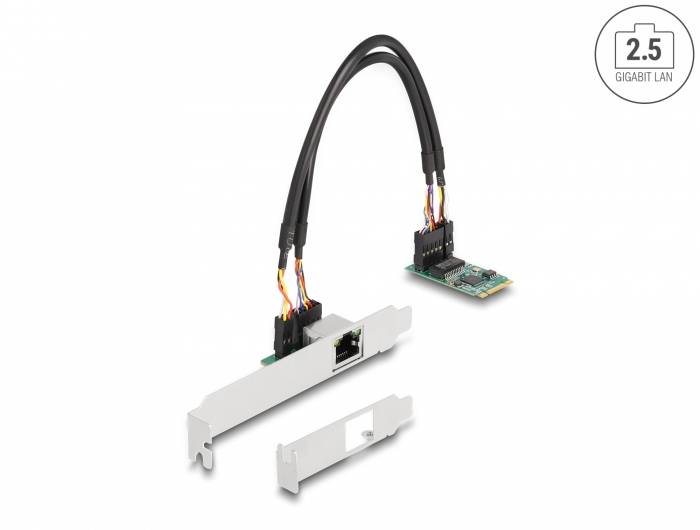

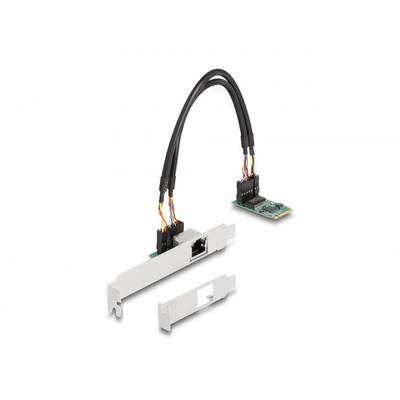

Description This M.2 PCIe module by Delock expands a system by one 2.5 Gigabit LAN interface, which can be lead out via the slot bracket.
NBASE-T for higher speed
Modern services and new technologies require higher bandwidths. NBASE-T technology enables speeds of 1 Gbps and 2.5 Gbps with conventional networking cables. The best possible transmission rate is set automatically. Specification • Connectors:

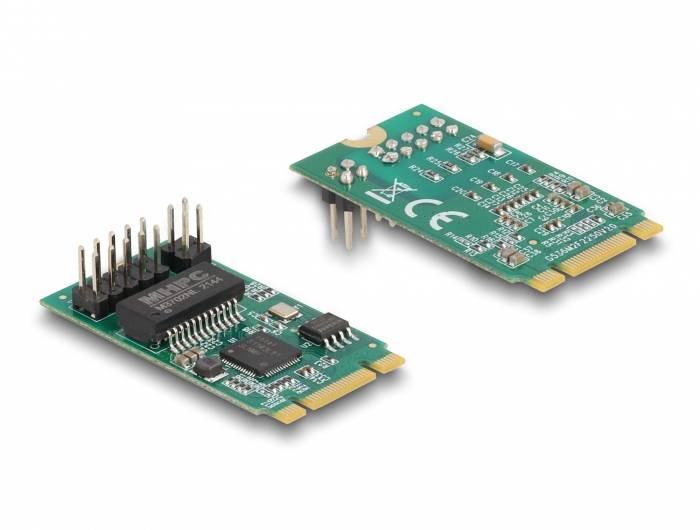

internal: 1 x 59 pin M.2 key B+M male
external: 1 x 2.5 Gigabit LAN RJ45 jack
• Chipset: Intel i225V
• Interface: PCIe 2.0
• Form factor: M.2 2242
• Suitable for M.2 slot with key M or B+M based on PCIe
• Data transfer rate:
Ethernet up to 10 Mbps (Half/Full Duplex)
Fast Ethernet up to 100 Mbps (Half/Full Duplex)
Gigabit Ethernet up to 1000 Mbps (Half/Full Duplex)
NBASE-T with up to 2.5 Gbps
PCI Express x1 up to 4 Gbps
• Supports IEEE 802.3 / 802.3u / 802.3ab
• Supports PXE
• Supports Wake On LAN (WOL)
• Supports 9k Jumbo Frames
• LED indicator for link and activity
• Cable length with connectors: ca. 25 cm System requirements • Windows 10/11
• A free M.2 key M slot
• PC with one free slot Package content • Converter

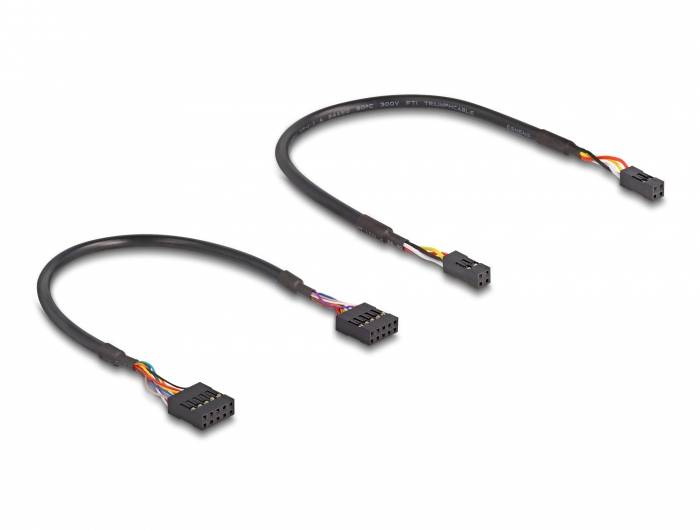

• 2 connecting cable

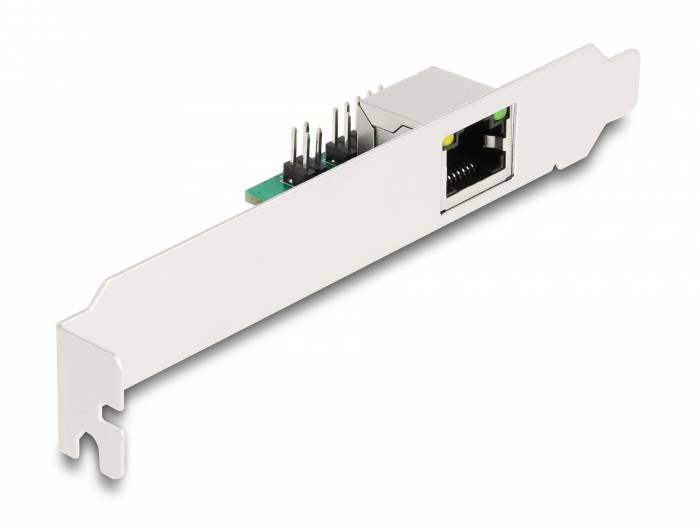

• Slot bracket
• Low profile bracket
• Driver CD
• User manual
