Delock DisplayPort 1.4 Splitter 1 x DisplayPort to 2 x HDMI MST
EAN:
Fabrikantnummer:
Artikelnummer:
Datasheet (PDF)
45 Stuk(s)
Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.Verkoop door Conrad ElectronicVerzending door Onlinekabelshop
Aantal
Totaal
€ 70,62
excl. btw
& € 5,95
Incl. 14 dagen retourrecht
U heeft al het beste aanbod voor uw hoeveelheid.
De optimale selectie voor de ingevoerde hoeveelheid wordt automatisch berekend, inclusief prijs (excl. verzendkosten) en levertijd.
Technische specificaties
- Soortnaam
Apparaat (koud) Aansluitkabel
- Aansluittype
HDMI
- Aantal aansluitingen A
1 x
- Aansluiting A
HDMI-stekker
- Aantal aansluitingen B
2 x
- Aansluiting B
HDMI-stekker
- Kabellengte
0 cm
- Kleur (specifiek)
Meerdere kleuren
- Uitvoering (kabel)
Aansluitkabel
- Kabeltoepassing
Apparaat (koud)
- Signaalstroomrichting
Unidirectioneel (uni)
- Gewicht
0.126
6.1 cm
- Breedte
4.9 cm
- Hoogte
1.2 cm
- Afm.
(l x b x h) 6.1 x 4.9 x 1.2 cm
- Toepassingsbereik
Monitor-/TV-adapters
- Model
Rond
- Toetsenbordlayout
QWERTZ, Duits
- Aansluitingen
USB-C stekker
- UKCA
Ja
Documenten en downloads
Datablad
Datablad 812521119 Delock DisplayPort 1.4 Splitter 1 x DisplayPort to 2 x HDMI MST
Omschrijving

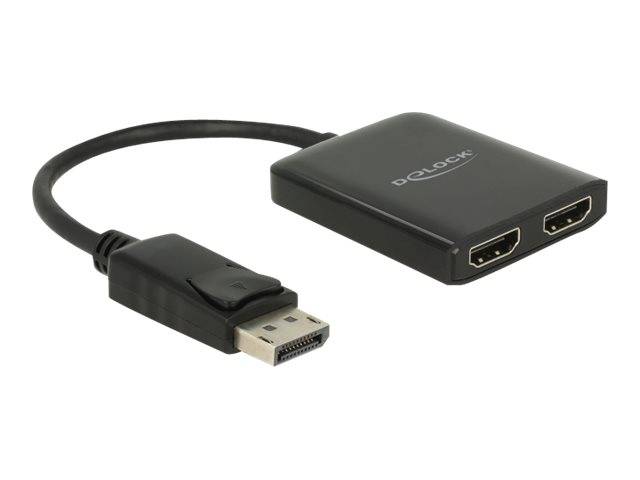

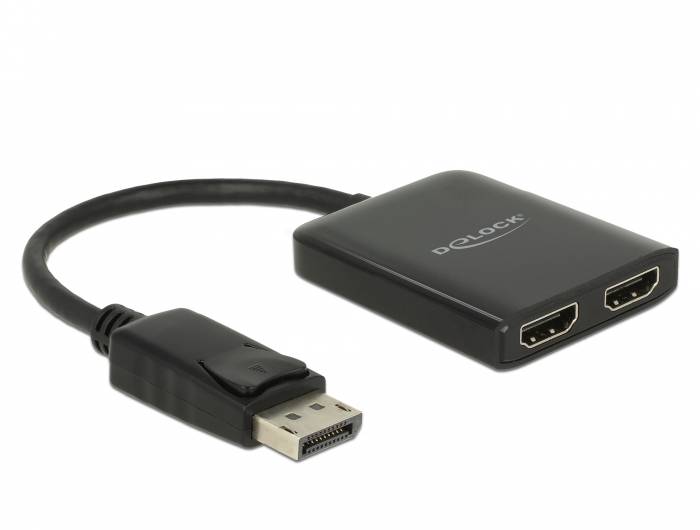

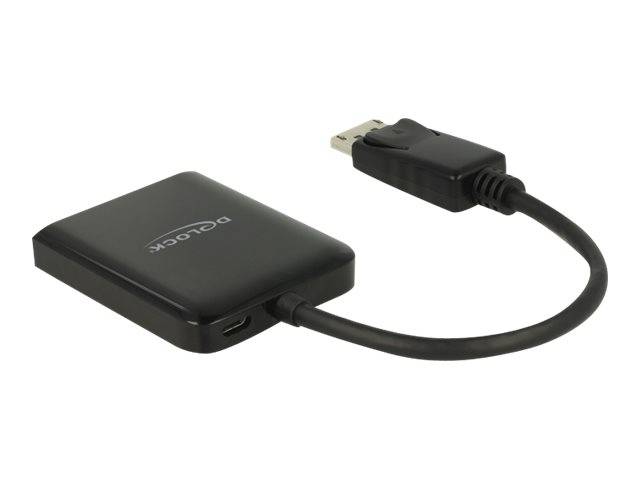

Description This splitter by Delock receives a DisplayPort signal from a PC or laptop and splits it to two connected displays. Thereby one DisplayPort connection can be used to operate two HDMI monitors.
Multi-Stream Transport (MST)
The product is a Multi-Stream Transport (MST) hub and supports the extended desktop configuration of DisplayPort. In Windows, the connected monitors are controlled individually, and can be combined into one large display. Specification • Connectors:
Input:
1 x DisplayPort male
1 x USB Type Micro-B female (5 V power supply)
Output:
2 x HDMI-A female
• Chipset: VMM5200
• DisplayPort 1.4 specification
• Active converter, Single- / Multi-Stream Transport Hub (SST / MST)
• Functions: Mirrored or Extended (Windows only)
• Supports Display Stream Compression 1.2 (DSC)
• Supports HDR
• Supports HDCP 1.4 and 2.2
• Maximum resolution (depending on the system and the connected hardware):
DisplayPort 1.4 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 60 Hz
DisplayPort 1.2 Multi-Stream Transport (MST):
2 displays: up to 3840 x 2160 @ 30 Hz
• Transmission of audio and video signals
• Colour: black
• Cable length incl. connectors: ca. 20 cm
• Dimensions (LxWxH): ca. 61 x 49 x 12 mm System requirements • Windows 8.1/8.1-64/10/10-64
• A free DisplayPort female
• Charger 1 x USB Type-A 5 V / 1 A Package content • DisplayPort Splitter
• USB power cable, length: ca. 0.5 m
• User manual
