Anycubic Photon Mono X

EAN:
Fabrikantnummer:
Artikelnummer:
Anycubic Photon Mono X-0
Anycubic Photon Mono X-0
Anycubic Photon Mono X-1
Anycubic Photon Mono X-2
Anycubic Photon Mono X-3
Anycubic Photon Mono X-4
Anycubic Photon Mono X-5
Anycubic Photon Mono X-6
Anycubic Photon Mono X-7
Anycubic Photon Mono X-8
Anycubic Photon Mono X-9
Anycubic Photon Mono X-10
1/11
Anycubic
Niet beschikbaar

Nieuw
Alle facturen van derden komen nu rechtstreeks van Conrad.

Totaal (€ 764,46 / Stuk)
€ 764,46
excl. btw
&
Gratis verzending*
Inclusief 14 dagen retourrecht
Juridisch probleem melden
  • Highlights & Details
  • Technische specificaties
  • Varianten
  • Documenten & Downloads
  • Omschrijving
  • Omvang van de levering
  • Vaak samen gekocht
  • Accessoires

Highlights & Details

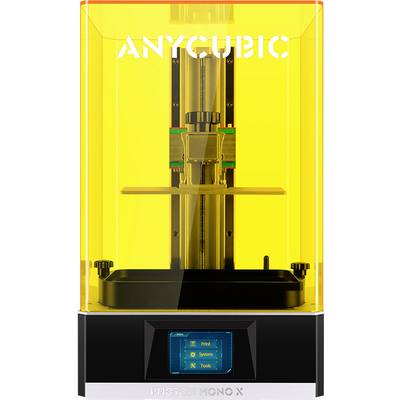

Anycubic Photon mono X MSLA 3D-printer

  • WiFi-module
  • Dubbele lineaire rail
  • Nieuwe matrix-lichtbron

Technische specificaties

Soortnaam

3D-printer

Printtechnologie

MSLA Maskierte Stereolithographie

Ondersteund filament

Resin

Drukbreedte (X) (max.)

192 mm

Drukhoogte (Y) (max.)

120 mm

Drukdiepte (Z) (max.)

245 mm

Afdrukbereik hoogte (z)

200 mm - 350 mm

Dikte druklaag (min.)

0.01 mm

Dikte druklaag (max.)

0.15 mm

Interfaces

USB-A 2.0

WiFi

Software

anycubicibotoftowichen Photon workshop

Kleur (specifiek)

Zwart

Geel

Breedte

270 mm

Hoogte

290 mm

Diepte

475 mm

Gewicht

11 kg

Stroomverbruik (max.)

120 W

Afm.

(b x h x d) 270 x 290 x 475 mm

Varianten(Alle gegevens zijn excl. btw en excl verzendkosten)

Ondersteund filament
Printtechnologie
Drukhoogte (Y) (max.)
Drukbreedte (X) (max.)
Afdrukbereik hoogte (z)

Anycubic Photon Mono X
Anycubic Photon Mono X

2385159


Dit product
Resin
MSLA Maskierte Stereolithographie
120 mm
192 mm
200 mm - 350 mm
Anycubic Chiron 3D-printer
Anycubic Chiron 3D-printer

2274523


TPU 87APLAABSAlle gangbare filamenten
FDM Fused Deposition Modeling
400 mm
400 mm
400 mm -
Anycubic Photon S MSLA 3D-printer
Anycubic Photon S MSLA 3D-printer

2274525


Photopolymer Harz
MSLA Maskierte Stereolithographie
65 mm
115 mm
150 mm - 200 mm
- Anycubic Kobra - AnycubicKBA0BK-Y-O
- Anycubic Kobra - AnycubicKBA0BK-Y-O

2705981


PLAABSPETGTPU 87A
FDM Fused Deposition Modeling
220 mm
220 mm
250 mm - 300 mm
Anycubic KBMA0BK-Y-O 3D-printer
Anycubic KBMA0BK-Y-O 3D-printer

2705982


PLAABSPETGTPU 87A
FDM Fused Deposition Modeling
400 mm
400 mm
400 mm -
Anycubic Kobra 2 3D-printers
Anycubic Kobra 2 3D-printers

3028649


PLAABSPETGTPU 87A
FDM Fused Deposition Modeling
220 mm
220 mm
250 mm - 300 mm

Documenten en downloads

Gebruiksaanwijzingen en veiligheidsinformatie

English

Gebruiksaanwijzingen en veiligheidsinformatie 2385159 Anycubic Photon Mono X

Omschrijving

Safe DesignPrinter will be immediately shut off if the top cover has been removed. This feature is turned off by default Anycubic Slicer SoftwareNew features are added to the software. Supports up to 8x anti-aliasing: Fast slicing, Hollowing, Split Model, Text Paste Fast Printing SpeedThe time of exposure is as low as 1.5-2 seconds, and the max print speed is 60mm/h, making printing speed 3X faster than the Photon. High Performance Z-axisThe Z-axis is supported by dual linear rails,stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of layer shifting. New Matrix UV Light SourceHigh quality quartz lamp bead and new matrix design for uniform UV light energy. 4K monochrome LCD delivers high-quality prints Anycubic APP Remote ControlRemote control of print operations,monitor printing progress,adjust the print settings UV Cooling SystemCooling device for stable printing performance and longer service life. Large Build VolumeA large build area for your 3D-printed creations :192mm(L)*120mm(W)*245mm(H) 8.9″ 4K Monochrome LCDMonochrome screens can last several thousand hours. Monochrome screens allow for very short layer exposure times for faster print times. Technical Specifications
System : ANYCUBIC Photon Mono X
Operation : 3.5 inch Touch Screen
Software : ANYCUBIC Photon workshop
Connectivity : USB
Technology: LCD-based SLA
Light-source: high-quality filament(wavelength 405nm)
XY Res.: 0.050mm 3840*2400(4K)
Z Axis Res.: 0.01mm
Layer Res.: 0.01-0.15mm
Printing Speed: MAX 60mm/h
Rated Power: 120W
Printer Size : 270mm(L)*290mm(W)*475mm(H)
Build Volume: 192mm(L)*120mm(W)*245mm(H)
Material: 405nm UV Resin
Net Weight: ~10.75kg

Toon minder

Uitvoering

  • Stabiele Z-as
  • 3,5 inch touchscreen
  • -markering in metalen resonantietank voor max. vulhoeveelheid
  • kwalitatieve netvoeding
  • gestructureerd platform voor betere hechting
  • details tot 75 micron
  • -technologie: SLA
  • -uitvoering: Voorgemonteerde
  • golflengte: 405 nm
  • resolutie van de Z-as: 0,01 - 0,15 mm
  • laagresolutie: 0,01 - 0,2 mm
  • afdruksnelheid: Max.
  • 60 mm/h nominaal vermogen: 120 W
  • aansluitmogelijkheden: USB-aansluiting/WiFi
  • -bestandsformaat: OBJ/STL
  • -display: 3,5 inch touchscreen

Omvang van de levering

  • Anycubic Photon mono X MSLA 3D-printer
  • Gebruiksaanwijzing.
